ENGLISH
Legend of symbols
Intended use
Description
Intended use and limits to use
Technical features

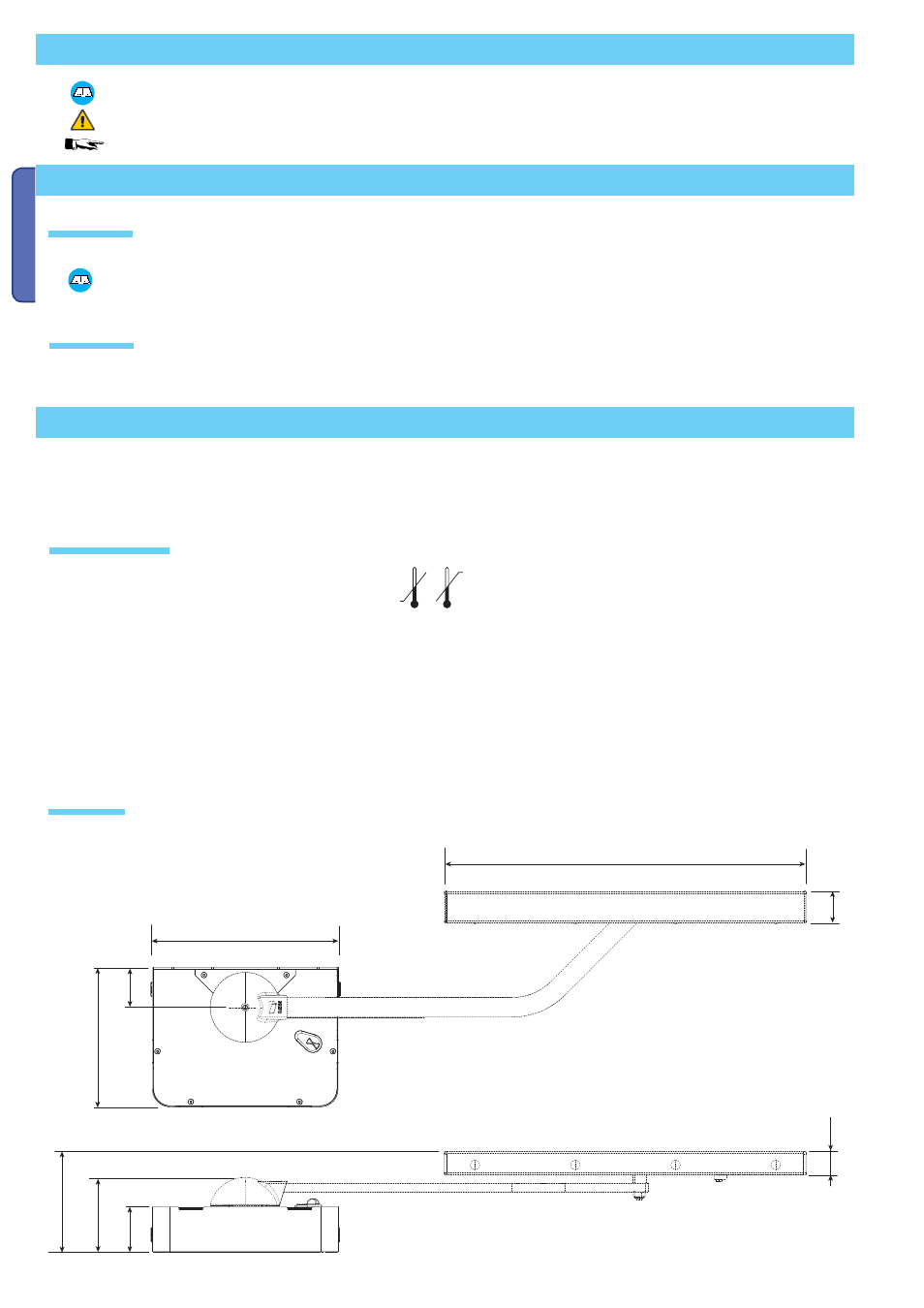

Dimensions
Limits to use
This symbol tells you to read the section with particular care.
This symbol tells you that the sections concern safety issues.
This symbol tells you what to say to the end-users.
The MYTO ME automation is designed to power swing gates for residential or apartment block use.
Installation executed in a manner other than as instructed in this technical manual are prohibited.
Max. gate weight 200 Kg, max. gate-leaf width 1.80 with a max. gate-leaf opening of 110° (see installations).
This product is engineered and manufactured by CAME cancelli automatici s.p.a. and complies with current safety regulations.
The automation is made up of a fixing / foundation casing, a gearmotor, a transmission arm with slide guide and slide rail.
Control panel power supply: 230 V AC 50/60 Hz
Motor power supply: 24 V DC 50/60 Hz
Max. draw: 10 A
Power: 240 W
Max Torque: 260 N
Gear ratio: 1/1396.5
Duty cycle: intensive use
Protection rating: IP67
Weight: 6,1 Kg
Insulation class: I
—#
—#
(mm)
