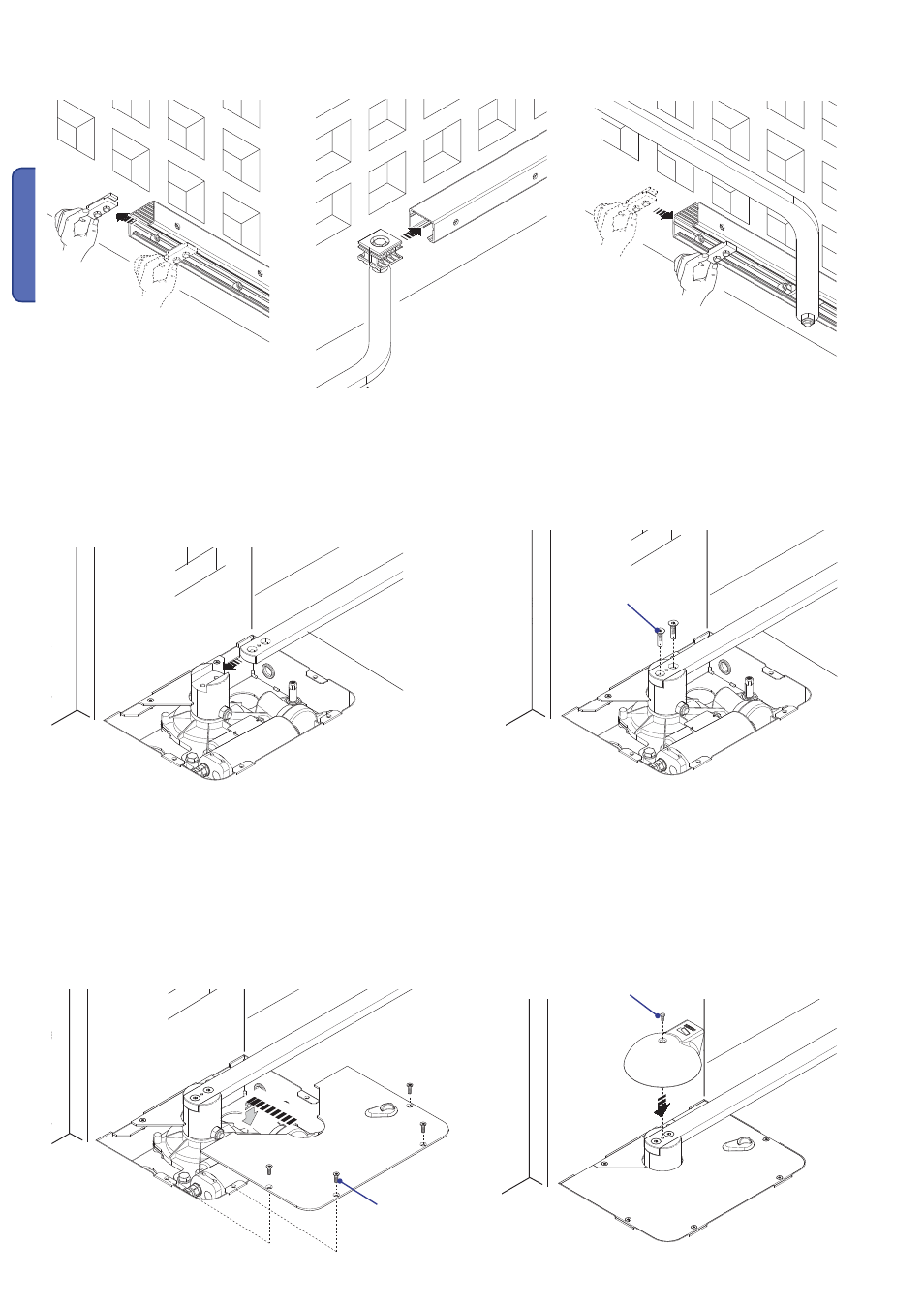

Position the transmission arm onto the bushing and secure it using the countersunk screws.
Secure the box cover using the countersunk screws. Secure the cap above the pin using a self-threading screw.
Remove the closing mechanical stop from the rail. Insert the slide guide and insert back the stop.
