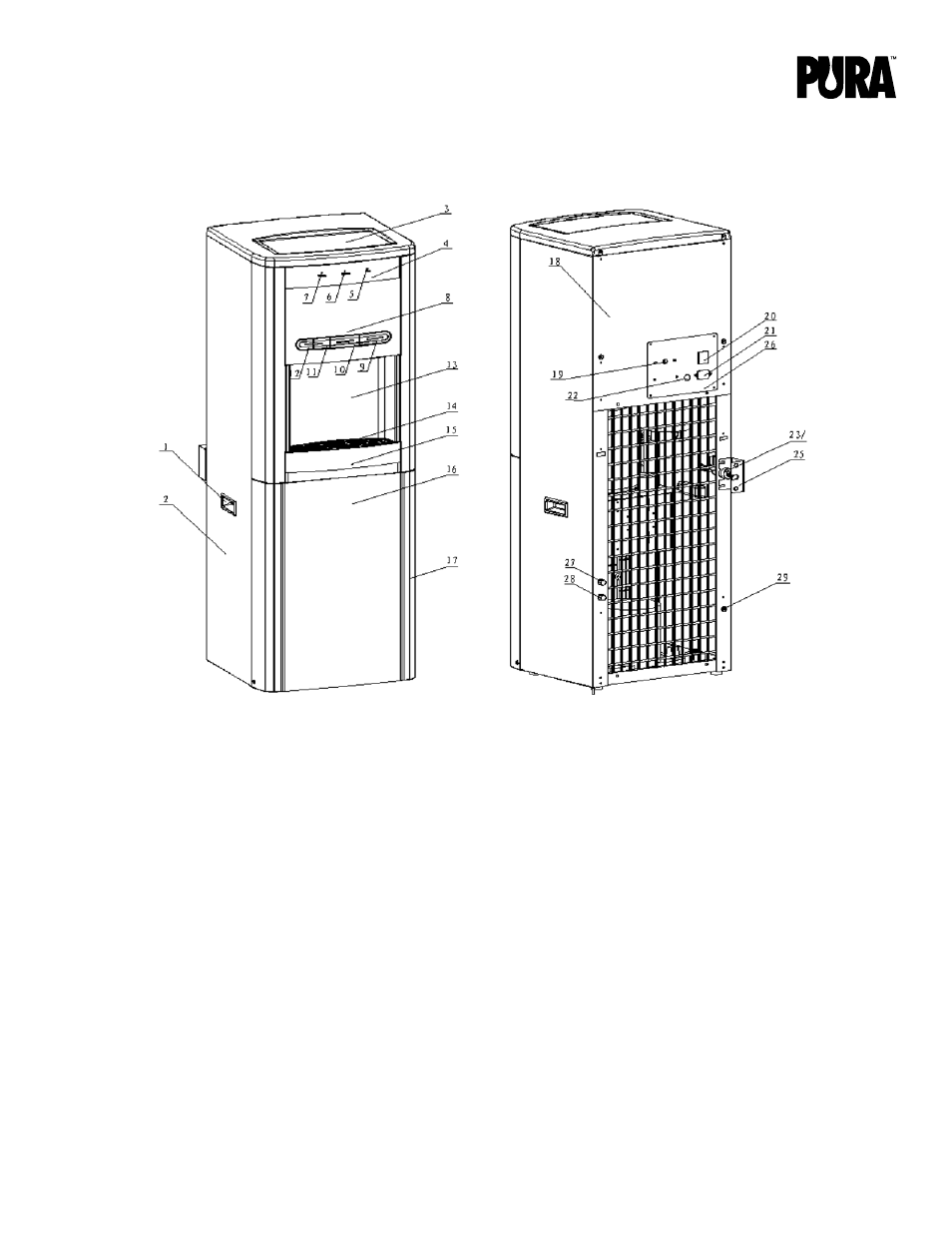

PURA ULTIMATE PARTS BREAKdOWN
1. Handle
2. Side Panel - 191019
3. Top Cover
4. LED label
5. Power Lamp
6. Chilling Lamp
7. Heating Lamp
8. Front Hatch Panel
9. Room Water Push Button
10. Cold Water Push Button
11. Hot Water Push Button
12. Hot Safety Push Button
13. Drip Tray Insert Panel - 191034
14. Drip Tray Grill - 191048
15. Drip Tray Body - 191032
16. Front Down Insert Panel
17. Front Down Panel - 191035
18. Back Panel
19. Cold Water Thermostat
20. Power Switch
21. Power Cord Socket
22. Fuse Holder
23. Solenoid Valve - 191001
24. JG Hose Adaptor
25. Inlet Solenoid Valve Cover Bracket
26. Back Access Panel to Electronics
27. Hot Water Drain
28. Cold Water Drain
29. Drain Port for RO System
Figure 2
