Faucet and Front Hatch Assembly
*BioCote ® items

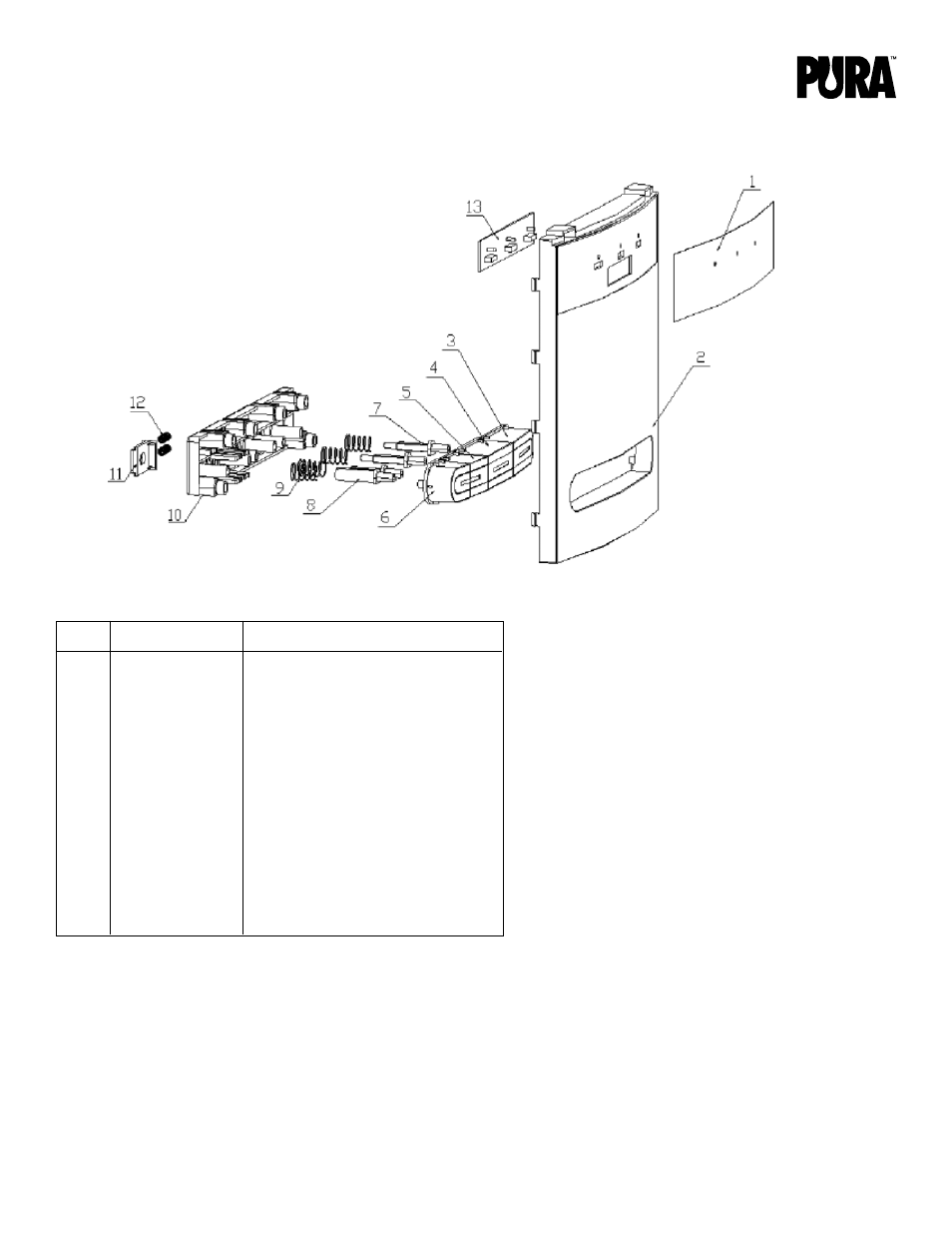

Figure 9: Faucet & Front Hatch Assembly
No. Part Number Part description
1* Lens Cover, LED Display
2* Panel, Front Hatch
3* 191051 Faucet, Push Button, Room
4* 191051 Faucet, Push Button, Cold
5* 191050 Faucet, Push Button, Hot
6* Faucet, Push Button, Hot Unlock
7 Faucet Push Pin
8 Hot Safety Push Pin
9 Faucet Push Spring
10 Faucet Fixing BKT
11 Hot Water Safety Lock
12 Hot Water Safety Switch Spring
13 191002 Basic LED PCB
