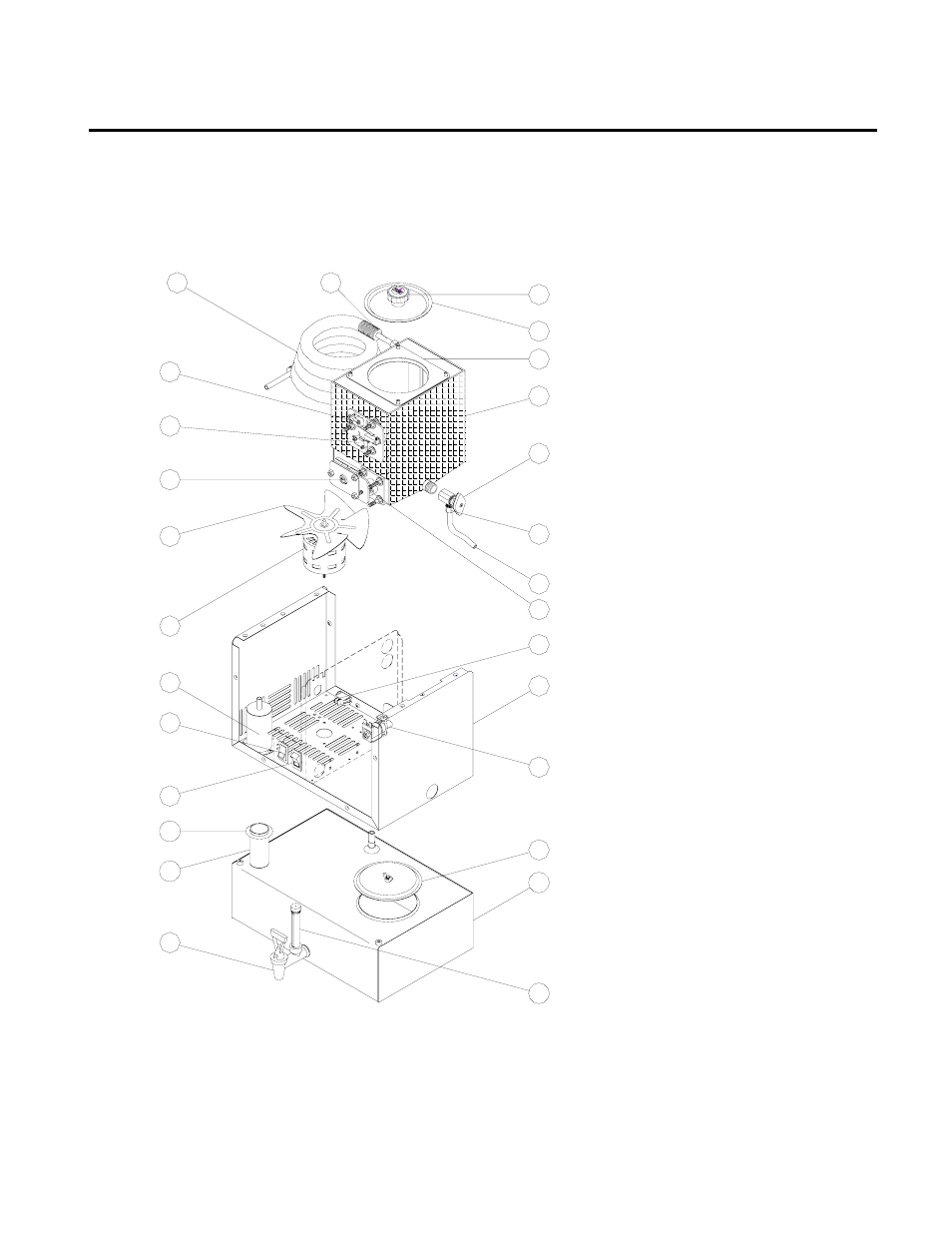

PWS 5-3 PRINCIPAL COMPONENTS
13
8
11
10
9
7
6
5
3
2 1
23
15
16
19
20
21
22
24
25
27
26
1. Gas Vent
2. Cooling Coil
3. Micro Switch (water)
4. Micro Switch (power)
5. Reset Switch
6. Fan Blade
7. Fan Motor
8. Charcoal Filter Cover
9. Fan Switch
10. Power Switch
12. Charcoal Filter Canister
14. Water Sight Gauge
13. Distiller Water Faucet
15. Water Storage Tank
16. Storage Tank Lid
17. Solenoid Valve
18. Main Distiller Body
19. Water Switch
20. Heating Element
21. Impurities Drain Tube
22. Compression Nut
23. Drain Valve
24. Boiler Tank
17
18
4
25. Boiler Tank Lid Gasket
26. Boiler Tank Lid
27. Lid Knob
14
12
11. O-Ring
