4.0. GROUNDING INSTRUCTIONS
The GB/JetLine
®
blowers and Blo-Vac™ systems require a
120 V, 60 Hz, 15 A circuit; with the exception of the B3000
power unit which requires a 120 V, 60 Hz, 30 A circuit; and
must be grounded. If the power unit should malfunction or
breakdown, grounding provides a path of least resistance for
the electrical current to reduce the risk of electrical shock.
These power units are equipped with a cord that has a
grounding conductor and grounding plug. The plug must be
inserted into an outlet that is properly grounded in
accordance with all codes and ordinances. See Figure 1.
CAUTION: Improper connection of the equipment
grounding conductor can result in a risk of electrical
shock. Check with a qualified electrician or service
person if you are in doubt as to whether the outlet is
properly grounded. Do not modify the plug provided with
the Blo-Vac™. If it will not fit the outlet, have the correct
outlet installed by a qualified electrician.
5.0 TECHNICAL SPECIFICATIONS
6.0 PRODUCT DESCRIPTION
GB/JetLine
®
Blowers and Blo-Vac™ systems are designed to
provide a convenient means of installing pull line in a “sealed”
conduit. “Sealed” conduit for this purpose is considered EMT
conduit with compression type couplings, rigid conduit with
threaded joints, or PVC conduit with adhesive bonded joints.
Conduit with set screw type couplings does not effectively
seal joints and substantial air or vacuum loss occurs making it
difficult to maintain pressure or vacuum to place a line in
the conduit.
Blower Systems
GB/JetLine
®
supplies two blower systems; the B4500K Line
Shooter™ (for fishing from
1
⁄
2
" through 4" trade size conduit)
and the B60 Super Blower™ for heavy duty work in conduit
from 2
1
⁄
2
" through 6". See Figures 2 and 3.
B4500K Line Shooter
™
The B4500K Line Shooter™ conduit fishing kit is equipped
with a light weight 1261 Power Unit, three foot hose, shoulder
strap, power saver line packages, foam line carriers,
inflatables and accessories for fishing conduit from
1
⁄
2
" through
4". Bulk pull line is not included with the kit.
3
Grounding Pin
Grounded
Outlet Box
Adapter
Metal
Screw
Tab for
Grounding Screw
Grounding
Blade

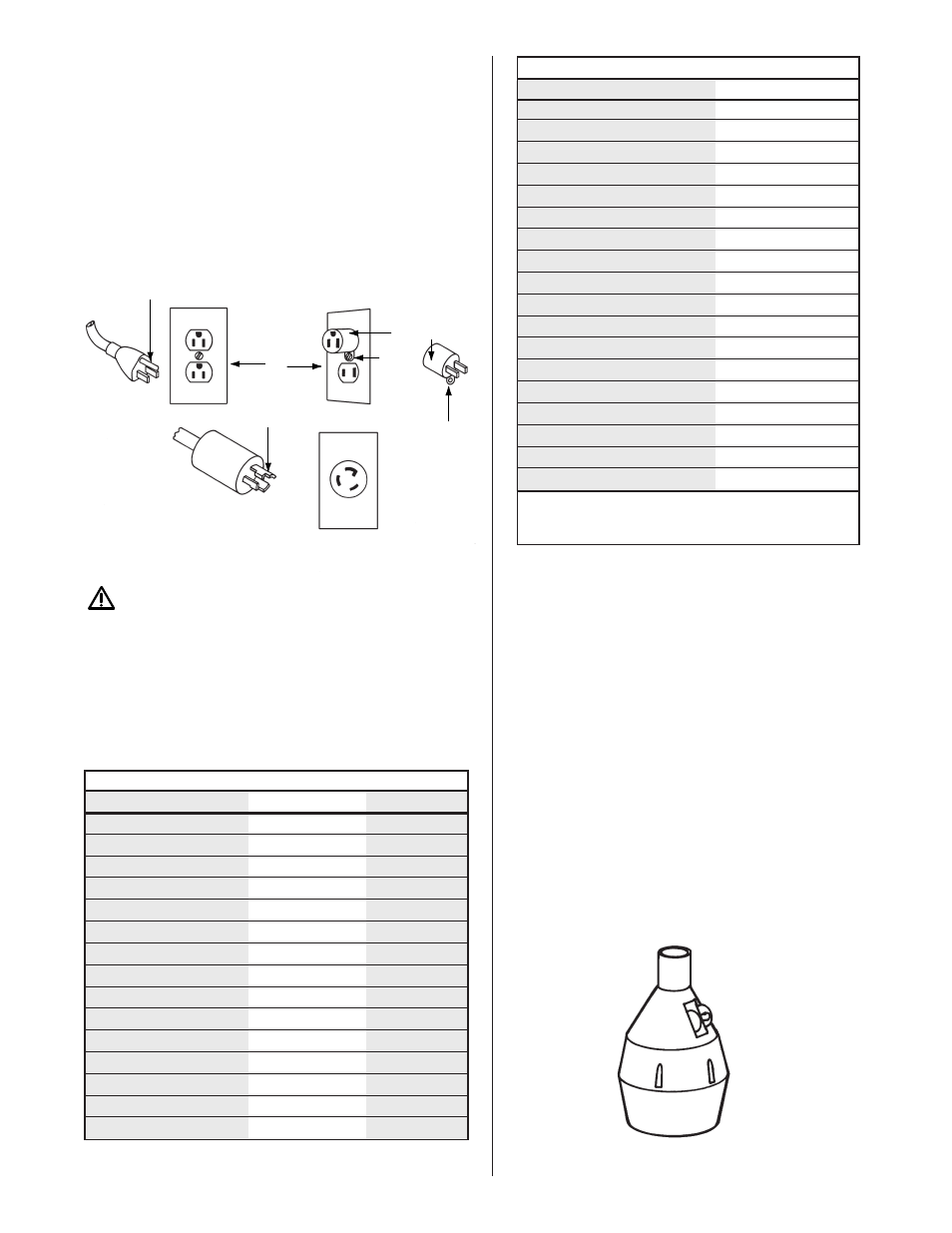

Figure 1. Grounding Methods
125 V
30 A
NEMA
L5-30R
GB/JetLine
®
Blowers
B4500K
B60
Power Unit
1261
B3000
Voltage
120
120
Frequency
60 Hz
60 Hz
AMPS
7.50
23
In. Water Lift (sealed)
85-92
85-92
P.S.I.
3.31
3.31
CFM
90
270
No. of Motors
1
3
Impeller Stages (Fans)
2
2
Thermal Overload
Yes
Yes
Motor Type (Cooling)
Flow Through Flow Through
Handling
Portable
Portable
Weight
7.5 lb
35 lb
Hose Dia. (Inch)
1
1
⁄
2
2
1
⁄
2
Length (Feet)
3
25
GB/JetLine
®
Blo-Vac™
BV208DA
Power Unit
1523
Voltage
120
Frequency
60 Hz
AMPS
13.8
Inches Water Lift (sealed)*
130-135
P.S.I.*
4.86
CFM
92
No. of Motors
1
Impeller Stages (Fans)
3
Thermal Overload
No
Motor Type (Cooling)
By-Pass
Handling
Cart
Recovery Cap. (Gals)
9**
Height with Cart (Inch)
41
Motor Brush Life (Hours)
750
Weight
50 lb
Hose Dia. (Inch)
1
1
⁄
2
Length (Feet)
8
* Will vary with voltage and atmospheric conditions.
** When using recovery compartment and tool storage
compartment together.
Figure 2. 1261 Blower
