8.0 Maintenance
The Blowers and Blo-Vac™ systems should require very little
maintenance. If the unit should require service, see
instructions below.
Blower overheating occurs when attempting to blow line in
blocked conduit or a duct filled with water having a head
greater than the water lift capability of the blower. See 5.0
Technical Specifications, GB/JetLine
® Blowers Table.
The 1261 and B3000 Blowers have an automatic thermal
overload switch built into the motor. If overheating occurs, the
switch will turn the motor off. After a cool-down period of 15 to
30 minutes, the motor will automatically re-set. The motor can
be restarted.
Blo-Vac™ power units are equipped with a perforated filter
screen, located on the under side of the motor compartment.
Occasionally the screen becomes clogged with lint and dust
and it should be cleaned to maintain maximum air flow.
Vacuuming Dirt and Water — Each Blo-Vac™ comes with a
cloth filter bag that must be used when vacuuming dirt and
water. Use as follows:
1. Release the latches securing the top and center together.
2. Remove the filter bag from the bottom tool storage
section. Slide the filter bag onto the intake canister
located on the bottom of the motor. The filter bag
prevents dust from entering the motor. Dust and dirt will
damage the motor and cause premature failure.
3. After use, clean the filter bag by shaking off the excess
dirt and store the clean bag in the lower compartment.
4. The Blo-Vac™ is equipped with a ball float to prevent
water from entering the motor. If the ball float seals the
motor inlet, the motor will sound different from usual.
Immediately turn the unit off. Empty the recovery section
and check the inlet screen for lint and dirt. Clean and
reassemble the Blo-Vac™ sections.
9.0 Jetline ® Systems
9.1 B4500K Line Shooter™ Blowing System
Handles conduit 1 ⁄ 2 " to 6".
• Includes lightweight Line Shooter™ hand-held blowgun and
flexible coupling extension for hard-to-reach conduit
openings.
• Compact #1261 blower unit delivers a powerful punch, yet
carries hands-free with shoulder strap. Durable high-impact
housing stands up to job site abuse.
• Exclusive line drag key controls line tension to prevent
overblowing and line pile-up.
• Includes 1,000' of 100 lb-test Poly-Pull™ line.
• Handy tool box holds entire system.
• Line Keeper™ slotted disc securely retains line in housing;
prevents lost lines.
• Specifications: 3.25 max. psi; 90 cfm; 1.2 hp motor.
• 115 V AC; 7 A.
B26 Dial-A-Line™ Body
BV24 Seal-Off
Conduit
Pull Line
Inflatable ®
12568 Hose Assembly

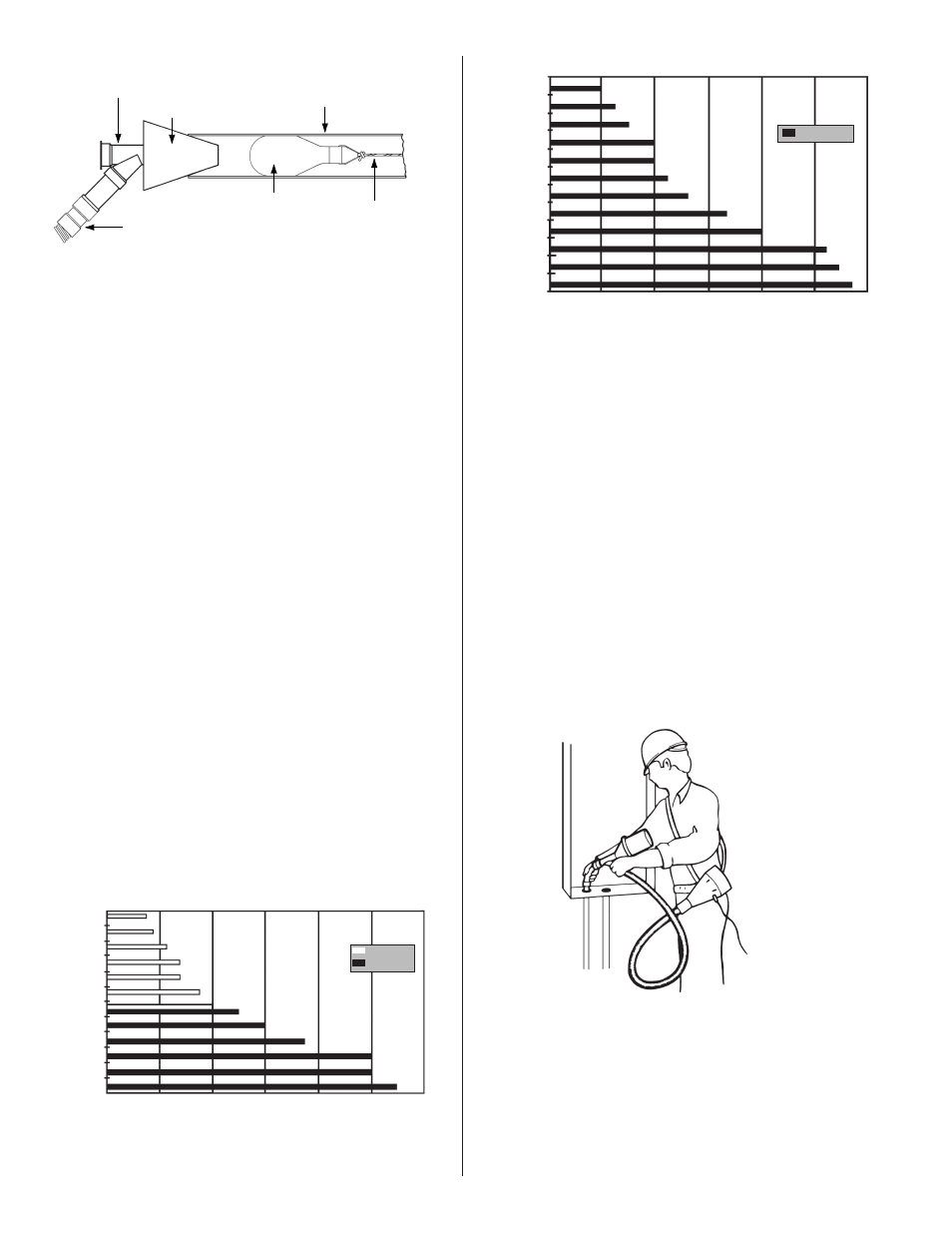

Figure 29. Vacuuming Line in Conduit
with the Inflatables ®
Blower Application
Blo-Vac™ Application
1 ⁄ 2 "
3 ⁄ 4 "
1"
1 1 ⁄ 4 "
1 1 ⁄ 2 "
2"
2 1 ⁄ 2 "
3"
3 1 ⁄ 2 "
4"
5"
6"
B4500K
B60
BV208DA
0 200 400 600 800 1000 1200
0 200 400 600 800 1000 1200
Distance
Size Conduit
Distance
1 ⁄ 2 "
3 ⁄ 4 "
1"
1 1 ⁄ 4 "
1 1 ⁄ 2 "
2"
2 1 ⁄ 2 "
3"
3 1 ⁄ 2 "
4"
5"
6"
Size Conduit
Figure 30. Blowing Line in Conduit
with the Line Shooter™ Blower System
10
