Smart-UPS 2200/3000 VA 100/120/230 VAC Tower User Manual 5
Start Up
Start Up
Connect Equipment and Power to the UPS
1. The UPS features a transient voltage surge-suppression (TVSS) screw located on the rear panel, for
connecting the ground lead on surge suppression devices such as telephone and network line protectors.
Prior to connecting the grounding cable, ensure that the UPS is NOT connected to utility or battery
power.
2. Connect equipment to the UPS.
3. Add optional accessories to the Smart-Slot.
4. Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension cords.
– 230 V models: The utility power cord is supplied in the UPS literature kit. Prior to connecting the
utility power, connect the ground lead (optional) to the TVSS screw.
5. 120 V models: Check the SITE WIRING FAULT LED located on the rear panel. It will be
illuminated if the UPS is plugged into an improperly wired utility power outlet, (see Troubleshooting).
6. Turn on all connected equipment. To use the UPS as a master on/off switch. Be sure all connected
equipment is switched on.

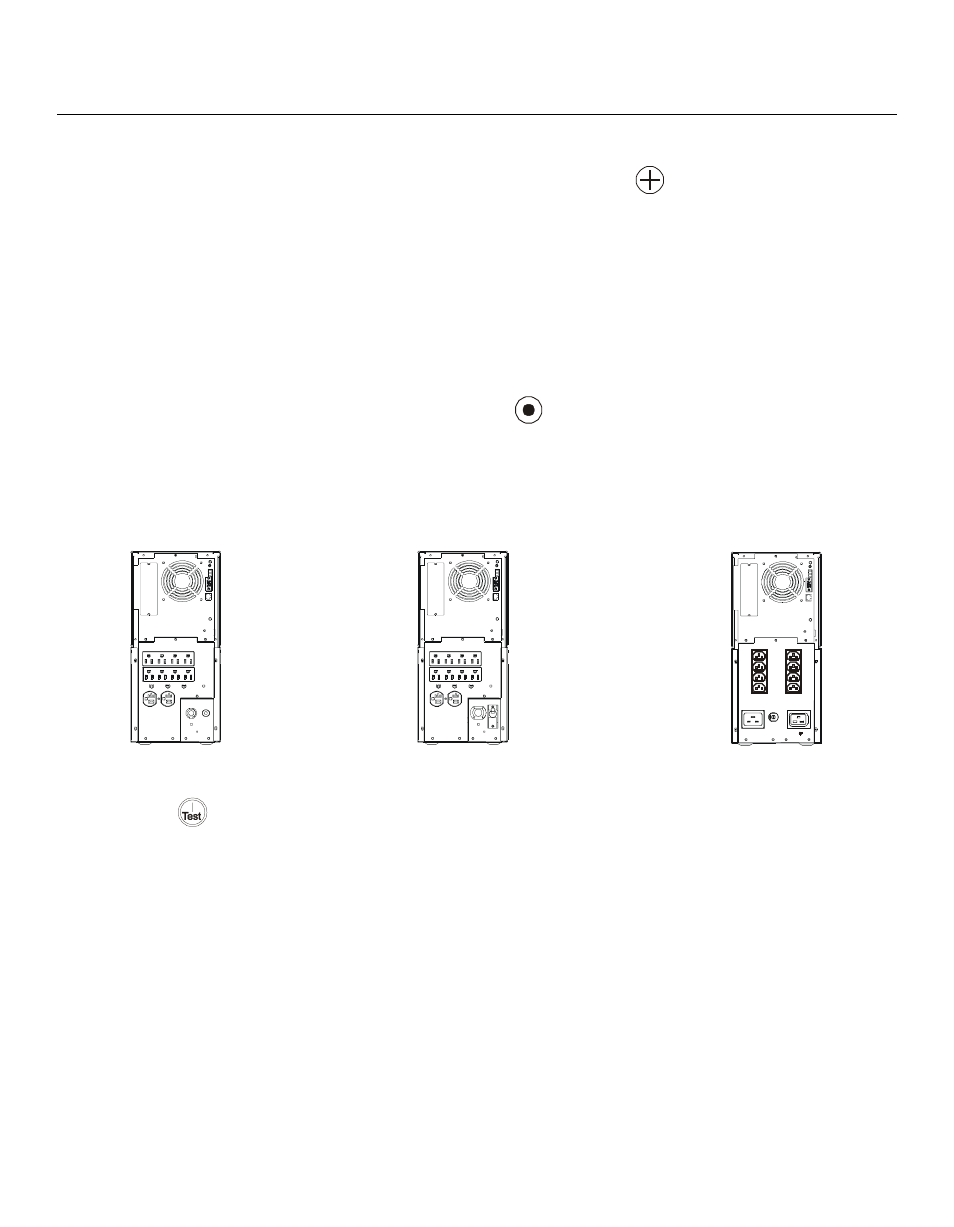

Rear Panels
Start the UPS
1. Press the button on the front panel to start the UPS.
– The battery charges to 90% capacity during the first four hours of normal operation. Do not
expect full battery run capability during this initial charge period.
– Refer to the APC Web site, www.apc.com for battery runtimes.
2. For optimal computer system security, install PowerChute Smart-UPS monitoring software.
100/120 VAC 2200 VA 100/120 VAC 3000 VA 230 VAC 2200/3000 VA
