Installation/Operation Supplement
23 F232148 (EN) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
WE-6 Computer
1. Turn on main power source (circuit breaker).
2. Use left hand to press and hold the door unlock
button on top of the door box cover. Use right
hand to turn door handle counterclockwise and
open door. Refer to Figure 15.

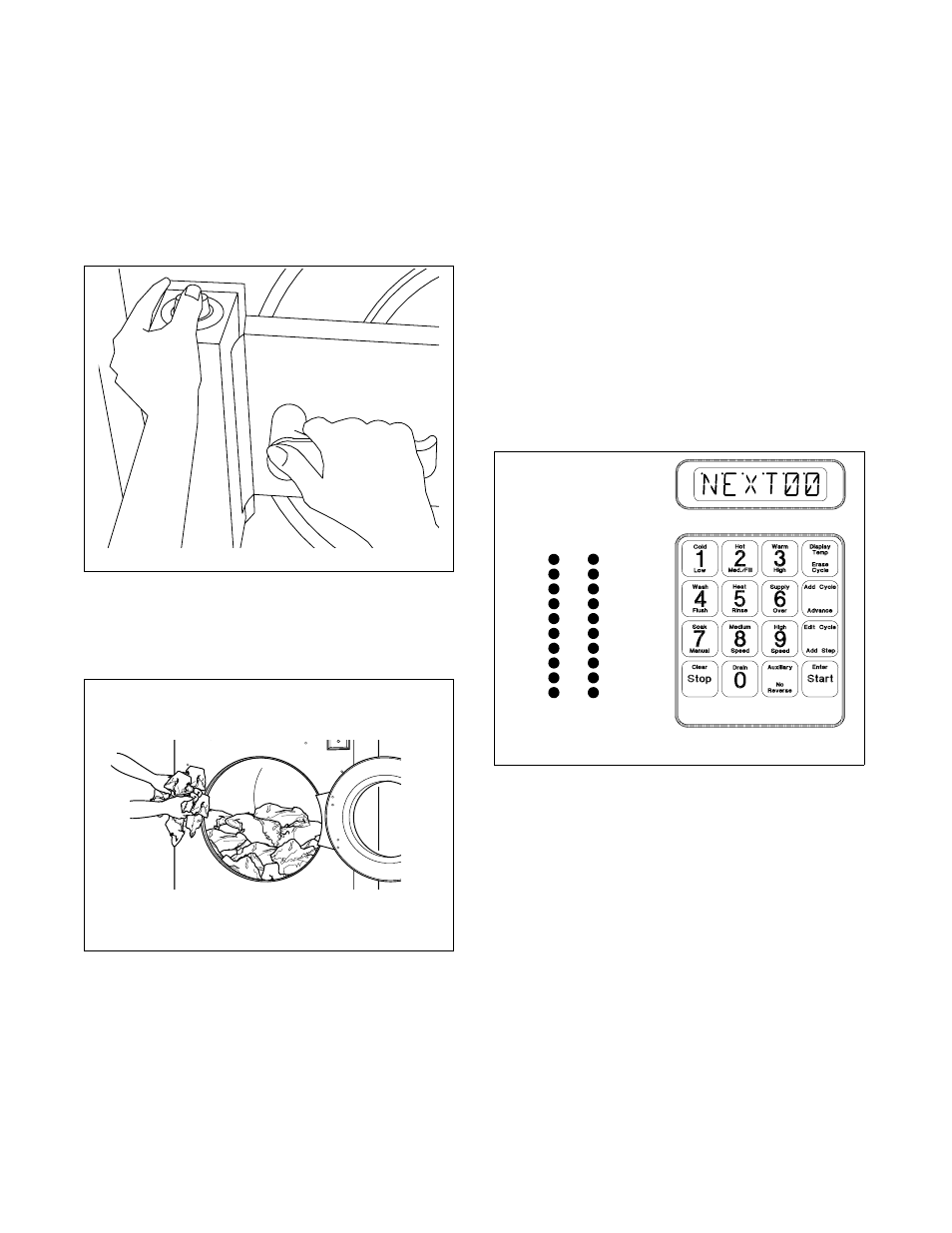

Figure 15
3. Load to capacity whenever possible. DO NOT
OVERLOAD. Refer to Figure 16.
Figure 16
NOTE: For models with tilt, refer to “Loading
Using Tilt Option” at the end of this section.
4. Close door and turn handle clockwise until it
locks.
5. Add powder supplies to supply dispenser.
NOTE: Liquid supplies may be injected directly
into the supply dispenser by an external chemical
supply dispenser. Refer to Installation and
Programming manuals.
6. Select wash cycle from cycle charts located in the
Programming section of the Programming
Manual.
7. Enter the cycle number, 01-39, on the keypad.
Refer to Figure 17.
Figure 17
8. Press the START key. Refer to Figure 17.
9. When cycle is complete and the display reads
“DONE”, open door by pressing and holding the
door unlock button.
10. Unload.
U153R
U003IE1A
U153R
U003IE1A
U152R
Output Indicators
Supply 1
Supply 2
Supply 3
Supply 4
Supply 5
Cold Fill
Hot Fill
Spare
Spare
Signal
Heat
Forward
Reverse
Dist. Speed
Med. Speed
High Speed
Unlock Door
Drain Closed
Auxiliary 1
Auxiliary 2
