Ipt122 series, Caution – Brooks Instrument IPT122 2 Indicating Pressure Transmitters" User Manual
Page 20
Installation and Operation Manual
X-PR-IPT122-eng
Part Number 541B151AAG
April, 2010
4-2
Section 4 Maintenance
IPT122 Series
4-2 Disassembly
DO NOT twist the plug and DO NOT pull by the wires.
CAUTION
!
Under normal conditions, it will not be necessary to disassemble the IPT.
If however disassembly is necessary, use the following steps for
disassembling the device:
(See Figure 4-1 Typical Assembly/Disassembly and Figure 3-1 IPT122
Inside Views Types 1 Through 9).
1.
Remove three (3) screws on back of gauge and lift electronic
assembly straight off.
2.
Remove the six-pin sensor plug straight up.
3.
Remove three (3) standoff halves.

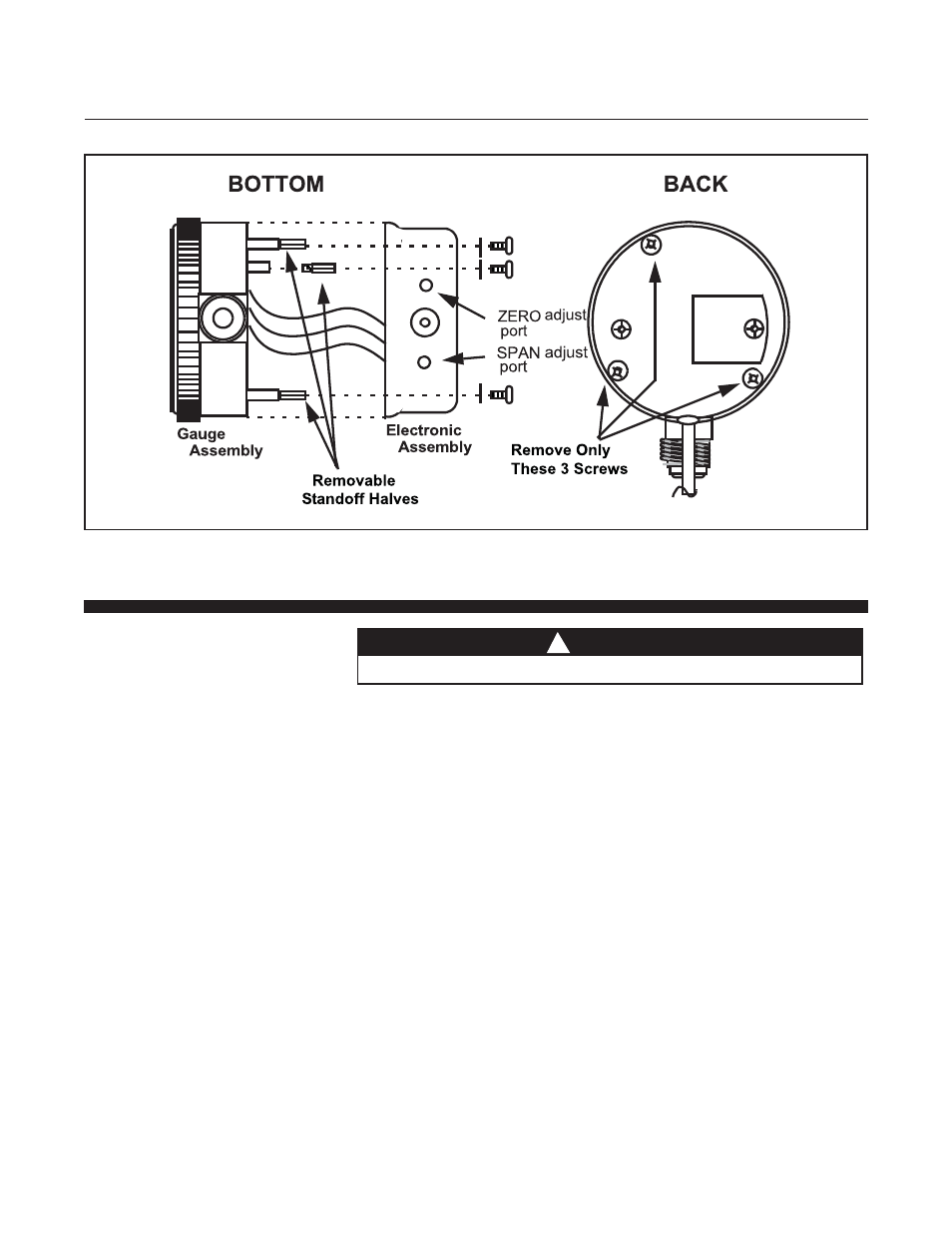

Figure 4-1 Typical Assembly/Disassembly
