Emtek EMTouch Classic Style Electronic Keypad Leversets Locksets (Adjustable Latch) User Manual
Page 5
5

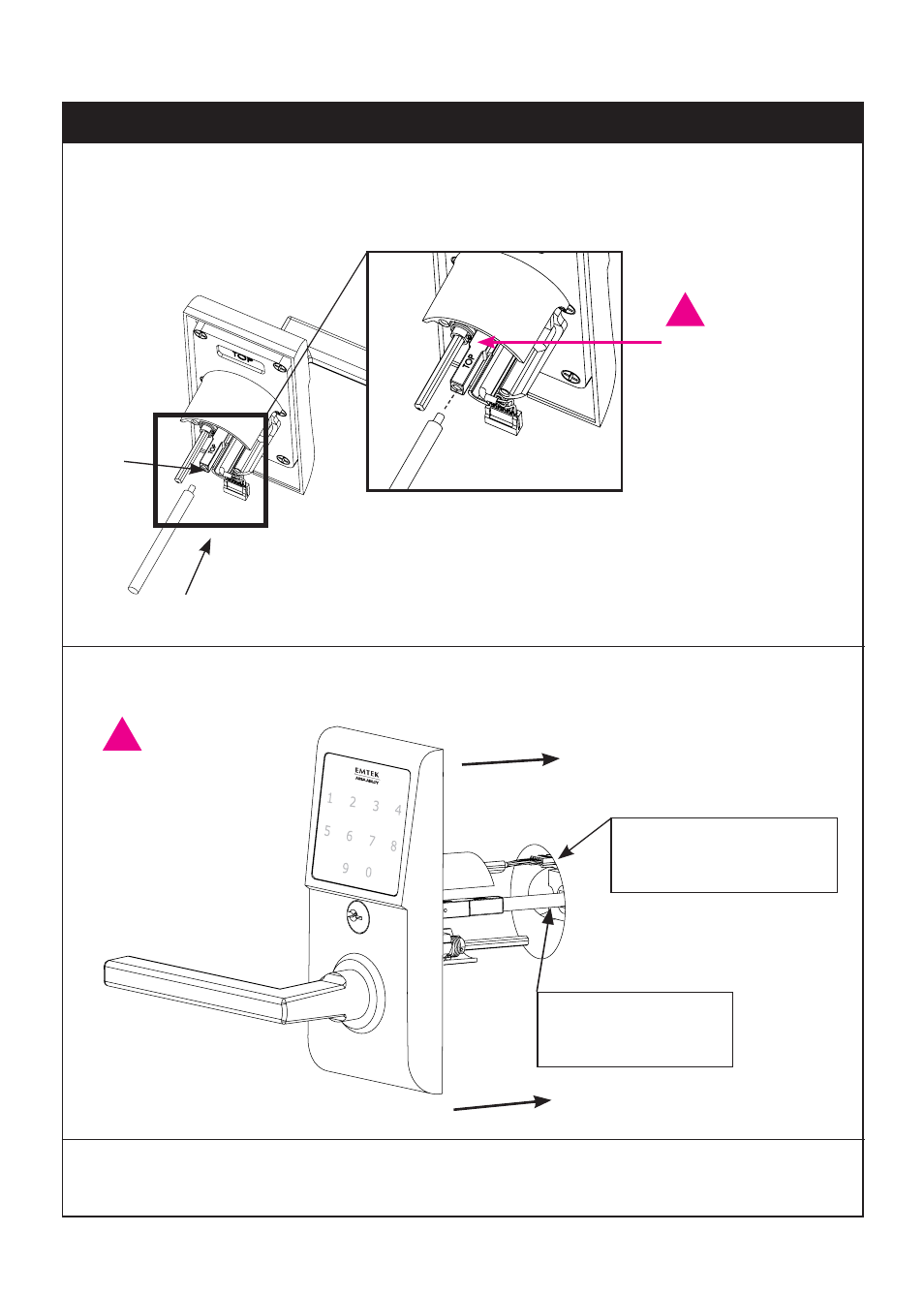

3. Install Outside Trim Plate Assembly
Step 1: While holding Outside Trim Plate Assembly, Press the Plastic Extender (A) into
end of Spindle Shaft (B). The Shaft is properly aligned when the marking ‘TOP’ can be
seen from an overhead view.
Step 2: Position the Outside Trim Plate Assembly through the bore hole.
Step 3: With the Outside Trim Plate Assembly flush to the door, REMOVE the Plastic
Extender.
Feed wire harness
through the bore hole.
B
!
A
Fit Plastic Extender
through latch.
ONCE POSITIONED,
OUTSIDE TRIM PLATE
ASSEMBLY REQUIRES
SUPPORT.
THIS SIDE ON TOP.
!
