3
2 3/8” or 2 3/4”
Backset
2 1/8” Dia
Bore
1/8” Deep
2 1/4”
1 “
1” Diameter
Edge Bore

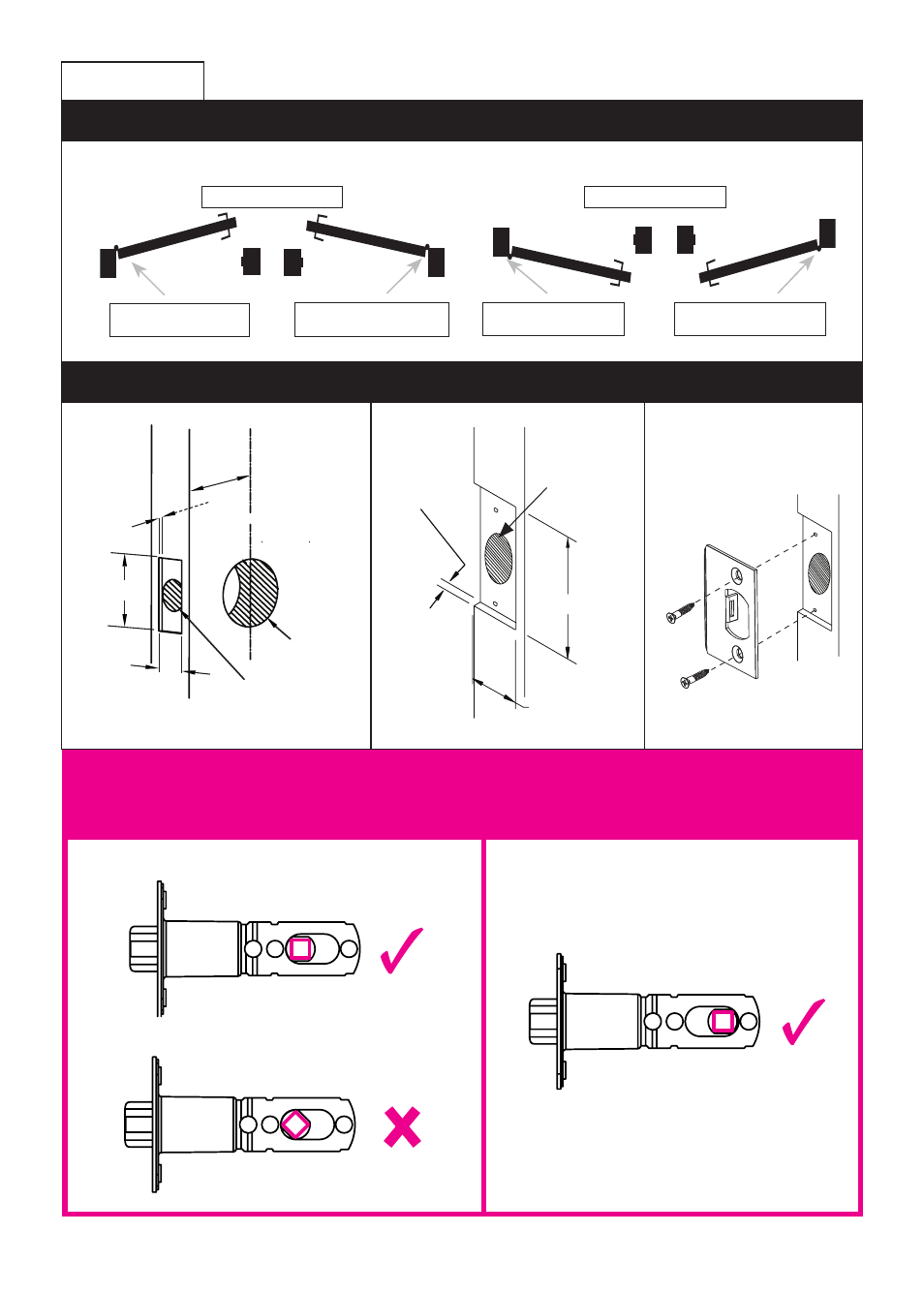

2. Door Prep 3. Door Jamb Prep
1. Confirm Handing
HANDING OF DOOR IS ALWAYS DETERMINED FROM THE OUTSIDE
Hinge is on the left.
Door is Left Hand (LH).
Hinge is on the right.
Door is Right Hand (RH).
Hinge is on the right.
Door is Right Hand (RH).
Hinge is on the left.
Door is Left Hand (LH).
In-Swing Doors Out-Swing Doors
outside outside
Preparation
1” Deep,
1” Diameter
Edge Bore
1/16” Deep
1-1/8"
2-3/4" 2 1/4”
1 1/2”
Fasten Strike Plate using
two #8 x 3/4” Wood Screws
(item #6).
4. Install Strike Plate
23/8” Backset
Correct Hub Position
23/8” Backset
Wrong Hub Position
23/4” Backset
Correct Hub Position
IMPORTANT!
CHECK LATCH HUB POSITION BEFORE INSTALLING
