Emtek Passage Privacy Bright Handles User Manual
Emtek For Home
Two AA batteries provided
2-3/8"
or
2-3/4"
1/8"
Deep
2-1/4"
1"
1" Dia.
Edge Bore
2-1/8" Dia.
Bore
Rev. 07/21/05
INE-BRITEHANDL

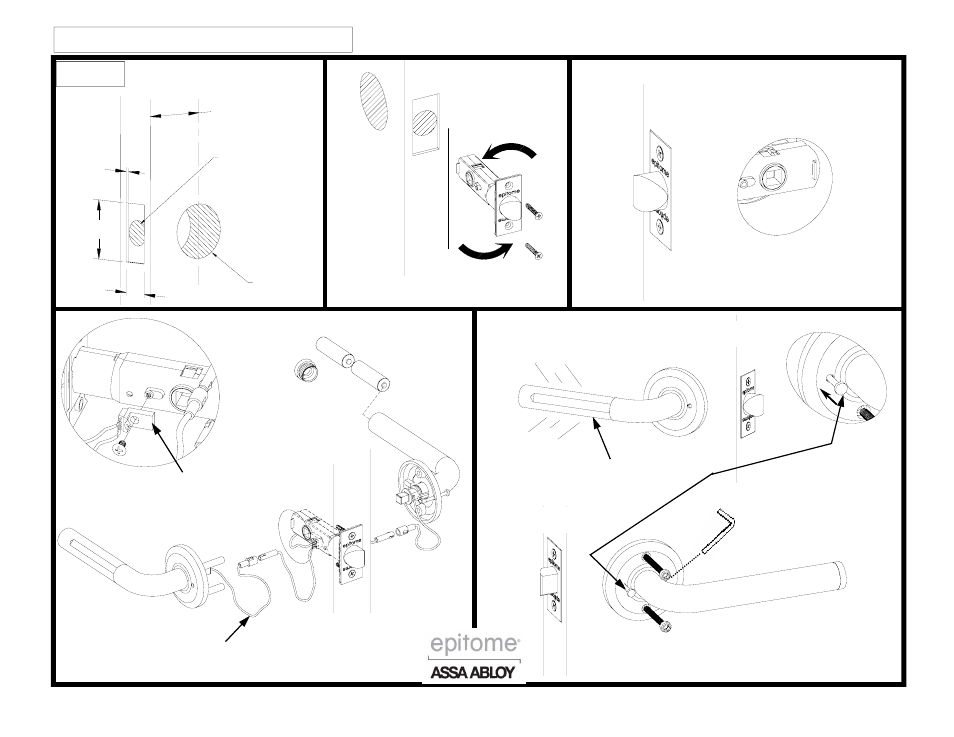

Install latch, rotate latch as required
Screw switch onto latch, facing outside of door
Tuck all wires toward rear of latch
Outside of Door
Inside of Door
AFTER INSTALLATION
Tighten Set Screws with Allen
Wrench
Locking door will light up outside handle
Installation Instructions - Epitome Brite Handle
Door Prep.
Outside of Door
