Emtek Single Hook User Manual
Emtek For Home

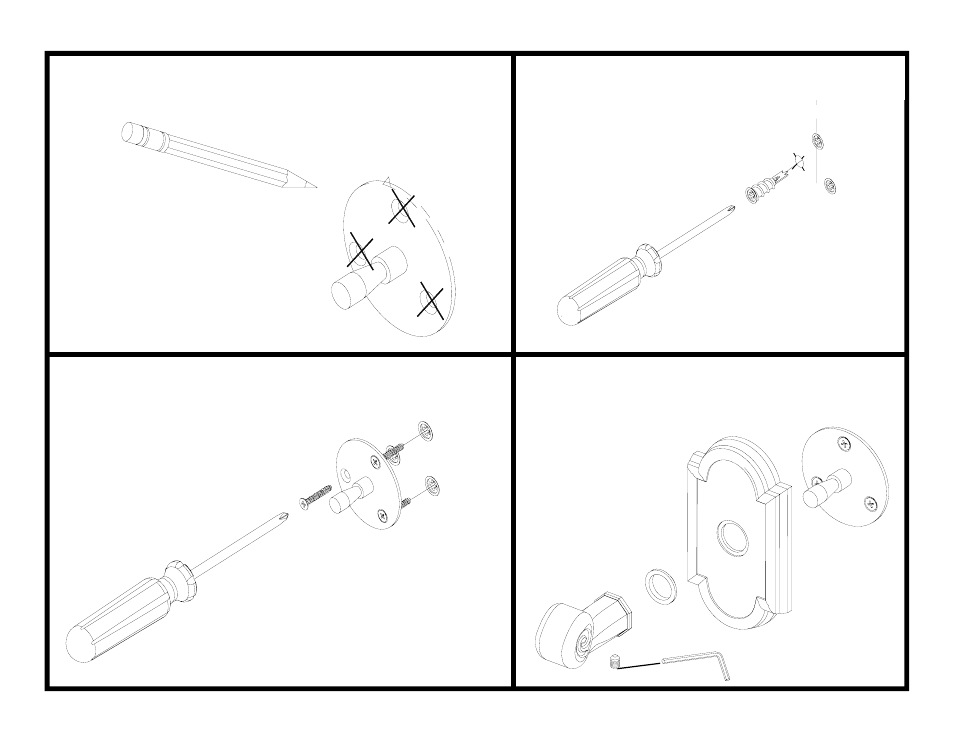

Use mounting plate as a template to mark location of screw holes.
Hook – Installation Instructions
IN4-SNGHOOK
REV. 07/26/06
Place mounting plate on top of the Screw Anchors and install it with the
sheet metal screws provided.
Slip trim plate and hook over the stud on the mounting plate.
Tighten set screw at base of post with allen wrench provided.
Trim plate varies
depending on style.
EMTEK
Use the marks as a guide to install three Screw Anchors
(provided) into the wall.
