Emtek Single Cylinder Deadbolt User Manual
Installation guide, Single cylinder deadbolts
2 3/8” or 2 3/4”
Backset
2 1/8” Diameter
Bore
1/8” Deep
2 1/4”
1 “
1” Diameter
Edge Bore

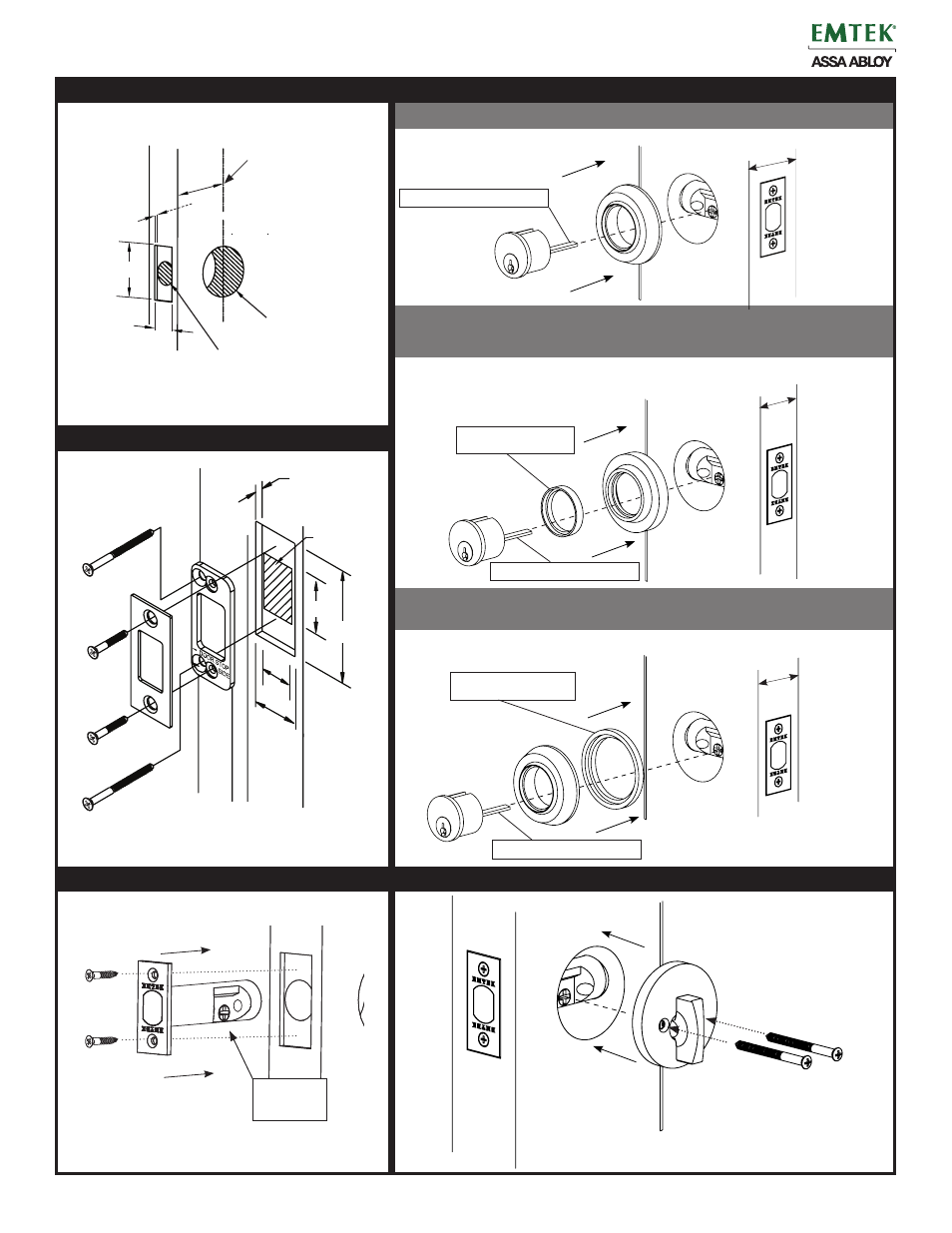

1. Door Prep
2. Door Jamb Prep
3. Install Latch
Crosshairs
at bottom.
Installation Guide -
Single Cylinder Deadbolts
Install Deadbolt on regular door.
Install
Deadbolt
on thin door. Extension Ring is provided
for the
following
products
:
8454, 8466, 8468, 8458, 8459, 8467, 8469, 8475
Install Deadbolt on thin door. Extension Collar is provided for the
following products: 8455, 8464
5. Inside Installation
Extension Ring
Door Thickness: 1 3/8” - 1 3/4”
Door Thickness: 1 3/4” - 2 3/4”
Door Thickness: 1 3/8” - 1 3/4”
Extension Collar
2-3/4"
3/16” Deep
2 3/4”
1 1/8”
3/4”
11/4”
11/4” From
Door Face
IN4-DEADBLTSNGL 04-25-2011
Tail Piece Horizontal
Tail Piece Horizontal
Tail Piece Horizontal
