Emtek Towel Ring User Manual
Towel ring - installation instructions
Towel Ring - Installation Instructions

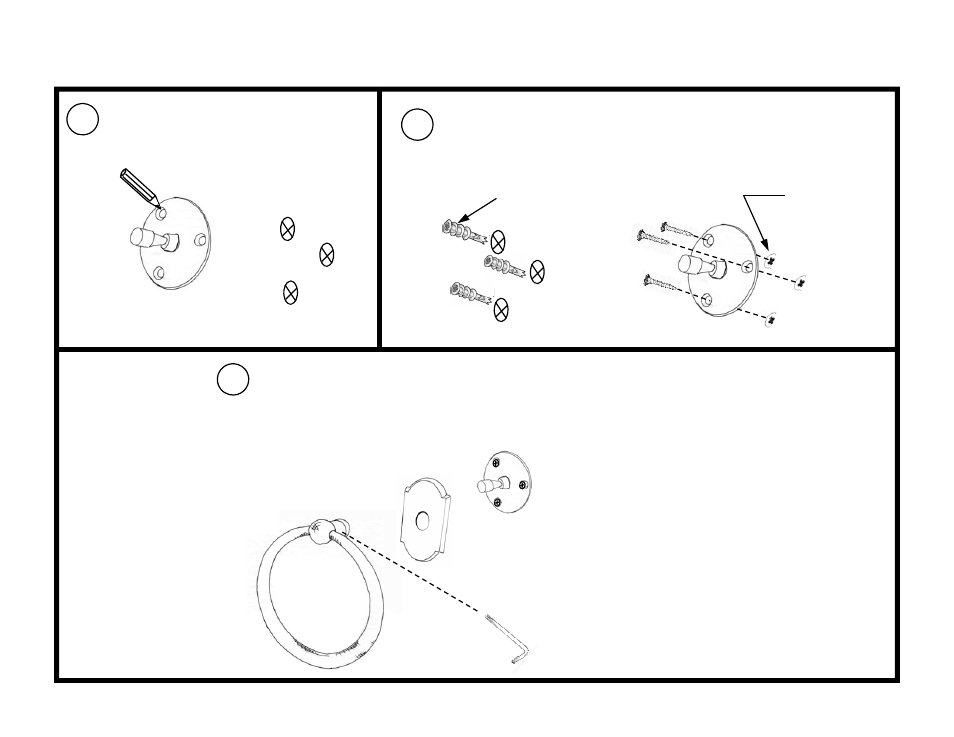

Mark three hole locations for the
mounting plate.
1
2
Slip trim plate and ring post over the stud on the
mounting plate. Tighten set screw at base of post
with allen wrench provided
Shape of trim
plate varies
depending on
style.
Use a screw driver to install three Screw Anchors into the wall.
Install mounting plate on top of the Screw Anchors. Attach
with sheet metal screws provided.
3
IN4-TOWELRING
REV. 11/16/04
Screw Anchors
Installed
Screw Anchors
