Product Diagrams
Installation
Mounting
This is an indoor camera. It is not suitable for exposure to particles or liquids.
1. Unscrew the mounting base from the camera by twisting counter‐clockwise. Use this base as a
guide to mark the locations for screw and cable management holes on the mounting surface.
Make note of the arrow on the base indicating the front of the camera. There are 2 options for
the cable management hole – at the back of the camera base or in the center of the camera
base.
2. Drill a starter hole at each marked location. Drill a cable management hole at least 14mm in
diameter to permit the camera’s cable to be inserted through the mounting surface.
3. If necessary, insert drywall anchors into the screw holes.
4. Place the camera base into location. Insert a screw through each of the screw holes in the base
and into the mounting surface and then tighten each screw until the base is secure.
5. Feed the camera’s cable through the access hole; position the dome onto the mounted base,
and twist clockwise to secure.

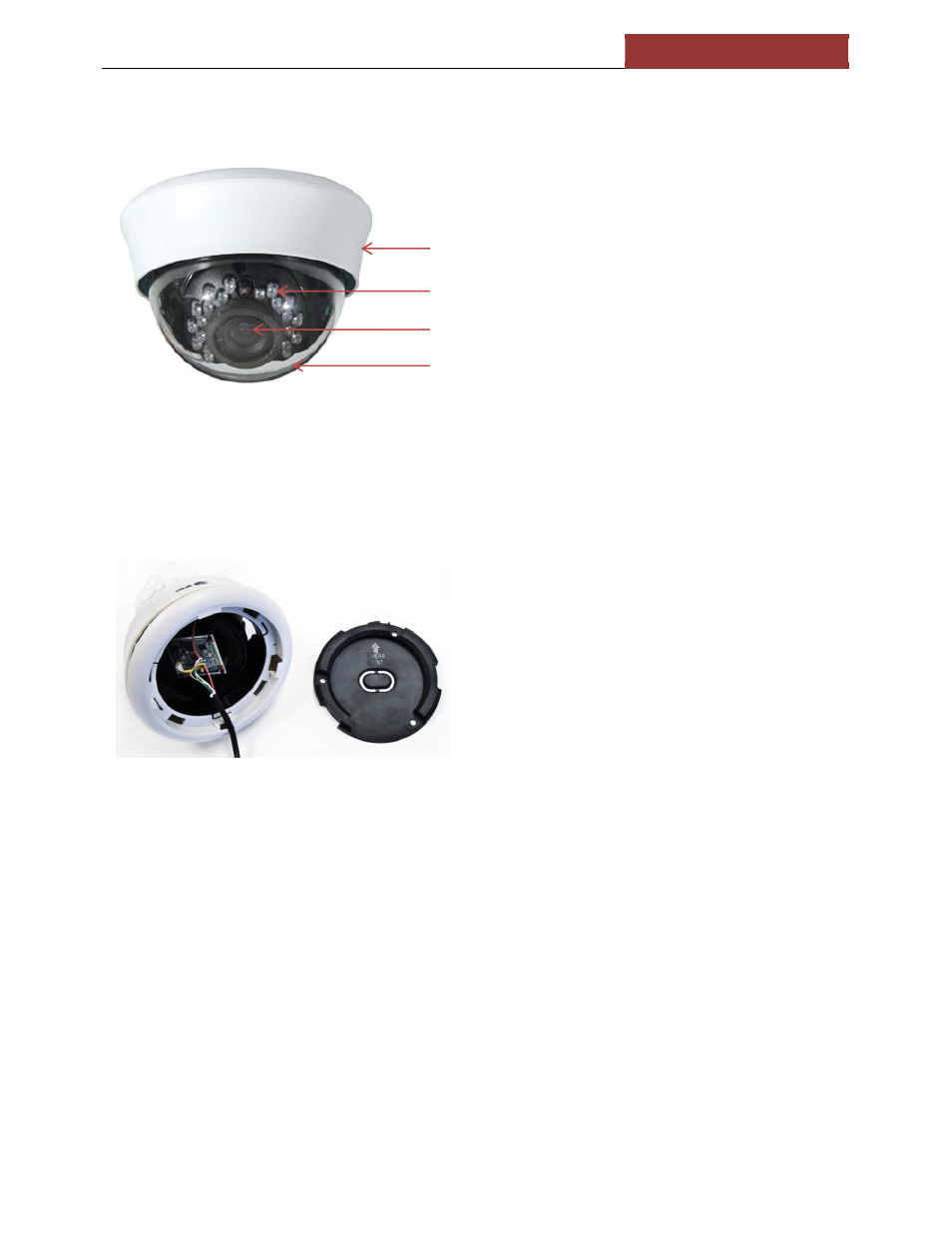

Plastic Housing
Infrared LEDs
Lens
Plastic Dome
