Step 1: Unlock System (Reboot)
Step 3: Copy Updated Files
Step 2: Update System (Reboot)
Step 4: Update Flowmeter
Step 5: Lock System (Reboot)
Unlock
Lock
Update
Flowmeter
Update
System
Copy
ORDEM & PR OGRE SSO
SET: D:\WindowsD\WMILogs
SET: D:\WindowsD\MSMQLogs
SET: HKEY_CURRENT_USER\Software\Microsoft
SET: HKEY_CURRENT_USER\Software\Microsoft
SET: HKEY_CURRENT_USER\Envrioment fro
SET: HKEY_CURRENT_USER\Envrioment fro
SET: HKEY_LOCAL_MACHINE\SYSTEM\Current
SET: HKEY_LOCAL_MACHINE\SYSTEM\Current
SET: HKEY_LOCAL_MACHINE\SYSTEM\Current
OK: HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft
OK: HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft
OK: HKEY_LOCAL_MACHINE\SYSTEM\CurrentC
OK: HKEY_LOCAL_MACHINE\SYSTEM\CurrentC
SET: HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft
SET: HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft
OK: HKEY_LOCAL_MACHINE\SYSTEM\CurrentC
SET: HKEY_LOCAL_MACHINE\SYSTEM\Current
SET: HKEY_LOCAL_MACHINE\SYSTEM\Current
SET: HKEY_LOCAL_MACHINE\SYSTEM\Current
SET: HKEY_LOCAL_MACHINE\SYSTEM\Current
SET: HKEY_LOCAL_MACHINE\SYSTEM\Current
Check Update Status Quit Update Utility Restart System
×
OK
Reboot

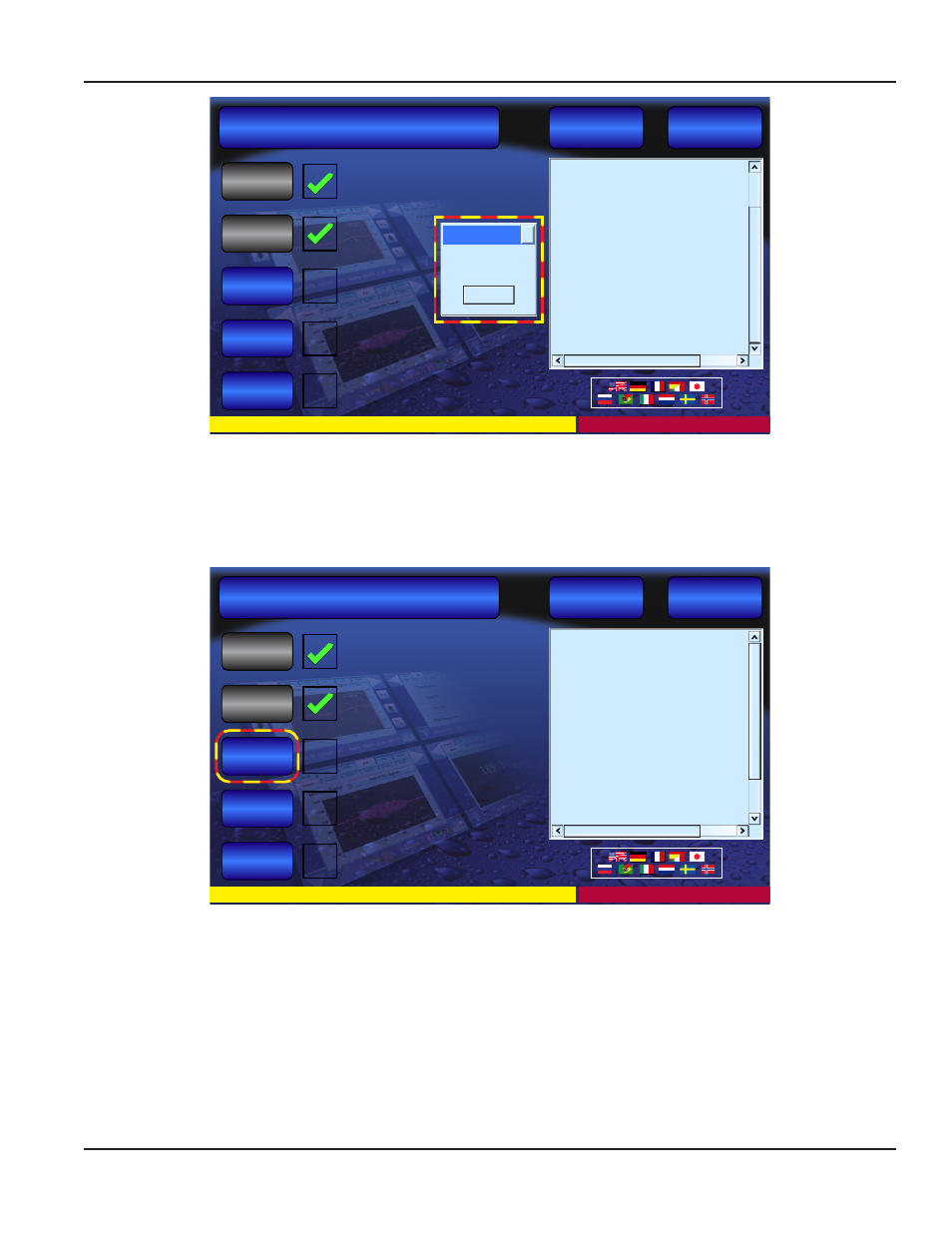

15 When the opening screen reappears, insert the USB Update Drive The Insert USB Update Drive button changes to a
Start Updater button
16 Press the Start Updater button
17 Press the Copy button (Step 3: Copy Updated Files) The text area to the right shows a series of status messages that
ends with “Copying Files Complete 98 Files”
dynasonics.com 800-535-3569 ©2012 Racine Federated Inc., all rights reserved
Step 1: Unlock System (Reboot)
Step 3: Copy Updated Files
Step 2: Update System (Reboot)
Step 4: Update Flowmeter
Step 5: Lock System (Reboot)
Unlock
Lock
Update
Flowmeter
Update
System
Copy
OK: OS Services
OK: Eth Services IP=192.168.0.100 Subnet = 255.255.255.0
OK: Folders
OK: Registry
C:\Documents and Settings\FlowMeterUser> ewfm
Protected Volume Configuration
Type RAM
State ENABLED
Boot Command NO_CMD
Param1 0
Param2 0
Presistent Data “”
Volume ID C7 A2 27 25 00 7E 00 00 00 00 00
Device Name “\Device\HarddiskVolume1” [C:]
Max Levels 1
Clump Size 512
Current Level 1
Memory used for data 0 bytes
Memory used for mapping 0 bytes
Check Update Status Quit Update Utility Restart System
ORDEM & PR OGRE SSO
NOTE: N If the process hangs-up, press the Restart System button which should clear the hang
NOTE: N The number of files copied may vary from 98
Firmware Update Manual
Page 9 May 2013
