5 Insert the USB Update Drive into the USB port on the rear of the DXN and wait 30 seconds for the DXN to recognize
the USB Update Drive

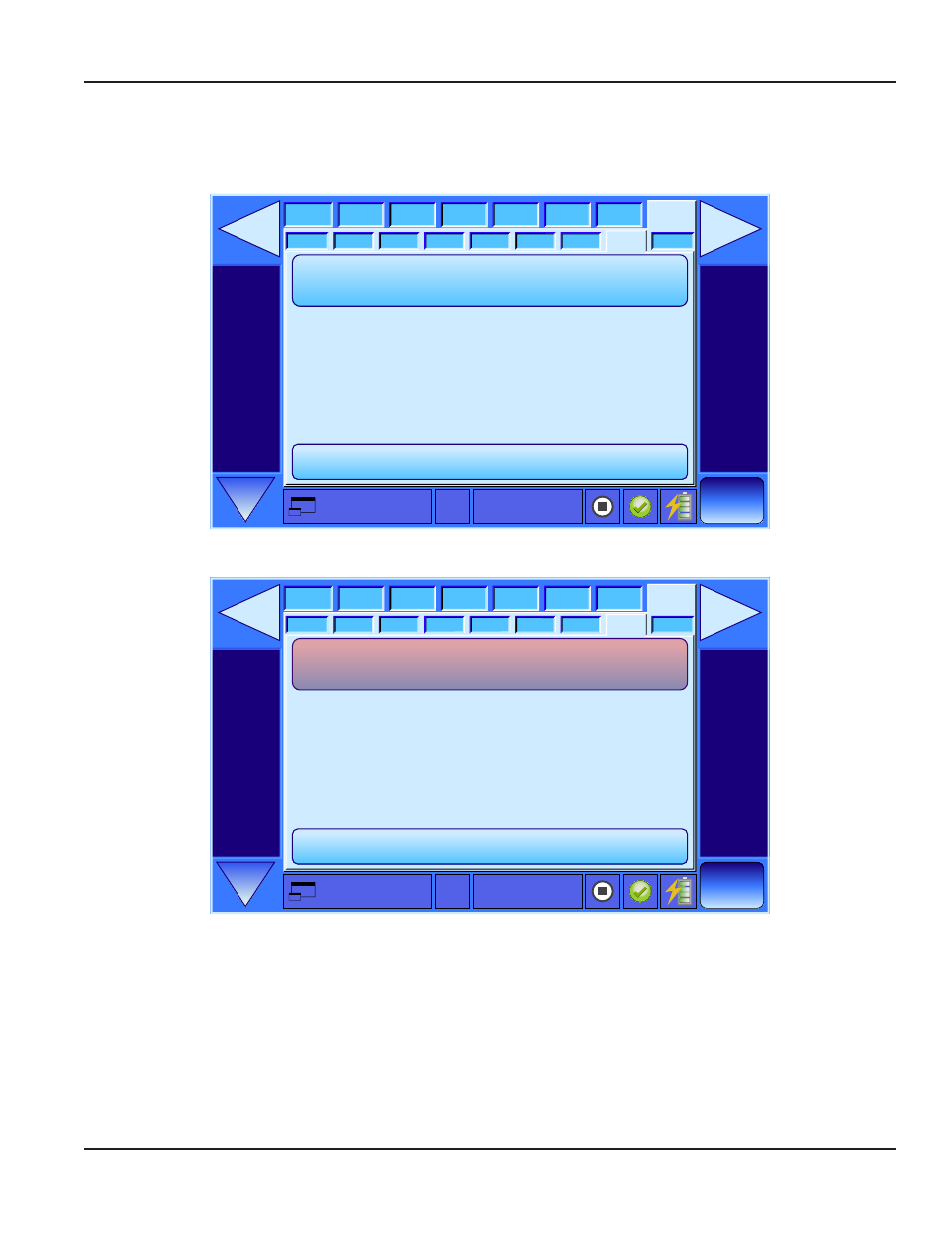

6 From the Display ► Meters screen, press the System tab on the far right of the display
7 From the System screen, select Update (System ► Update)
Site Name 0.00 GPM
4/12/2013
12:24 PM
System Site I/O Cal Adv Display Meter Log
Update Comm Time PC Storage Disk Power ENet Misc
Set Up Quick Boot
Quit Meter to Manage / Update
GUI -> Rev H = V 001.16 20121205.0
DSP -> Rev H =
V
001.16 20121205.0
DASH -> Rev F =
V
001.12 20120821.0
BIOS -> Rev A =
V
001.00 20111112.0
OS -> Rev A =
V
001.02 20121011.0
8 Press the Quit Meter to Manage / Update button
Site Name 0.00 GPM
4/12/2013
12:24 PM
System Site I/O Cal Adv Display Meter Log
Update Comm Time PC Storage Disk Power ENet Misc
Set Up Quick Boot
GUI -> Rev H =
V
001.16 20121205.0
DSP -> Rev H = V 001.16 20121205.0
DASH -> Rev F =
V
001.12 20120821.0
BIOS -> Rev A =
V
001.00 20111112.0
OS -> Rev A =
V
001.02 20121011.0
Quit Meter to Manage / Update
9 Press the Start Updater button
