Step 1: Unlock System (Reboot)
Step 3: Copy Updated Files
Step 2: Update System (Reboot)
Step 4: Update Flowmeter
Step 5: Lock System (Reboot)
Unlock
Lock
Update
Flowmeter
Update
System
Copy
Copy Files Complete 98 Files
Check Update Status Quit Update Utility Restart System
ORDEM & PR OGRE SSO

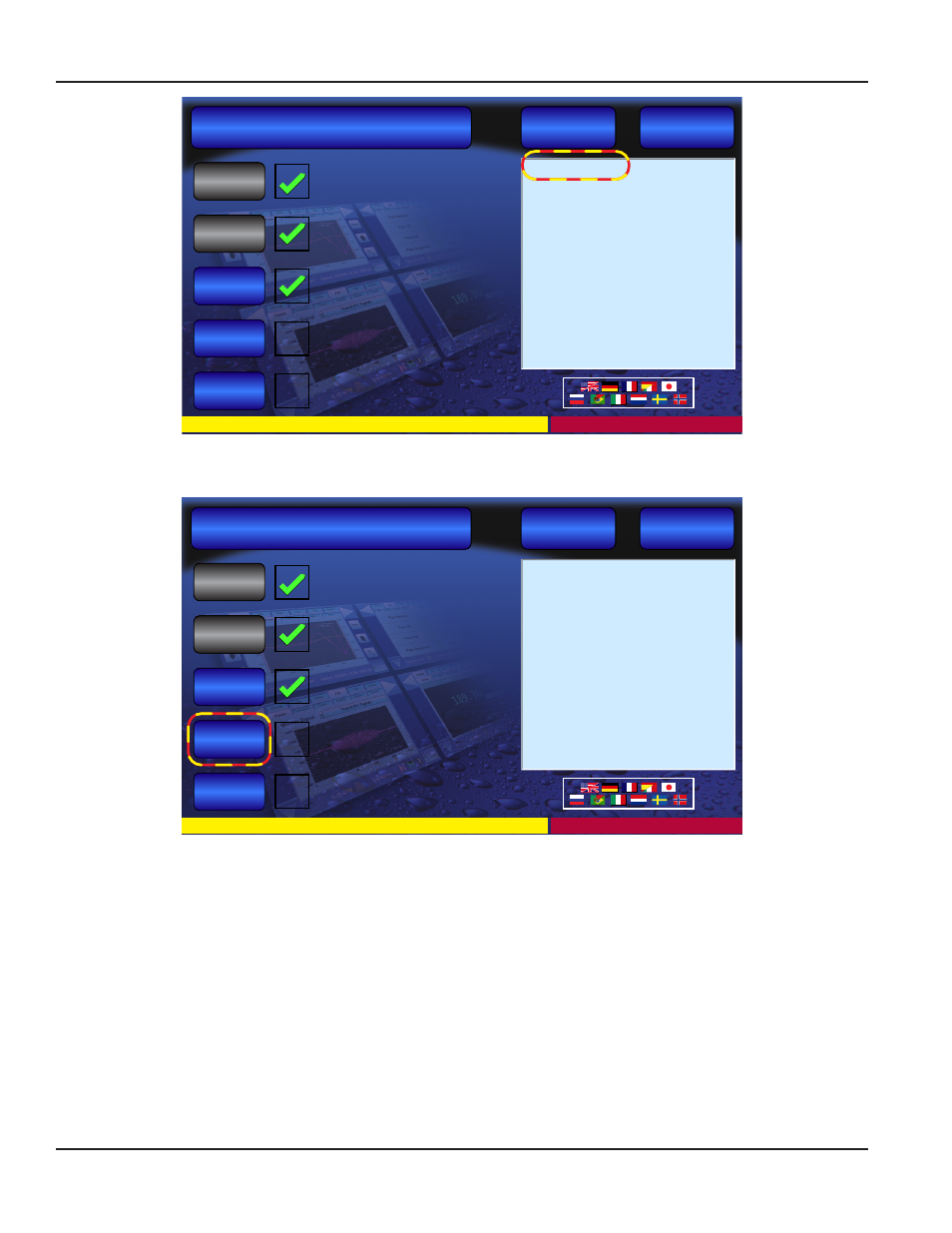

18 Press the Update Flowmeter button (Step 4: Update Flowmeter) A short process runs again indicated by text filling
the text area
dynasonics.com 800-535-3569 ©2012 Racine Federated Inc., all rights reserved
Step 1: Unlock System (Reboot)
Step 3: Copy Updated Files
Step 2: Update System (Reboot)
Step 4: Update Flowmeter
Step 5: Lock System (Reboot)
Unlock
Lock
Update
Flowmeter
Update
System
Copy
Check Update Status Quit Update Utility Restart System
ORDEM & PR OGRE SSO
Copy Files Complete 98 Files
At the end of the Update Flowmeter process the last lines of text should say:
“!Successful Embedded Update!”
“Exiting Reprogramming Mode”
At this point a green check mark appears in the Step 4: Update Flowmeter box
DXN Portable Ultrasonic Measurement System
Page 10 May 2013
