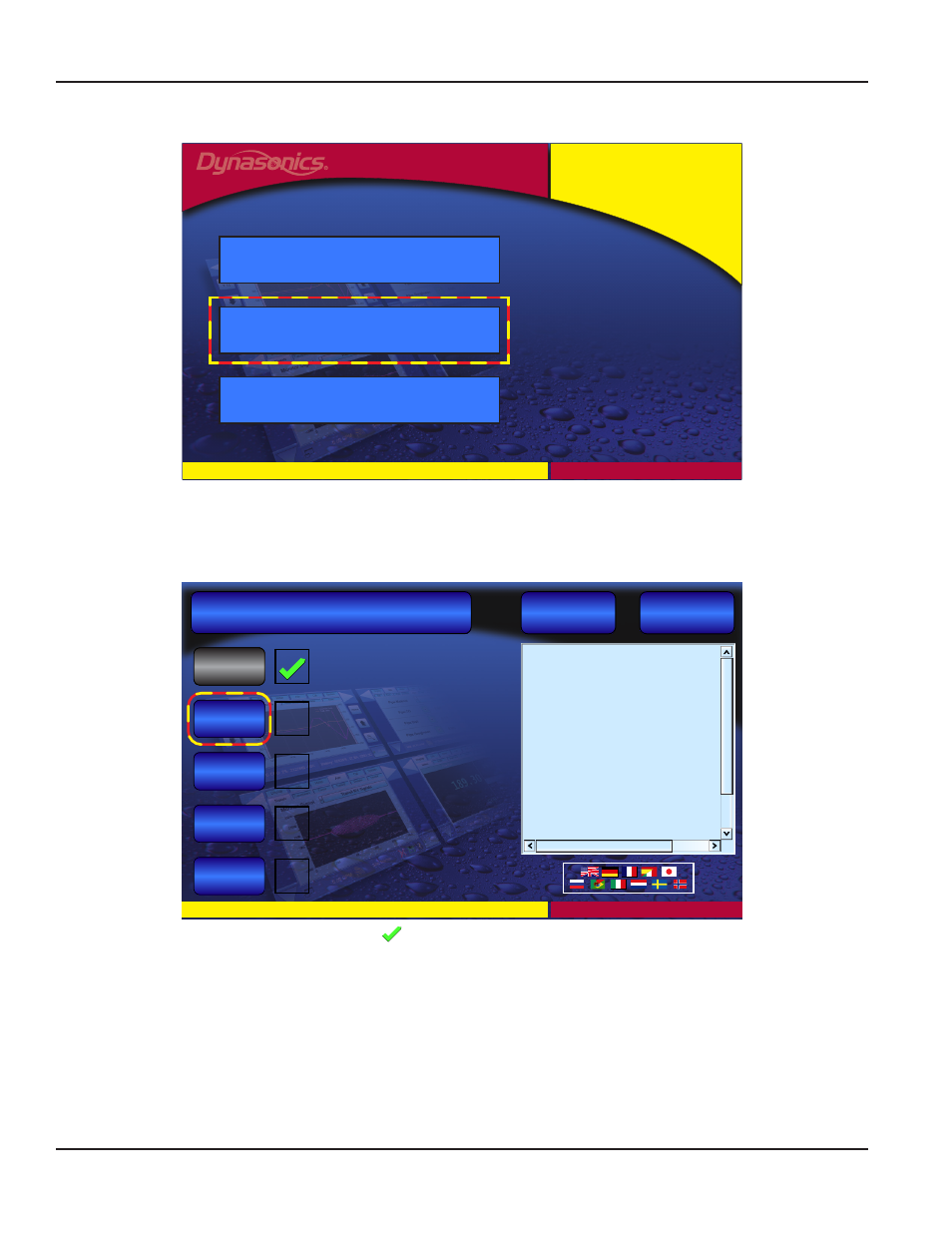

12 Insert the USB Update Drive When the USB Update Drive containing the update is inserted the grayed out button
changes to an active Start Updater button.
Series DXN
Launch Updater
Rev G
dynasonics.com
800-535-3569
©2012 Racine Federated Inc., all rights reserved
Start Flowmeter
Start Updater
Flowmeter Administration Tools
13 Press the Start Updater button
14 The meter should now be back on the Update screen Press Update System button Step 2: Update System (Reboot)
NOTE:
N
If this step was completed in a previous system update the update utility may skip this step and go directly to step 3
dynasonics.com
800-535-3569
©2012 Racine Federated Inc., all rights reserved
Step 1: Unlock System (Reboot)
Step 3: Copy Updated Files
Step 2: Update System (Reboot)
Step 4: Update Flowmeter
Step 5: Lock System (Reboot)
Unlock
Lock
Update
Flowmeter
Update
System
Copy
ORDEM & PR
OGRE
SSO
UD: XKey1 exists
UD: SR value is 0
UD: Eth Services IP=192.168.0.100 Subnet = 255.255.255.0
UD: Folders
UD: Registry
C:\Documents and Settings\FlowMeterUser> ewfm
Protected Volume Configuration
Type
RAM
State
ENABLED
Boot Command NO_CMD
Param1
0
Param2
0
Presistent Data “”
Volume ID
C7 A2 27 25 00 7E 00 00 00 00 00
Device Name
“\Device\HarddiskVolume1” [C:]
Max Levels
1
Clump Size
512
Current Level 1
Memory used for data 6432256 bytes
Memory used for mapping 16384 bytes
Check Update Status
Quit Update Utility
Restart System
When the update process is complete a green
appears in the Update System (Reboot) box The screen now also
indicates Reboot Remove the USB Update Drive and then press the OK button
