70 American Dryer Corporation 450438 - 5
Illus. No. Part No. Qty. Description
1 322809 1 Back Electrical Box Cover
2 150301 4 #8-18 x 7/16” Phillips Pan Head TEK Screw
3* 314424 1 Top Back Panel / Guard (gas Only)
314422 1 Top Back Panel / Guard (electric Only)
322007 1 Interface Plate (gas and electric Only) … Not Illustrated
4 150301 7 #8-18 x 7/16” Phillips Pan Head TEK Screw
5 150300 10 #10-16 x 1/2” Hex Washer TEK Screw
6* 322015 1 Outer Top (gas and electric Only)
7 322082 1 Bottom Back Guard / Panel
8 150301 13 #8-18 x 7/16” Phillips Pan Head TEK Screw
9 103500 4 Leveling Leg
* There is no outer top or top back guard on steam models.

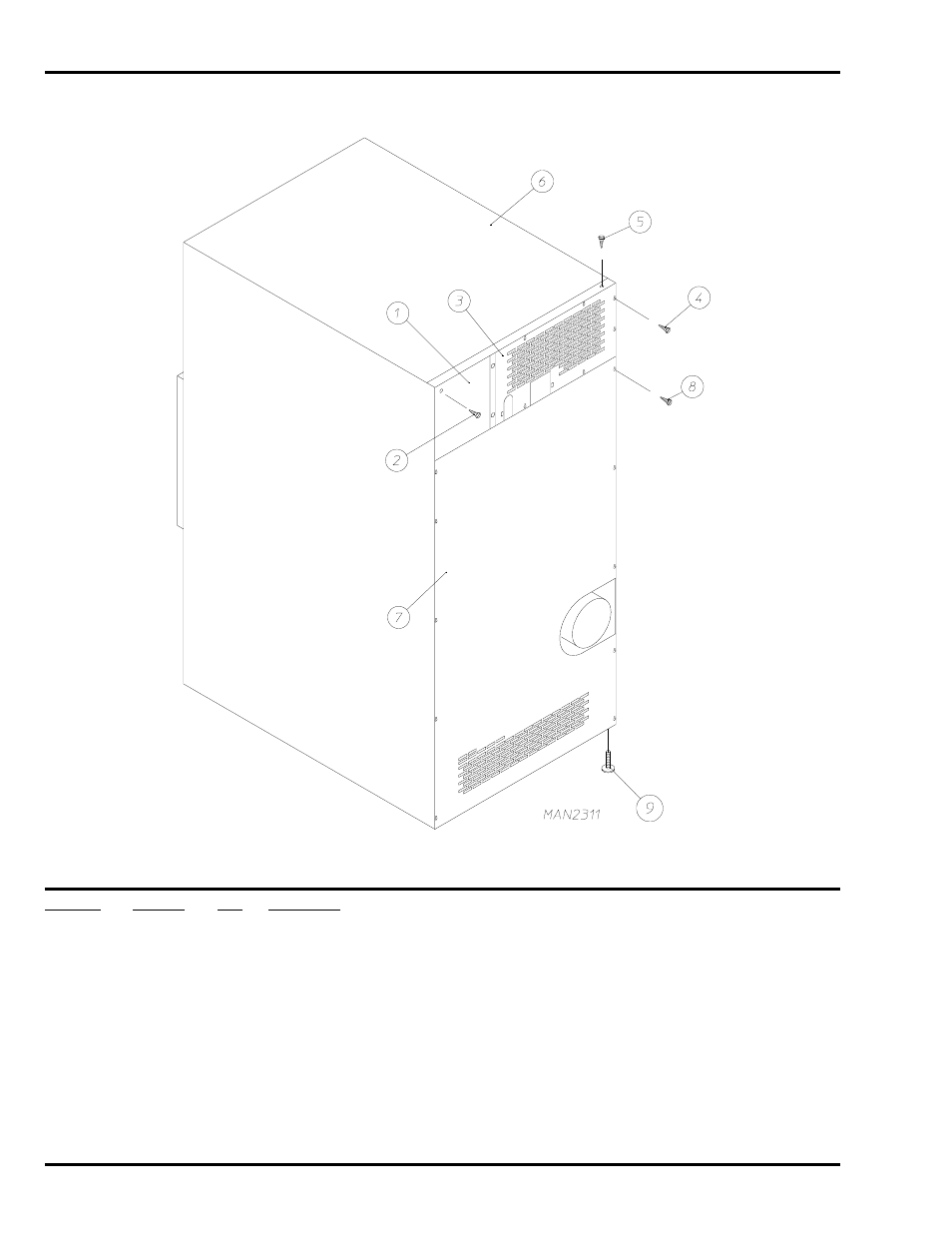

AD-30V Outer Top / Back Guard Assemblies
