24 American Dryer Corporation 450438 - 5

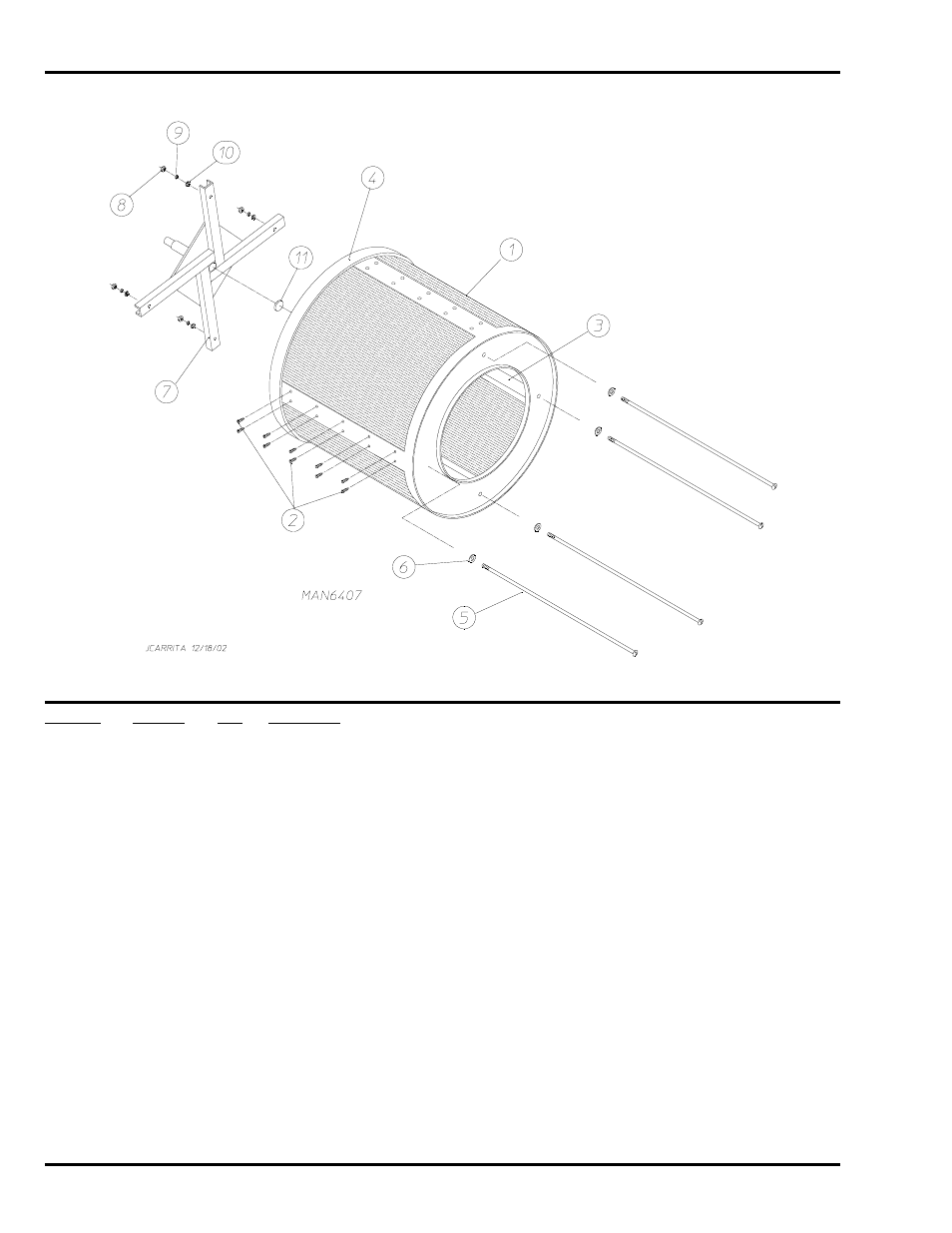

AD-30V Tumbler / Support Assemblies
Illus. No. Part No. Qty. Description
1* 882519 1 Galvanized Tumbler ONLY
882521 1 Stainless Steel Tumbler ONLY
882522 1 Galvanized Tumbler / Support Assemblies
(includes illus. nos. 1 through 3 and 5 through 11)
882523 1 Stainless Steel Tumbler / Support Assemblies
(includes illus. nos. 1 through 3 and 5 through 11)
2 150313 40 #10-16 x 1/2” TORX PLUS ® Screw
150318 1 25 IP TORX PLUS ® Bit (for removal of TORX ® head screw)
3 322002 2 Galvanized Taper Tumbler Rib
322003 2 Galvanized Straight Tumbler Rib
322066 2 Stainless Steel Straight Tumbler Rib
322067 2 Stainless Steel Tapered Tumbler Rib
4 116002 1 Felt Collar ONLY
5 100918 4 3/8-16 x 26-3/4” Tie Rod
6 153004 4 3/8” Flat Washer
7 882517 1 Tumbler Support ONLY
8 152027 4 3/8-16 Nylon Insert Locknut
9 153005 4 3/8” Lock Washer
10 153004 4 3/8” Flat Washer
11 115986 1 1/4” x 2” Felt Tumbler Pad
401010 1 #847 Adhesive for Felt Collar (5.0 oz. tube) … Not Illustrated
* Felt collar is not included and must be ordered separately.
