20 American Dryer Corporation 450438 - 5

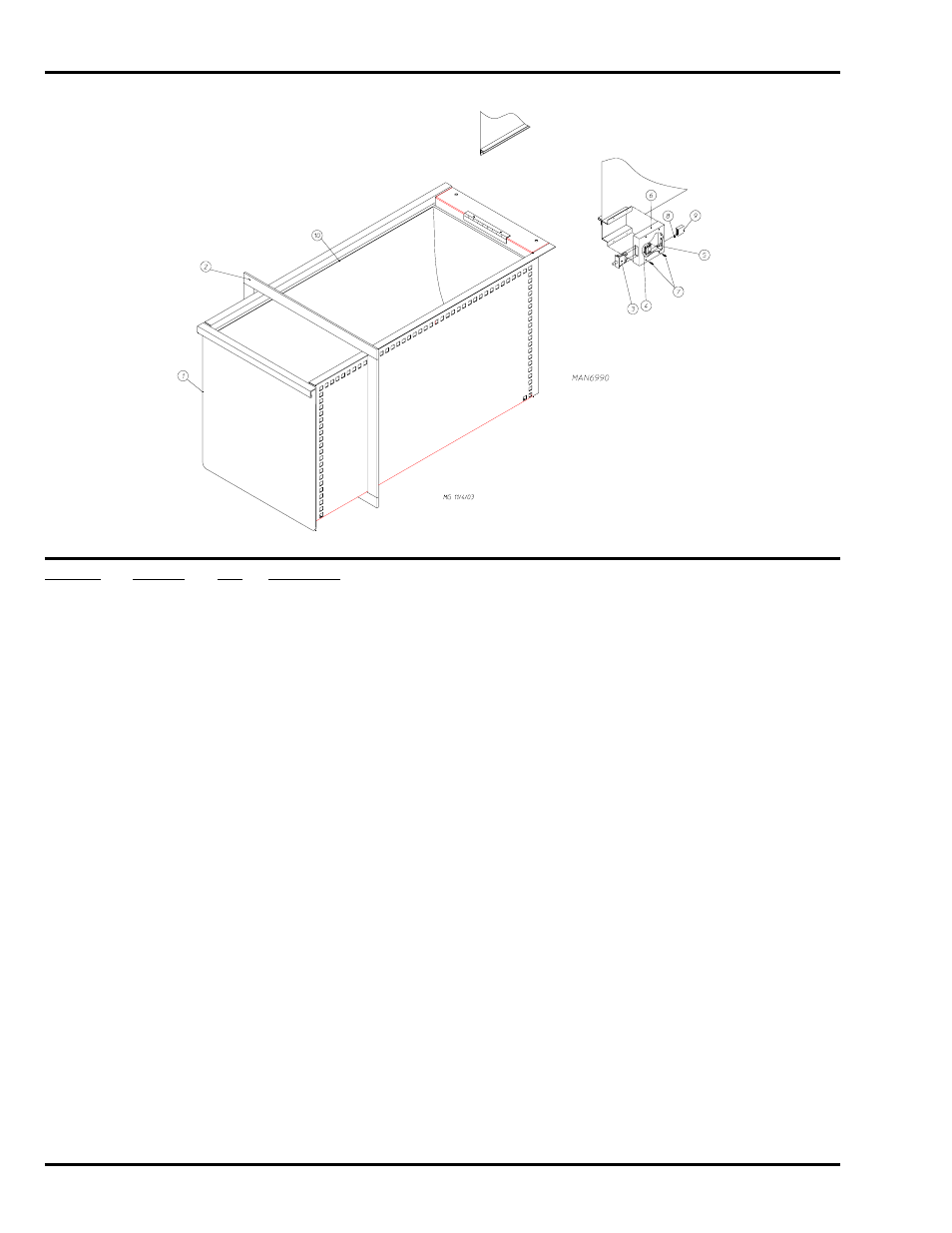

AD-50V Lint Drawer / Lint Drawer Switch Assemblies
Illus. No. Part No. Qty. Description
1 850962** 1 Lint Drawer Assembly (non-coin Only)
(for models mfd. as of January 1, 2003)
883795 1 White Lint Drawer Assembly (non-coin Only)
(for models mfd. prior to January 1, 2003)
883796 1 Coral Blue Lint Drawer Assembly (non-coin Only)
(for models mfd. prior to January 1, 2003)
883797 1 Ivory Lint Drawer Assembly (non-coin Only)
(for models mfd. prior to January 1, 2003)
850968** 1 Locking Lint Basket Assembly (coin Only)
(includes illus. nos. 1, 2, and 10)
160001 1 AD-100 Lock with Cam and Key (coin Only)
160103 1 AD-100 Key ONLY (coin Only)
160052 1 Lock Cam ONLY (coin Only)
2 117604 7 Noise Suppression Tape (sold by the foot)
3 122116 1 Lint Drawer Switch
4 122605 * 4-Pin Connector (female)
5 122701 * Socket Terminal
122801 1 Pin / Socket Extraction Tool … Not Illustrated
6 833123 1 Lint Drawer Switch Box Assembly (for Phase 7 models Only)
(includes illus. nos. 3 through 6)
818087 1 Lint Drawer Switch Box Assembly (for dual timer models Only)
(includes illus. nos. 3 through 6)
304136 1 Lint Drawer Switch Box Cover ONLY
7 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
8 122700 * Pin Terminal
9 122604 * 4-Pin Connector (male)
10 817032 1 Lint Bag
(for models mfd. as of January 1, 2003)
* As required.
** Specify color when ordering.
