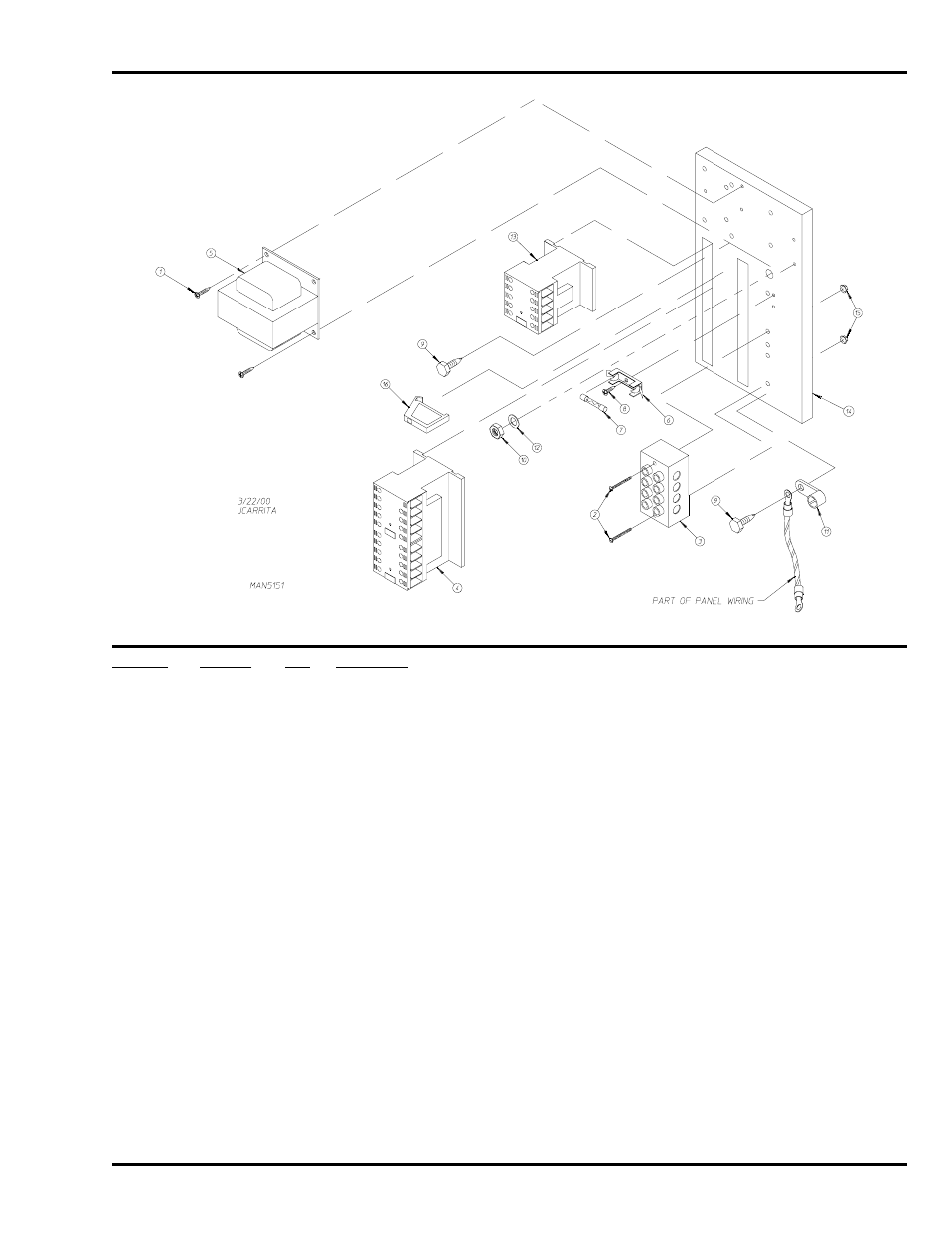

Dual Timer 208-416V Reversing Relay Panel Assembly
Illus. No.
Part No.
Qty.
Description
1
150300
2
#10-16 x 1/2” Hex Washer TEK Screw
2
150008
2
#6-32 x 1-1/4” Phillips Pan Head Machine Screw
3
120701
1
4-Position Terminal Block
4
132458
1
3-Pole Reversing Contactor
5
882653
1
Transformer Assembly – 208-240 Volt (for gas and steam models Only)
825428
1
Transformer Assembly – 208-240 Volt (for electric models Only)
882654
1
Transformer Assembly – 380-416 Volt
6
136008
*
Fuse Holder
7
136057
*
1/2-Amp (Slo-Blo) Fuse
8
150301
*
#8-18 x 7/16” Phillips Pan Head TEK Screw
9
150297
2
#10 x 1/2” Green Hex Washer TEK Screw
10
152004
1
5/16-18 Hex Nut
11
121010
1
L-70 Ground Lug
12
153002
1
5/16” Lock Washer
13
132459
1
3-Pole Contactor
14
322812
1
Rear Electric Mounting Plate ONLY
882673
1
Rear Electric Panel Assembly Complete – 208-240 Volt (for gas and steam models Only)
(includes illus. nos. 1 through 16)
883335
1
Rear Electric Panel Assembly Complete – 208-240 Volt (for electric models Only)
(includes illus. nos. 1 through 16)
882676
1
Rear Electric Panel Assembly Complete – 380-416 Volt
(includes illus. nos. 1 through 16)
15
151000
2
#6-32 Pal Nut
16
120765
1
Standard End Bracket
*
Quantity is 2 for 208-240v and 1 for 380-416v.
