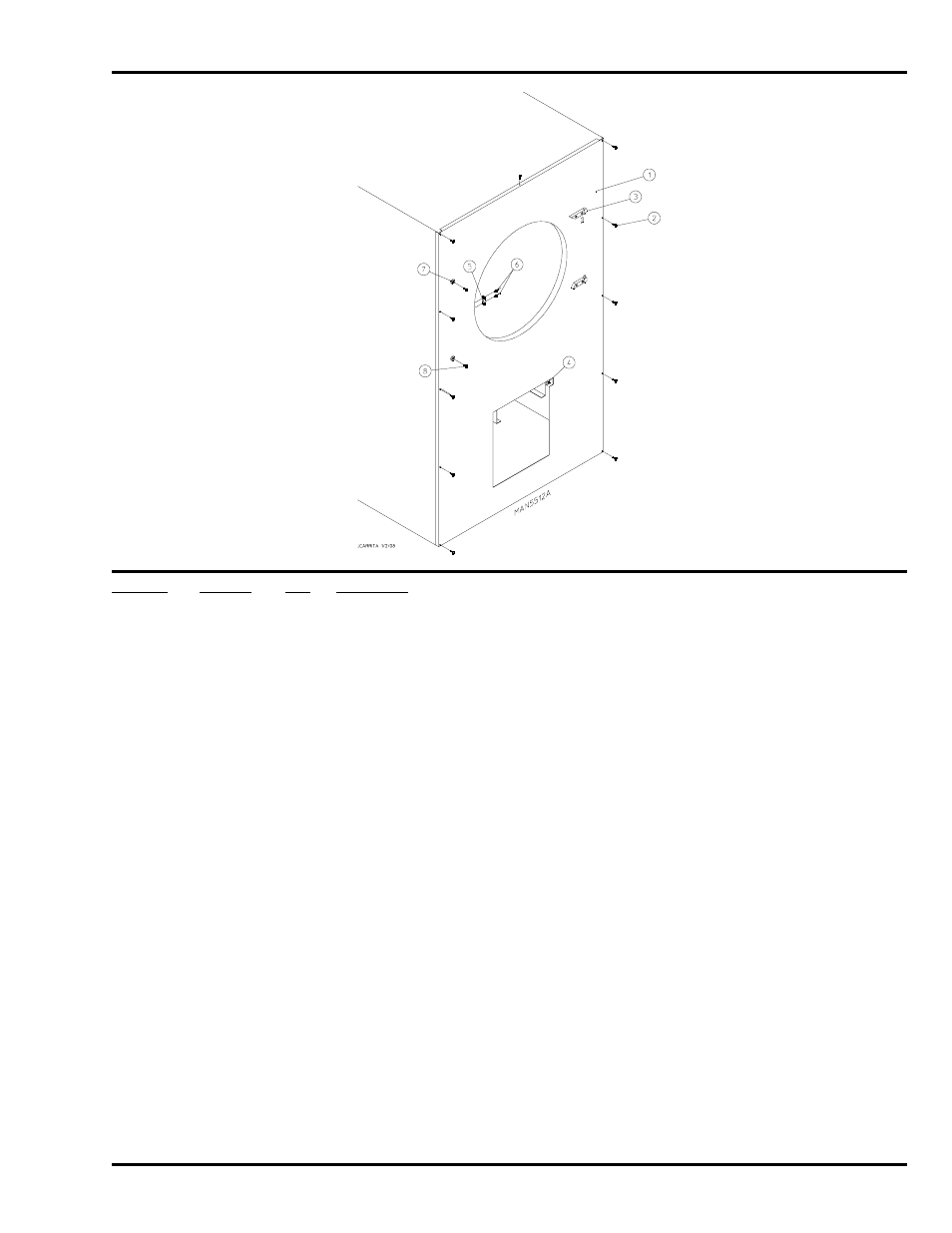

AD-50V Front Panel Assembly
Illus. No.
Part No.
Qty.
Description
1
822669*
1
RH “Magnet” Front Panel Assembly
(includes illus. nos. 1, 7, and 8)
(for models mfd. as of June 18, 2007)
822671
1
RH Stainless Steel “Magnet” Front Panel Assembly
(includes illus. nos. 1, 7, and 8)
(for models mfd. as of June 18, 2007)
822673*
1
LH “Magnet” Front Panel Assembly
(includes illus. nos. 1, 7, and 8)
(for models mfd. as of June 18, 2007)
883137
1
RH White Front Panel Assembly
(includes illus. nos. 1, 5, and 6)
(for models mfd. prior to June 18, 2007)
883138
1
RH Coral Blue Front Panel Assembly
(includes illus. nos. 1, 5, and 6)
(for models mfd. prior to June 18, 2007)
883139
1
RH Ivory Front Panel Assembly
(includes illus. nos. 1, 5, and 6)
(for models mfd. prior to June 18, 2007)
2
150313
11
#10-16 x 1/2” TORX PLUS
®
Screw
150318
1
25 IP TORX PLUS
®
Bit (for removal of TORX
®
head screw)
3
––––––
1
Main Door Hinge
(refer to Main Door “Steel” Assembly on page 16)
4
––––––
1
Lint Drawer Switch
(refer to AD-50V Lint Drawer / Lint Drawer Switch Assemblies on page 20)
5
170330
1
Friction Door Latch
6
154215
2
5/32” Pop Rivet
7
102004
2
0.750 Round Main Door Magnet
8
152223
2
1/2” TORX
®
Head Screw
*
Specify color when ordering.
