Dual timer control box assembly – American Dryer Corp. AD-30V User Manual
Page 12
12
American Dryer Corporation
450438 - 5

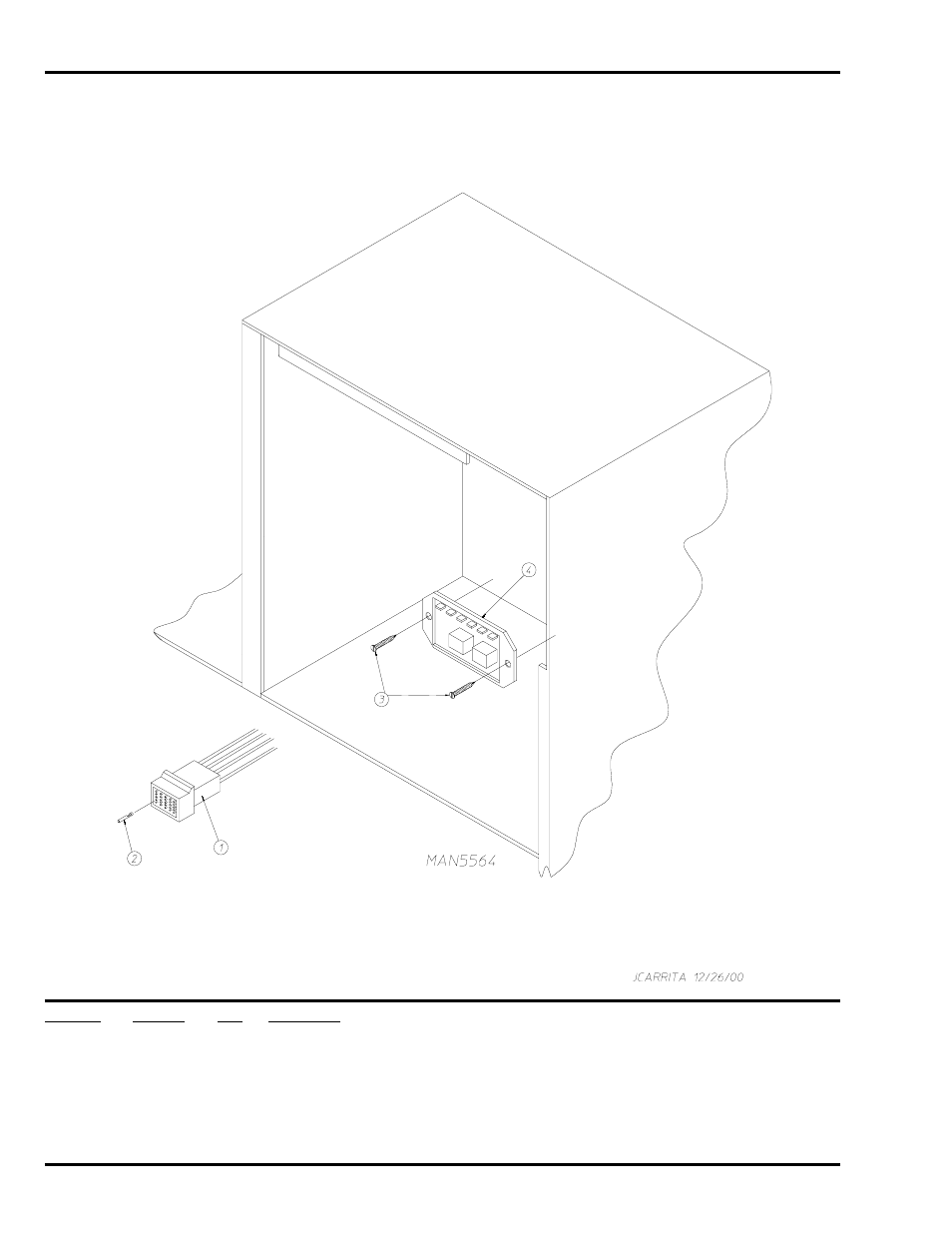

Dual Timer Control Box Assembly
Illus. No.
Part No.
Qty.
Description
1
122641
1
15-Pin Connector
2
122706
*
Socket Terminal
122801
1
Pin / Socket Extraction Tool … Not Illustrated
3
150301
2
#8-18 x 7/16” Phillips Pan Head TEK Screw
4
884252
1
Reversing Timer 24v (for reversing dual timer models Only)
*
As required.
