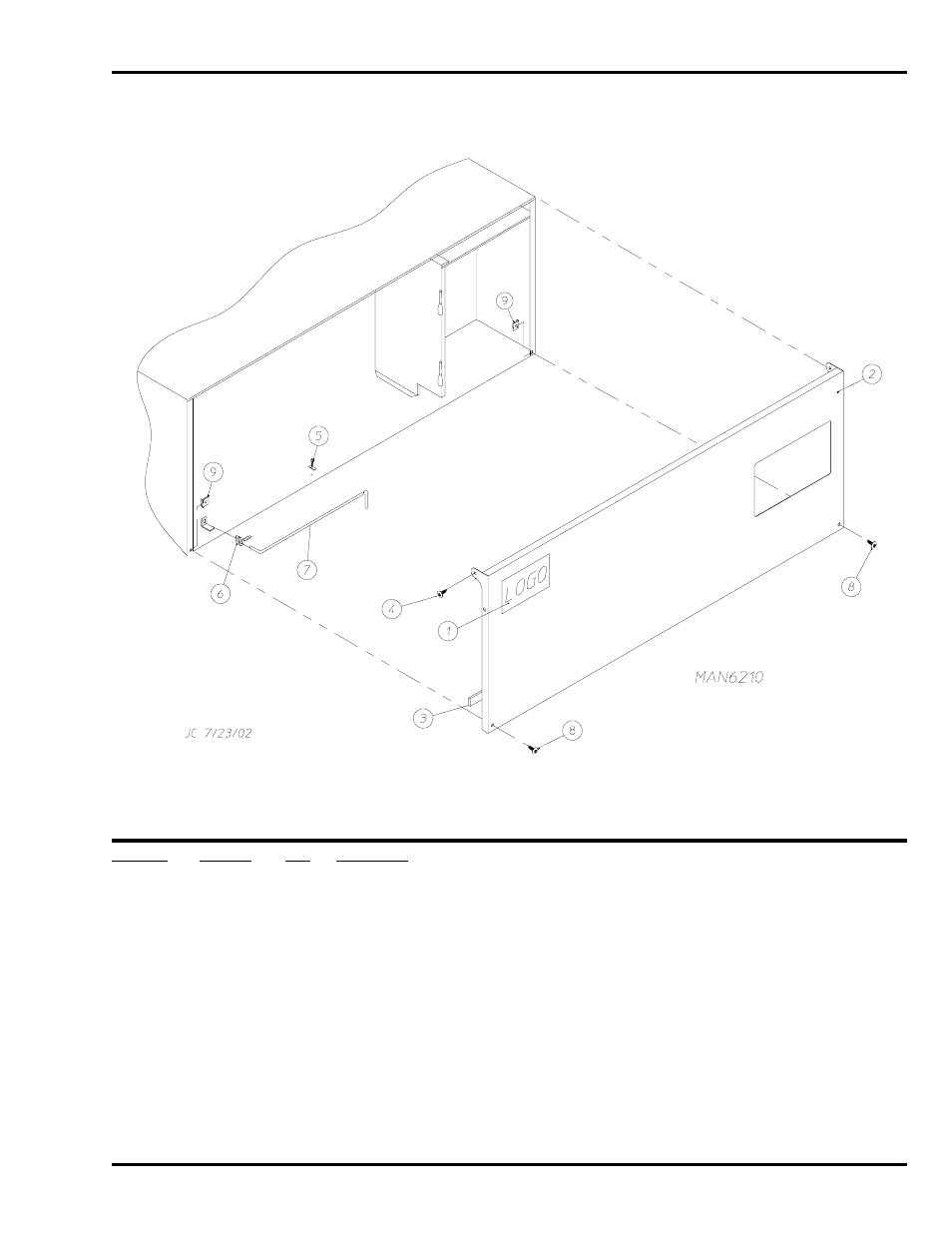

Dual Timer Control Door Assembly

Illus. No.

Part No.

Qty.

Description

1

112301

1

ADC Logo with Tape

870011

1

Double Sided Tape Kit

2

883550

1

White Control Door Assembly
(includes illus. nos. 2 and 3)

883551

1

Ivory Control Door Assembly
(includes illus. nos. 2 and 3)

883552

1

Coral Blue Control Door Assembly
(includes illus. nos. 2 and 3)

3

117604

3

Noise Suppression Tape (sold by the foot)

4

150317

2

#10-16 x 3/4” TORX PLUS

®

Screw

5

102603

1

Control Door Rod Support Catch

6

102601

1

Control Door Rod Retainer Clip

7

102502

1

Control Door Support Rod

8

150321

2

#10-32 x 1/2” Phillips Machine Screw

9

154011

2

#10-32 Multi-Thread U-Nut
