9
PRINTPAD SERIES OF PRINTERS USER'S GUIDE
Using PrintPAD Charge LEDs
Using Batteries

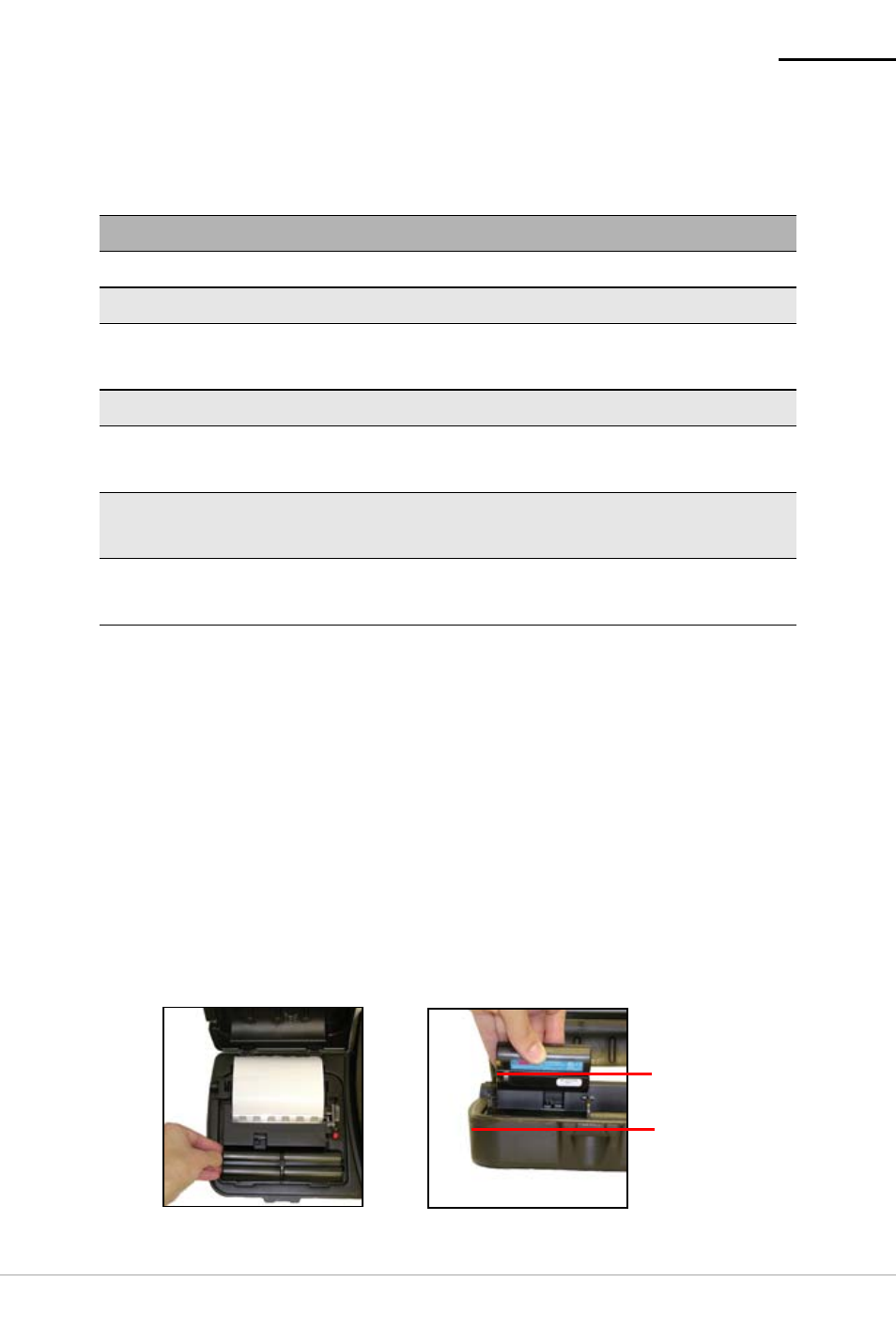

1. Open the printer by unsnapping the latch on the
front of the case.
2. Remove the batteries by pressing the retainer clip
outward with your thumb. While pressing the
retainer clip, lift the outside end of the battery past
the retainer clip (Figure 12).
3. Insert the new batteries. Verify the battery contacts
are facing down and are facing the outside edge of
the printer (Figure 13).
Charge LED State of Charge Action
Solid red Charge in progress. Wait for green LED.
Green Charge completed. None.
Red flash-slow Battery is too cold.
Battery is disconnected.
Change environment.
Connect battery.
Red flash-fast High temperature. Change environment.
Red/orange
flash-slow Battery voltage is very
low. Wait for solid red.
Restart charge.
Red/orange
flash-fast Battery is disconnected. Connect battery.
Orange flash-
slow Charge timeout. Restart charge.
Contacts
Edge of
printer
Figure 12 Figure 13
