Chapter 2 - Printer Setup
10

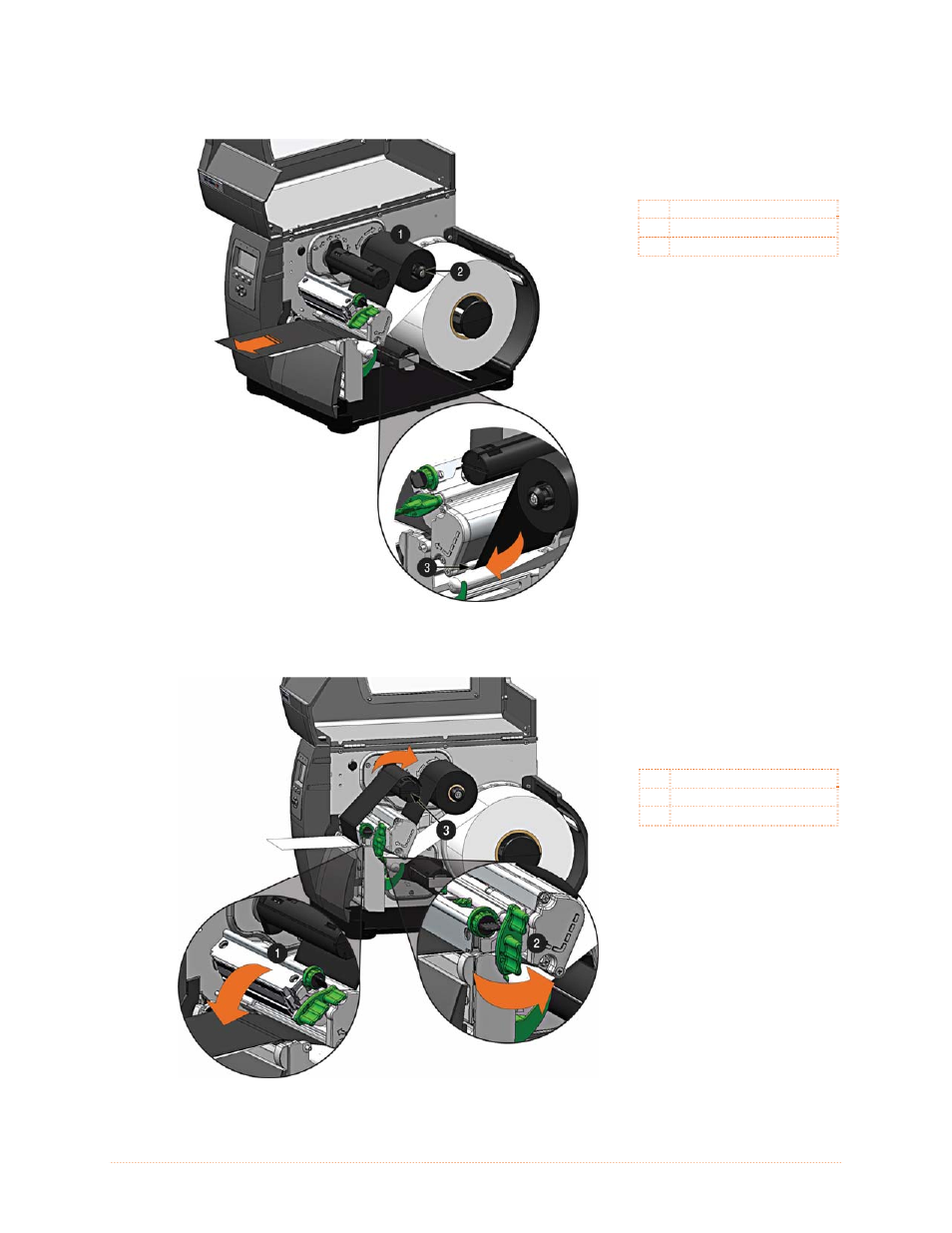

3. Route the ribbon under the Ribbon Idler and then out the front of the printer approximately 12
inches as shown.
Ribbon Roll
Ribbon Supply Hub
Ribbon Idler
4. Close the Printhead Assembly and rotate the Printhead Latch to the locked position. Route the
ribbon up and then around to the Ribbon Take-Up Hub, winding it several times in a clockwise
direction to secure it in place.
Printhead Assembly
Printhead Latch
Ribbon Take-up Hub
5. Close the cover and press the Feed button several times to position the ribbon and ensure proper
tracking.
