Datamax-O'Neil I-Class Peel and Present Option User Manual
Page 5
3

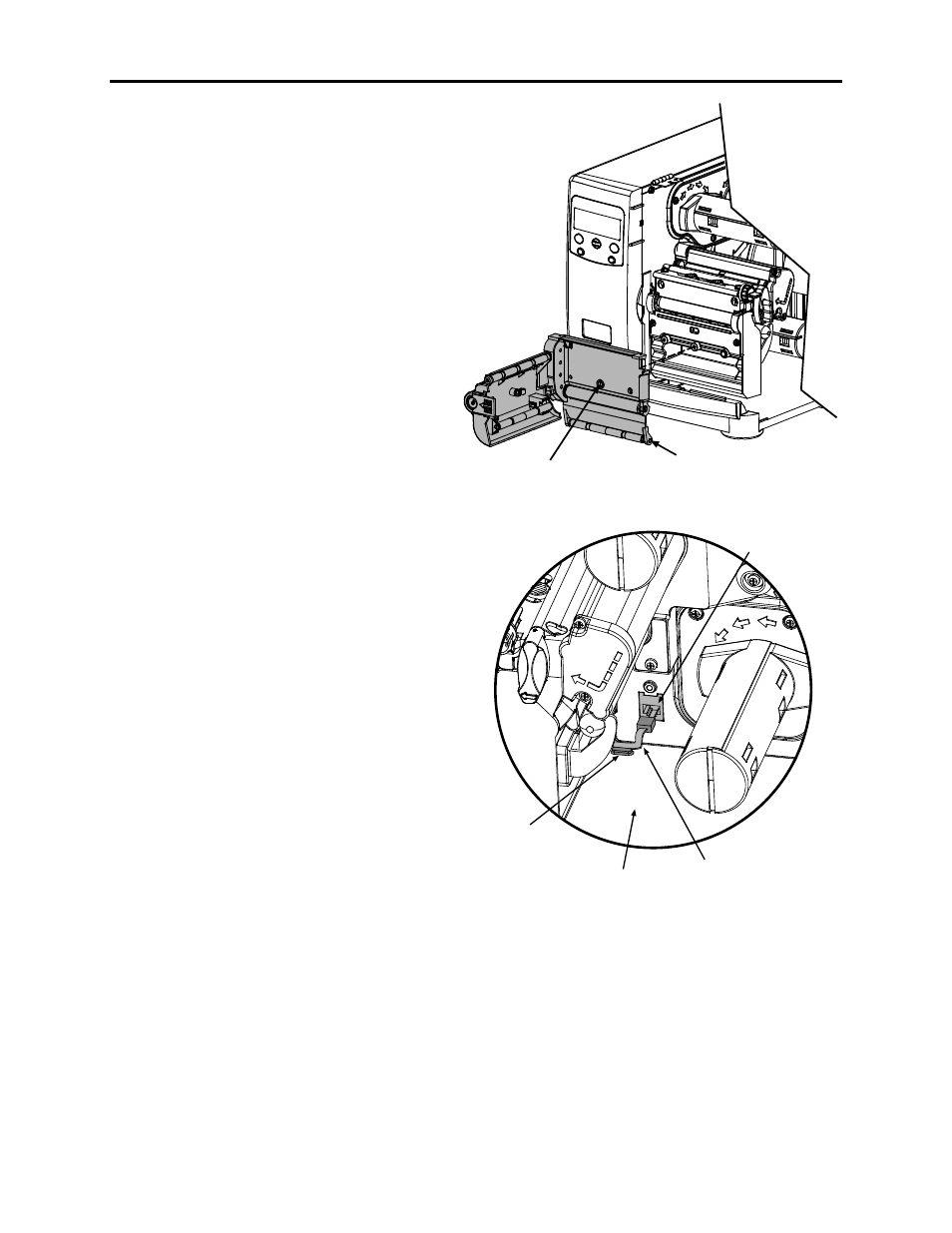

Installing the Peel and Present Assembly
Position the Peel and Present Assembly on
the front of the printer and then tighten the
mounting screw.
Peel and Present
Assembly
Mounting
Screw
Route the Present Sensor Cable along the
Baseplate and on the inside of the Cable
Guide as shown. Plug the end into the
Options Connector as shown.
Options
Connector
Present Sensor
Cable
Baseplate
Cable
Guide
