Datamax-O'Neil H-Class Peel & Present Option User Manual
Page 4
2

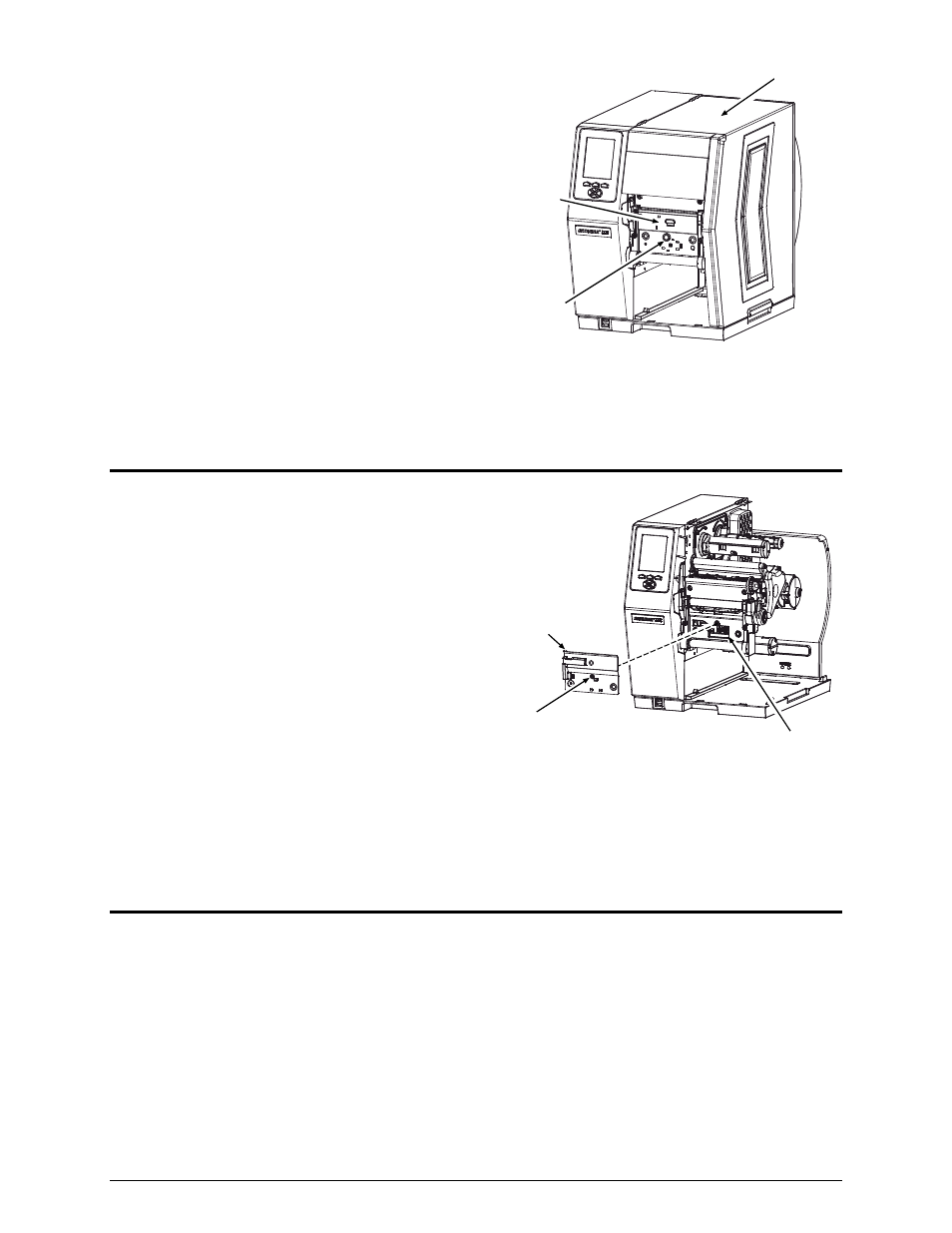

C) Raise the Access Cover and remove your
media from the printer.
D) Remove the Thumbscrew and Tear Plate.
(Alternately, if equipped with an Arc Plate,
Present Sensor, or Cutter, remove that
device.)
Tear Plate
Thumbscrew
Access
Cover
Step 2: Installing the Peel & Present Assembly
A) Carefully press the Peel & Present
Assembly into the Front Plate Connector.
B) Tighten the Mounting Screw to secure the
Peel & Present Assembly to the printer.
Front Plate
Connector
Peel & Present
Assembly
Mounting
Screw
Step 3: Using the Option
During operation, labels will be peeled from the backing material and dispensed “on-demand” – that is,
subsequent printing will occur only after a previously printed label has been removed from the printer. As a
reminder, “REMOVE LABEL” will be displayed to prompt you when a label awaits removal.
Begin using the option as follows:
