Datamax-O'Neil H-Class Present Sensor Option User Manual
Page 4
2

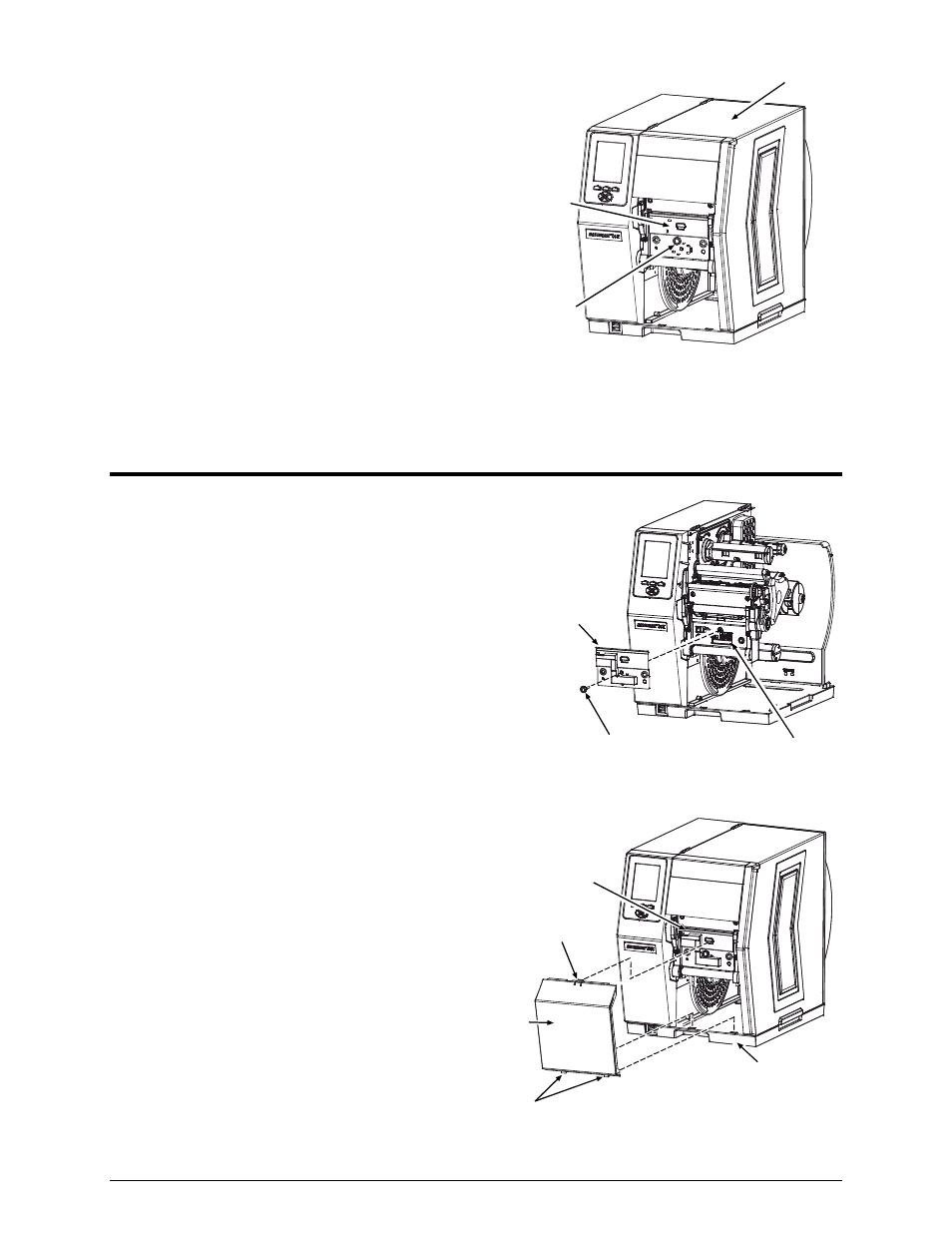

C) Raise the Access Cover and remove your
media from the printer.
D) Loosen and remove the Thumbscrew and
then remove the Tear Plate. (Alternately, if
equipped with an Arc Plate, Cutter, or Peel and
Present option, remove that device.)
Tear Plate
Thumbscrew
Access
Cover
Step 2: Installing the Present Sensor
A) Carefully press the Present Sensor Assembly
into the Front Plate Connector.
B) Secure the Present Sensor Assembly to the
printer using the previously removed
Thumbscrew.
Front Plate
Connector
Thumbscrew
Present Sensor
Assembly
C) Place the Tabs of the Door into the Base
Plate, and then press the Catch into the
Present Sensor Assembly.
Tabs
Door
Catch
Base Plate
Present Sensor
Assembly
