1.3 Reading the LED Status

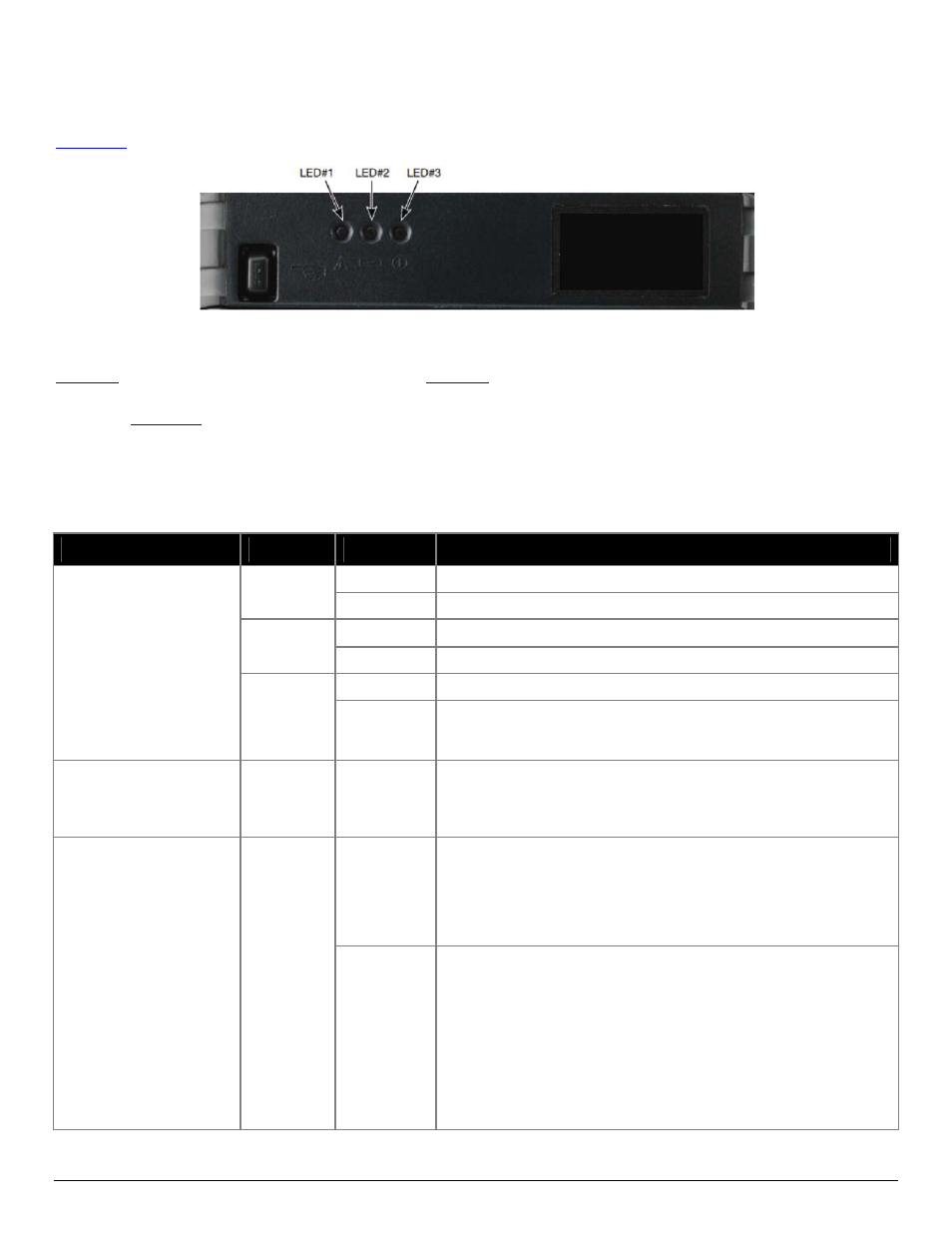

Figure 4 points out the location of the LED indicators described in Table 1 and Table 2
FIGURE 4 - LED INDICATOR LOCATIONS
Table 1 explains the LED indicator status. Table 2 explains the Error/Warning indicator status.
Refer to
Figure 1 for the locations described for ON/OFF and FEED push button switches and AC
adapter socket.
Table 1 - Reading the LED Status
LED Status Condition Function
Flashing Power is ON and the printer is in USB mode
GREEN
Steady Communicating with host
Flashing Power is ON and the printer is in Bluetooth mode
BLUE
Steady Transmitting/receiving
Flashing Power is ON and the printer is in 802.11b/g mode
LED # 1
Communication
AMBER
Steady Transmitting/Receiving
LED # 2
Battery
AMBER Steady
Battery being charged. The LED will turn off when the
battery is fully charged
Steady
• Indicates that MCR is ready to accept data
• Indicates that SCR is ready to accept data
LED # 3
Magnetic Card
Reader
&
Printer Error
GREEN
Flashing
Indicates that the printer is in USB Bootloader mode.
(USB cable is plugged in and Dip Switches 5 and 7 are
ON)
Note: If USB is unplugged, LED will flash Amber until
printer is reset manually
