O v e r v i e w 3
Introduction
These network cards can be equipped in the following configurations:
 Wired and Wireless Ethernet
 Wired Ethernet
 Wireless Ethernet (H-Class only)

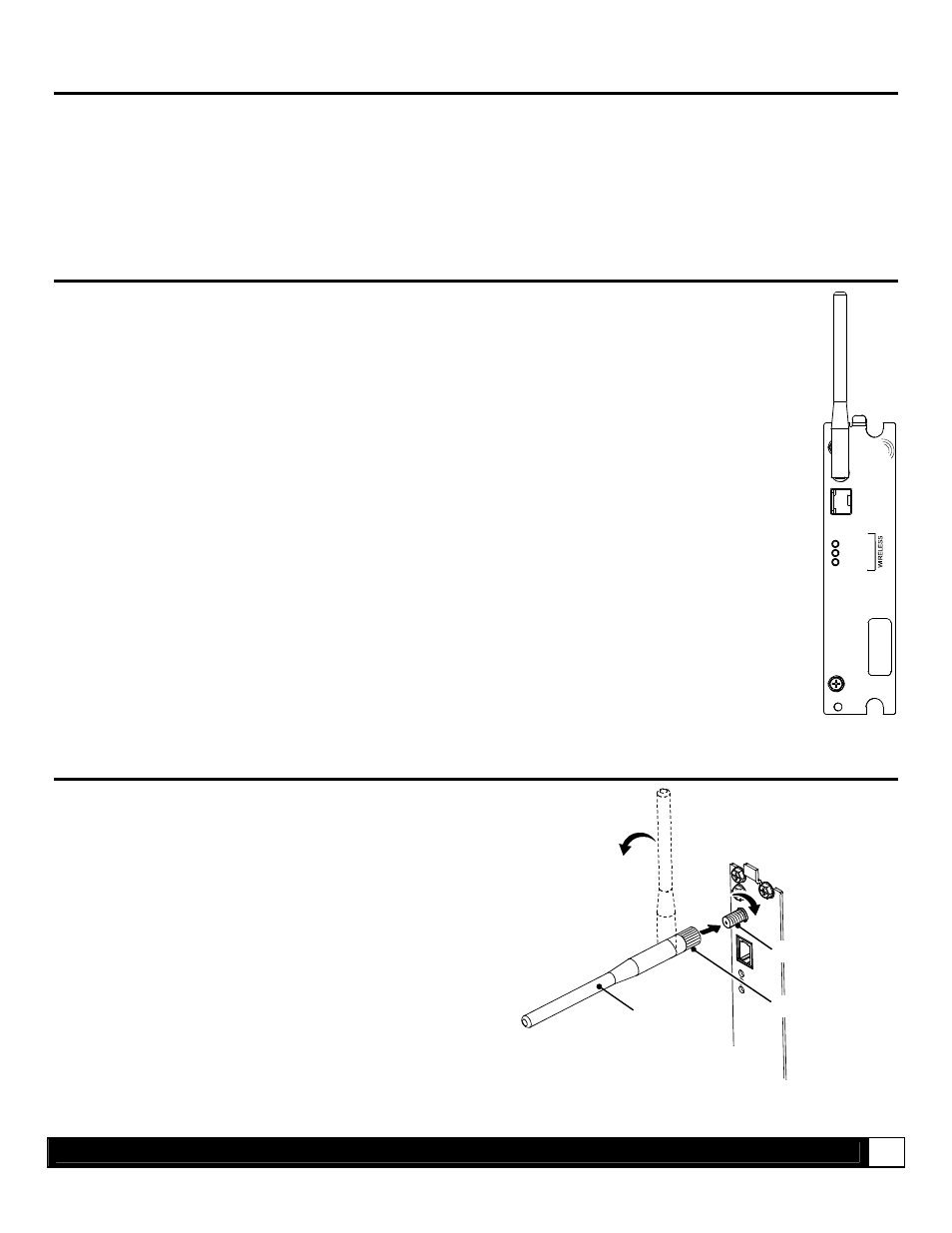

External Hardware Descriptions
The functions of the Interface Card’s external hardware are defined below. Depending on the configuration
of your card some items may not be present.
Connectors
 ANTENNA is used to connect an antenna or coaxial cable for RF reception and transmission via this Multimedia
Communication Exchange (MMCX) Reverse Pin type connector.
 10/100 BaseT is used to connect a 10/100 BaseT Ethernet cable via this RJ45 network connector.
Indicator Lights
 ACTIVITY is a green indicator that flashes when the Card is not connected and scanning. The indicator will turn on when a
connection is made.
 LINK is a yellow indicator that comes on when the Card is associated with an Access Point or Ad-hoc peer.
 DATA is a green indicator that flashes when there is data transmitted between the printer and Host access point.
Label
This Label contains the MAC address of the Radio module on the network card and is not usually needed. The MAC address of the
printer is listed on the printer’s Configuration and Network Report test labels.
II
ANTENNA
LINK
DATA
ACTIVITY
DMXrfNet
Installing the Antenna (wireless equipped cards only)
1. Extend the Antenna then align the Base to the
Connector.
2. Turn the Base clockwise until fully seated and tight on
the Connector.
3. Raise and position the Antenna.
To avoid permenant damage, do not pull on the antenna when
handling the Network Card.
Antenna
Connector
Base
