BROAD SCAN (HD/SDI)
Chapter 4 : FRONT PANEL DISPLAY MENU DESCRIPTION
4-1. INTRODUCTION
The front panel display menu presents 2 modes: the STATUS MODE and the CONTROL MODE.
• The STATUS MODE indicates the input and output status of the device.
• The CONTROL MODE allows selecting and adjusting the parameters of the device.
4-2. CONTROL BUTTONS
The front panel display is controlled by 2 buttons and 1 knob:
knob: • In the CONTROL MODE, turn this knob to scroll thru the different menus.
ENTER button:
• From the STATUS MODE, press this button to enter in the CONTROL MODE.
• From the CONTROL MODE, press this button to confirm a selected item.
EXIT / MENU button:
• From the STATUS MODE, press this button to enter in the CONTROL MODE.
• From the CONTROL MODE, press this button to:
- return to the previous menu without safeguarding the selection.
- return to the STATUS MODE (press several times).

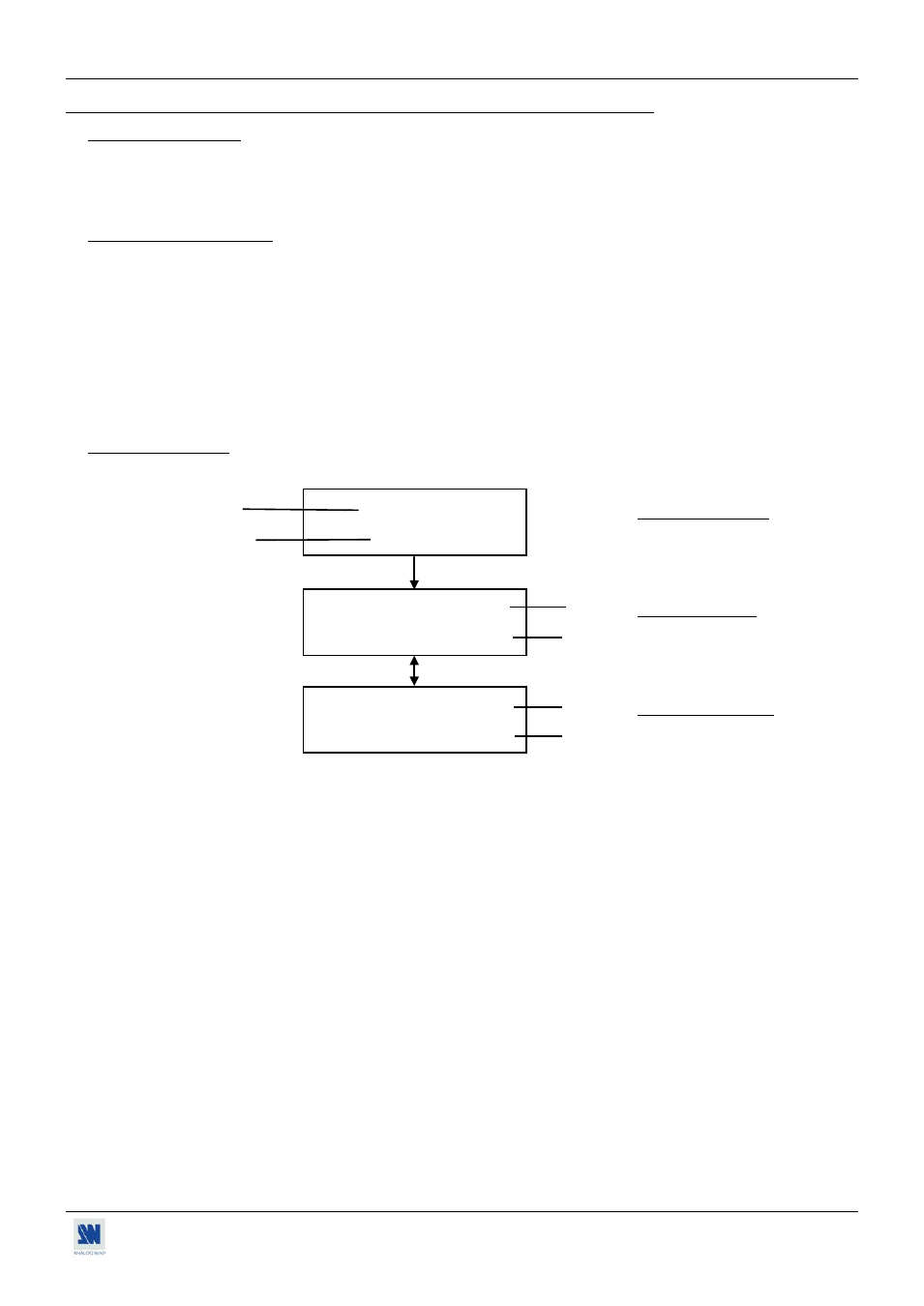

4-3. STATUS MODE
When switching ON, the front panel display shows the product's name and firmware versions as follows:
DEVICE MODEL BHD930-AG DEVICE STATUS
DEVICE VERSION Version _._
Input : SVGA

INPUT STATUS
H = 37.9K V= 60 Hz

Output : NTSC

OUTPUT STATUS
Internal 59.94 
 INPUT FORMAT
 HORIZONTAL FREQUENCY (in kHz) / VERTICAL FREQUENCY (in Hz).
 OUTPUT STANDARD.
 OUTPUT RATE TYPE / OUTPUT FREQUENCY
