BROAD SCAN (HD/SDI)
Chapter 2 : STARTING
2-1. BROAD SCAN CONNECTIONS
 Turn OFF all of your equipment before connecting.
 Connect the AC power supply cord to the BROAD SCAN and to an AC power outlet.
 Connect your computer sources to the COMPUTER INPUT (HD15) connector or the DVI-D INPUT connector.
 As required, connect a control monitor on the MONITOR OUT (HD15 or DVI-D) connector.
NOTE: The analog (RGB) MONITOR OUT is available only if the COMPUTER source is analog.
NOTE: The DVI-D MONITOR OUT is available only if the COMPUTER source is DVI-D.
 Connect your display device (TV monitor, VCR...) to the outputs (analog or SDI*).
 Turn ON the BROAD SCAN (rear panel switch). Then turn ON your input source and then your display devices.
* The SDI outputs are available on BHD930 & BSD830 models only.

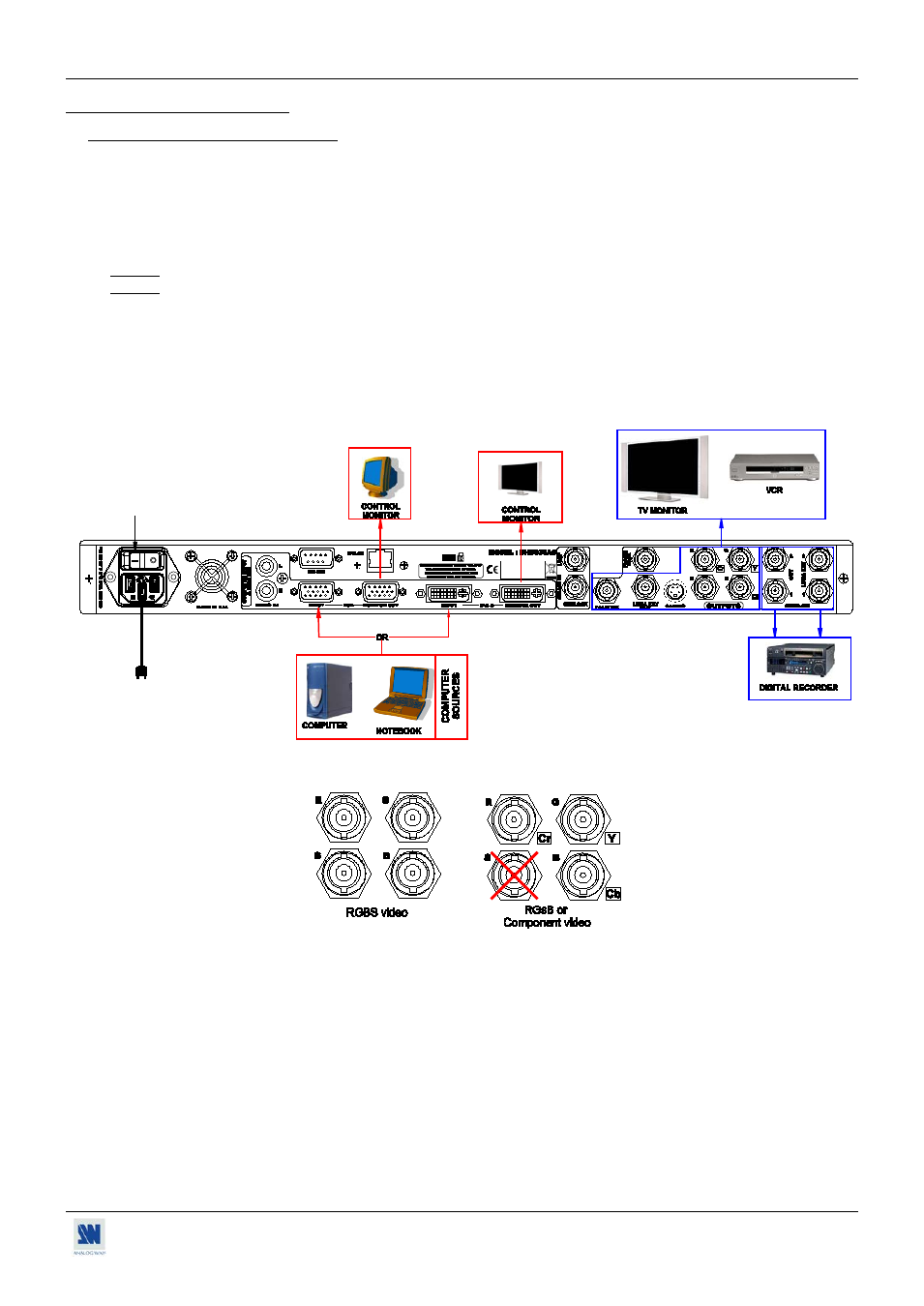

• Example of connection (Model: BHD930-AG):
3
4 5
5 5
4
2
6
• RGB/COMPONENT output connection:
PAGE 15
