BROAD SCAN (HD/SDI)
Chapter 1 : INTRODUCTION (continued)

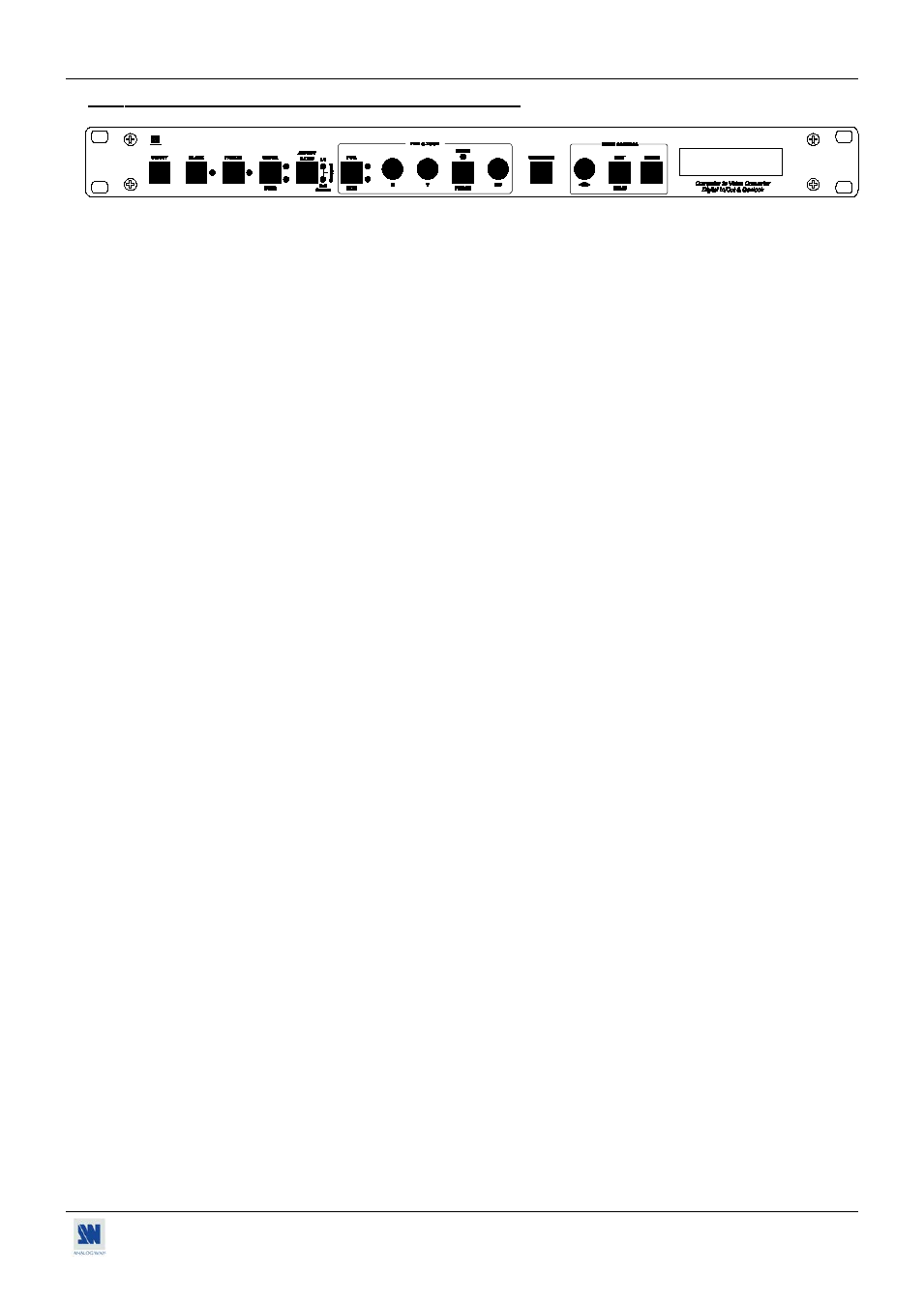

1-10. BROAD SCAN (BSC730) FRONT PANEL DESCRIPTION
ANALOG WAY
R
Broad
Scan
ON / OFF:
Switch ON or OFF the device (Long push).
BLACK:
Allows displaying a black screen onto the output.
FREEZE:
Freezes the displayed output.
UNDER/OVER:
Image mode selection.
ASPECT RATIO:
Aspect ratio selection.
1/1:
The image and aspect ratio of the source are preserved.
Cropped:
The image is resized and the borders are cut to fill full the screen (The aspect ratio is
preserved).
Full Screen:
The image is stretched to fill full the screen without cutting the borders (The aspect ratio is
not preserved).
PAN & ZOOM
POS. SIZE:
Position or Size mode selection.
H:
Horizontal image adjustment.
V:
Vertical image adjustment.
ZOOM:
Zoom mode selection (short push)
FINDER:
Zoom finder (long push– blinking LED) : Preview of the actual part of the picture to be
zoomed.
H/V:
Horizontal & Vertical (simultaneously) image adjustment.
CENTERING:
Image automatic centering.
MENU CONTROL
Allows scrolling thru the different menus.
ENTER:
Validates a selected item.
EXIT MENU:
Allows to exit from a LCD menu.
