Eikos LE - Ref. EKS400

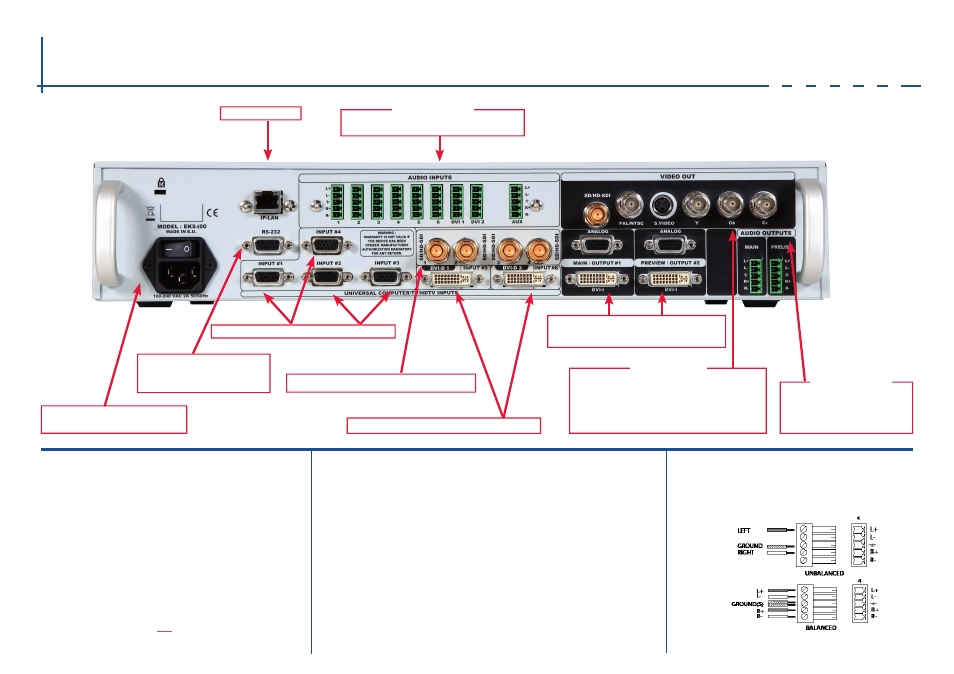

Rear Panel Description
VIDEO OUT
AUDIO OUTPUT
AUDIO INPUT
RS-232 communication port
on a DB9 female connector or
TCP/IP on RJ45 connector
Power supply: IEC/EN/UL/CSA
60950-1, internal, autoswitchable
Universal Analog Computer/TV/HDTV inputs
SD-SDI/HD-SDI inputs #1 to #4: female BNC
DVI inputs #1 & #2: female DVI-I (digital pins)
Outputs #1 (Main) & #2 (Preview): female
HD15, DVI-I (analog pins)
Connectors:
1x BNC-F: SD/HD-SDI (with audio embedded)
3x BNC-F: Y_Cb_Cr
1x Mini Din 4: S. Video
1x BNC-F: Composite video PAL/NTSC
Balanced or unbalanced mono/
stereo Output
(all Pin MCO mode connector)
IP-LAN connector
Balanced or unbalanced mono/stereo inputs
(all pin MCO male connectors)
O P E R AT I O N S O V E RV I E W
WORKING IN MIXER MODE
1-
Select an
input
.
2-
On the preview screen, the input appears
3-
Select an
EFFECT
(open/close)
4-
Press
TAKE
to view the result on the Main screen
WORKING WITH PIPs IN MIXER MODE
1- Press the
PIP2
button. On the preview screen, the PIP (layer) appears as a
color rectangle
2- Select an input. On the preview screen, the input appears in the layer rectangle
3- Adjust the PIP (layer) with
ADJUSTMENT
button (Pos & Size or Zoom by
Toggle function)
4- Select a transition (open/close) or an effect into Layer menu [Home menu]
5- Press
TAKE
to view the result on the main screen
6- To remove layer, press
BLACK
then
TAKE
7- For another PIP setup, repeat from step #1
A U D I O C O N N E C T I O N S
MCO male connectors
Inputs #1 to #6: Balanced & unbalanced connection
Inputs DVI #1 to DVI #2: Balanced &unbalanced connection
Input (AUX): Balanced & unbalanced connection
Outputs #1 to #2: Balanced &unbalanced connection
H O M E M E N U
-
MODE :
select to choose which mode the Eikos LE will work in (Mixer or Matrix Mode).
-
INPUT :
select to configure the 12 individual input types and resolutions.
-
MAIN OUT :
in Mixer mode, select to set the output types and resolutions of the Main output.
-
OUTPUT 1 :
in Matrix mode, select to set the output types and resolutions of Output 1.
-
PREVIEW OUT :
in Mixer mode, select to set the output types and resolutions of the Preview output.
-
OUTPUT 2 :
in Matrix mode, select to set the output types and resolutions of Output 2.
-
VIDEO OUT :
select to configure Video output card settings.
-
PRESET :
select to store and use presets.
-
IMAGE :
select to change source image settings of an input.
-
KEYING/TITLING :
select to access keying and titling controls and parameters when video layer
is selected.
-
LAYER :
select to adjust layer size, position, border, transparency or transitions.
-
LOGO/FRAME :
select to store (record), use and manage logos and frames into the Eikos LE.
-
AUDIO :
select to access all audio input and output parameters.
-
CONTROL :
select to access device software information, LAN settings, reset factory settings,
amongst other user oriented functions (see next page).
-
VIRTUAL T-Bar :
select to access the Virtual T-Bar.
