1 - 2 8

1 - 2 8

1 - 2 8

1 - 2 8

1 - 2 8

C h a p t e r 1 : P r o d u c t i n t r o d u c t i o n

C h a p t e r 1 : P r o d u c t i n t r o d u c t i o n

C h a p t e r 1 : P r o d u c t i n t r o d u c t i o n

C h a p t e r 1 : P r o d u c t i n t r o d u c t i o n

C h a p t e r 1 : P r o d u c t i n t r o d u c t i o n

5 .

5 .

5 .

5 .

5 .

C P U , C h a s s i s , a n d P o w e r F a n c o n n e c t o r s

C P U , C h a s s i s , a n d P o w e r F a n c o n n e c t o r s

C P U , C h a s s i s , a n d P o w e r F a n c o n n e c t o r s

C P U , C h a s s i s , a n d P o w e r F a n c o n n e c t o r s

C P U , C h a s s i s , a n d P o w e r F a n c o n n e c t o r s
( 4 - p i n C P U _ F A N , 3 - p i n P W R _ F A N , 3 - p i n C H A _ F A N 1 , 3 - p i n

( 4 - p i n C P U _ F A N , 3 - p i n P W R _ F A N , 3 - p i n C H A _ F A N 1 , 3 - p i n

( 4 - p i n C P U _ F A N , 3 - p i n P W R _ F A N , 3 - p i n C H A _ F A N 1 , 3 - p i n

( 4 - p i n C P U _ F A N , 3 - p i n P W R _ F A N , 3 - p i n C H A _ F A N 1 , 3 - p i n

( 4 - p i n C P U _ F A N , 3 - p i n P W R _ F A N , 3 - p i n C H A _ F A N 1 , 3 - p i n
C H A _ F A N 2 )

C H A _ F A N 2 )

C H A _ F A N 2 )

C H A _ F A N 2 )

C H A _ F A N 2 )

The fan connectors support cooling fans of 350mA~740mA (8.88W
max.) or a total of 1A~2.22A (26.64W max.) at +12V. Connect the fan
cables to the fan connectors on the motherboard, making sure that the
black wire of each cable matches the ground pin of the connector.

Do not forget to connect the fan cables to the fan connectors.
Insufficient air flow inside the system may damage the motherboard
components. These are not jumpers! DO NOT place jumper caps on the
fan connectors.

M2NPV-VM

®

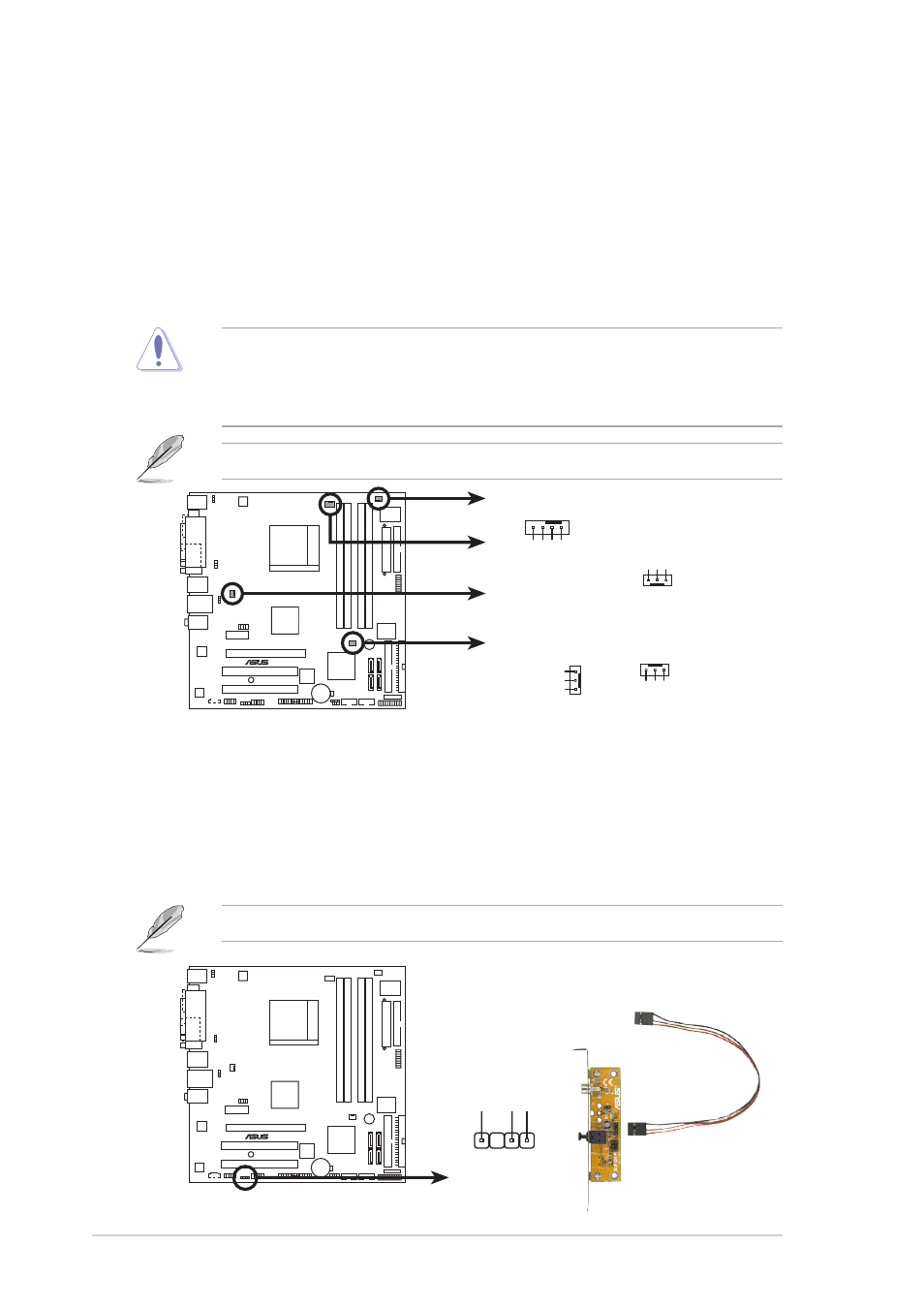

M2NPV-VM Fan connectors

PWR_FAN

CHA_FAN1

GND

Rotation

+12V

CPU_FAN

CHA_FAN2

GND

Rotation

+12V

CHA_FAN2

GND

Rotation

+12V

CHA_FAN1

PWR_FAN

GND

CPU F

AN PWR

CPU F

AN IN

CPU F

AN PWM

CPU_FAN

M2NPV-VM

®

M2NPV-VM Digital audio connector

+5V

SPDIFOUT

GND

SPDIF_OUT

6 .

6 .

6 .

6 .

6 .

D i g i t a l a u d i o c o n n e c t o r ( 4 - 1 p i n S P D I F _ O U T )

D i g i t a l a u d i o c o n n e c t o r ( 4 - 1 p i n S P D I F _ O U T )

D i g i t a l a u d i o c o n n e c t o r ( 4 - 1 p i n S P D I F _ O U T )

D i g i t a l a u d i o c o n n e c t o r ( 4 - 1 p i n S P D I F _ O U T )

D i g i t a l a u d i o c o n n e c t o r ( 4 - 1 p i n S P D I F _ O U T )
This connector is for an additional Sony/Philips Digital Interface
(S/PDIF) port(s). Connect the S/PDIF module cable to this connector,
then install the module to a slot opening at the back of the system
chassis.

The S/PDIF module is purchased separately.

Only CPU Fan and Chassis Fan1, Fan2 support Q-Fan 2.
