Cable management – CHIEF K-Series User Manual
Page 12
Model: K-Series
Installation Instructions
12

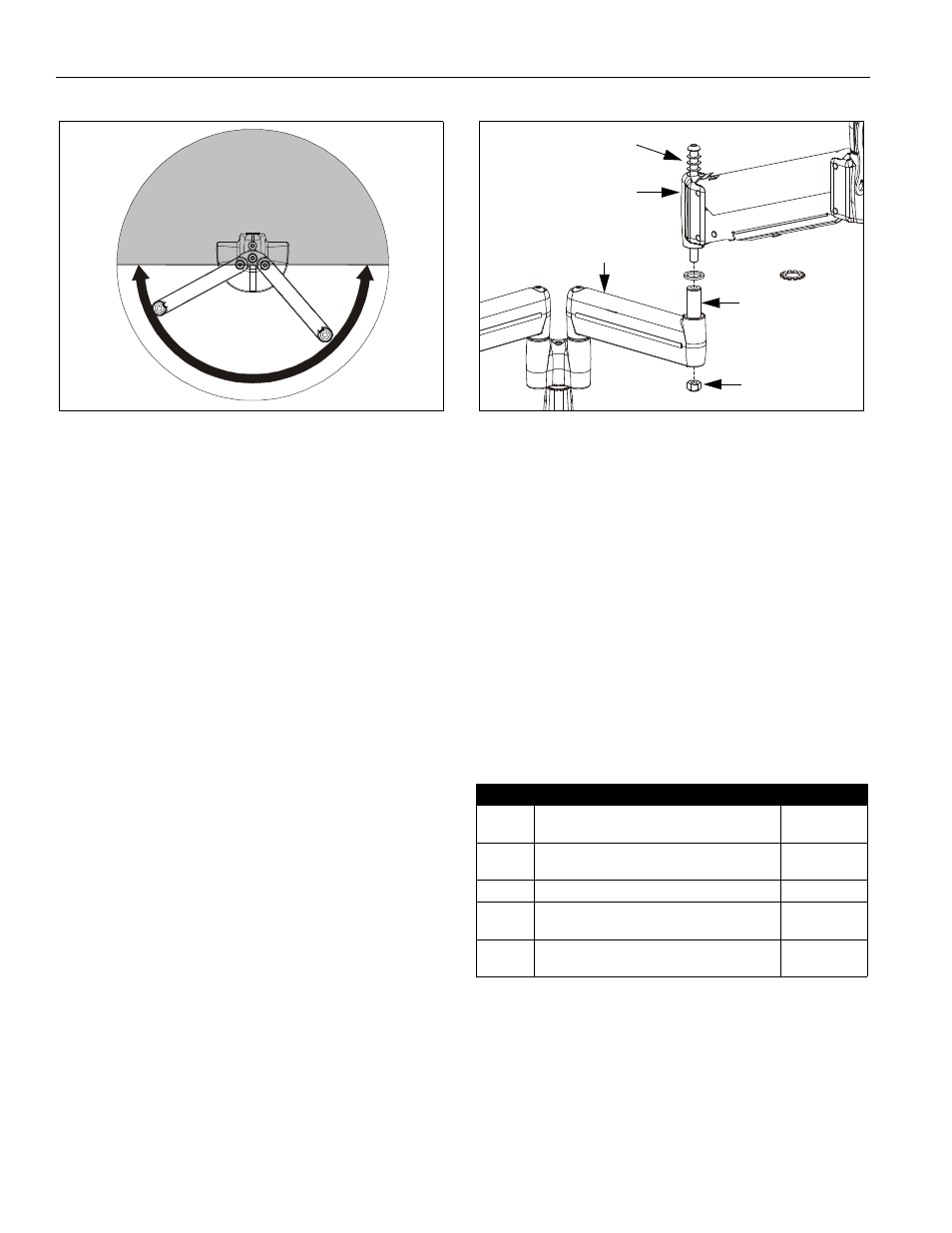

Figure 19: Allowable Arm Area
7.
Repeat Steps 2. through 6. for second mount arm
assembly (10).
8.
If desired, proceed to "MODIFICATION." Otherwise,
proceed to:
•
"CABLE MANAGEMENT" (for display with
RECESSED mounting holes), or to
•
"DISPLAY INSTALLATION" (for all other display
configurations).
MODIFICATION
If desired, each arm assembly (10) may be modified to
prevent movement of the outer arm relative to the inner
arm (without loosening the adjustment screw).
NOTE: Spacer (shipped configuration) will allow limited
movement of outer arm relative to inner arm,
dependent upon tension of screw. Washer (80)
will lock arms together. See "ADJUSTMENT" for
detail.
1.
Using 3/16" hex key, loosen screw until nut can be
removed (See Figure 20). Retain nut. Screw and
washers may remain in outer arm.
Figure 20: Multi-Dual Arm Modification
2.
Lift outer arm from pin (with screw and washers) and
place on protective surface.
3.
Remove spacer from pin (See Figure 20).
4.
Install washer (80) on pin (See Figure 20).
5.
Re-install outer arm (with screw and washers) on pin
(See Figure 20).
6.
Insert and hold nut in lower bore of inner arm (See
Figure 20).
7.
Tighten screw as required using 3/16" hex key (See
Figure 20).
8.
Proceed to "CABLE MANAGEMENT" (for display with
RECESSED mounting holes), or to "DISPLAY
INSTALLATION" (for all other display configurations).
CABLE MANAGEMENT
1.
Attach all cables to display.
2.
Open the cable management bracket (on height-
adjustable arm only) by sliding it towards the edge of
the arm (See Figure 21).
NOTE: If necessary, cable management bracket attach
screws may be loosened using hex key (30).
DO NOT POSITION
EITHER ARM ASSEMBLY
ALLOWABLE
AREA
IN GRAY SHADED AREA
Item
Description
Qty
10
COVER, Arm
1 per static
arm
20
SCREW, Phillips Flat Machine, 8-32 x 3/8"
2 per static
arm
30
WRENCH, Hex, 3/32" (provided)
1
40
CABLE TIE, (only provided with certain
models)
2 or 4
50
STRAIN RELIEF TIE (only provided with
certain models)
2 or 4
spacer or
80
nut
Outer arm
pin
Screw & washers
Inner arm
