General description
Optional accessories:
-
photocell (18,000 RPM) with upright and magnetic base
-
10m-long extension cable for transducers
-
10m-long extension cable for standard photocell
-
CEMB N-Pro software for saving, managing and printing data.

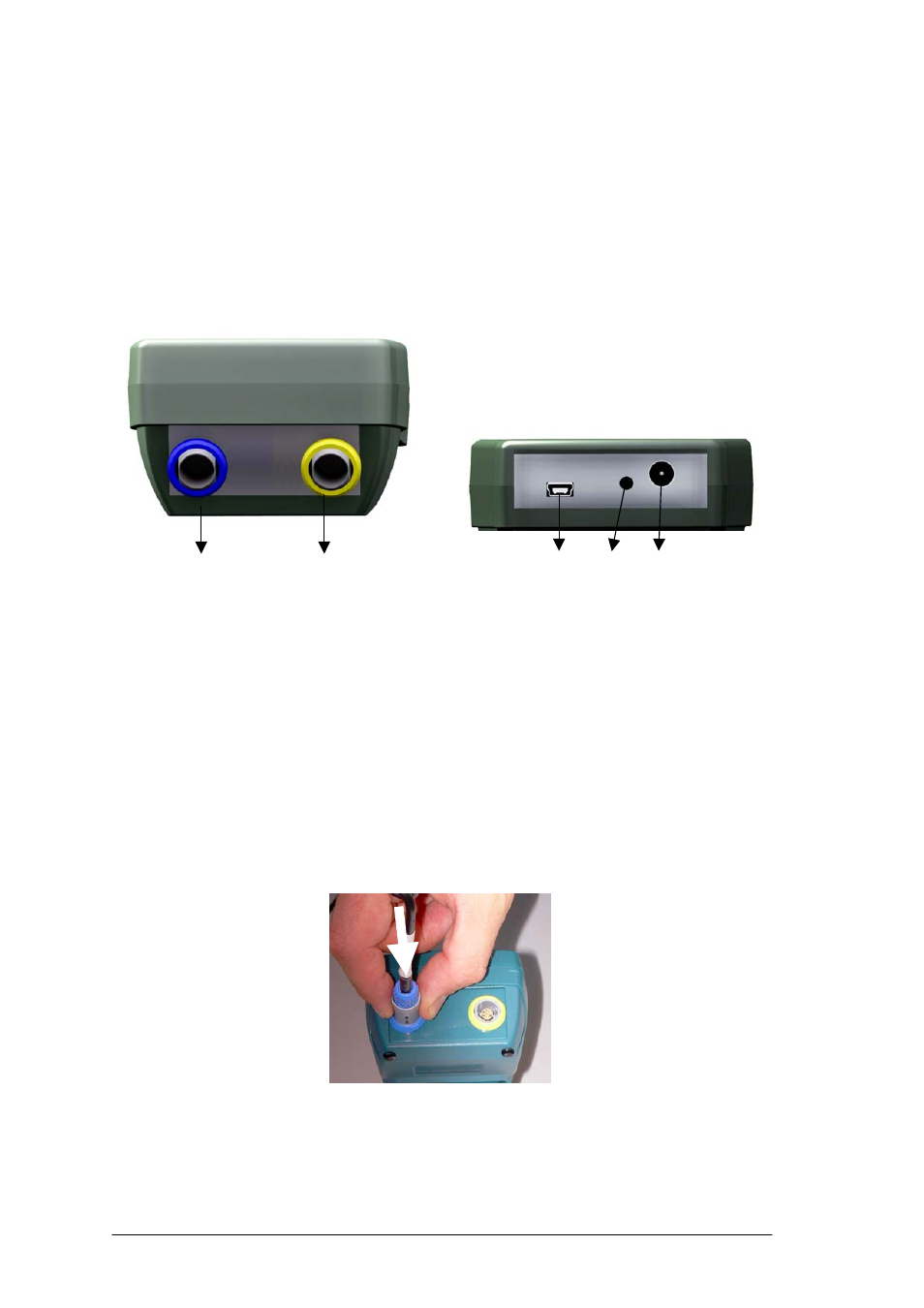

Inputs
1
2
3
4
5
1 – sensor input
2 – photocell input for velocity measurement
3 – type B mini USB port for connection to PC
4 – instrument reset button
5
– battery charger connector
The sensor and photocell can be connected by simply inserting the connector into the
relative socket, pushing it in until a "click" is heard; make sure that the safety connection is
aligned correctly, as shown in the illustration.
