CEMB USA C72_2SE (C) - Manual (Page 20)

I 0391 - 20 I 0391 - 21
20
dI
dE
aI
aE
a
b
d
GB GB

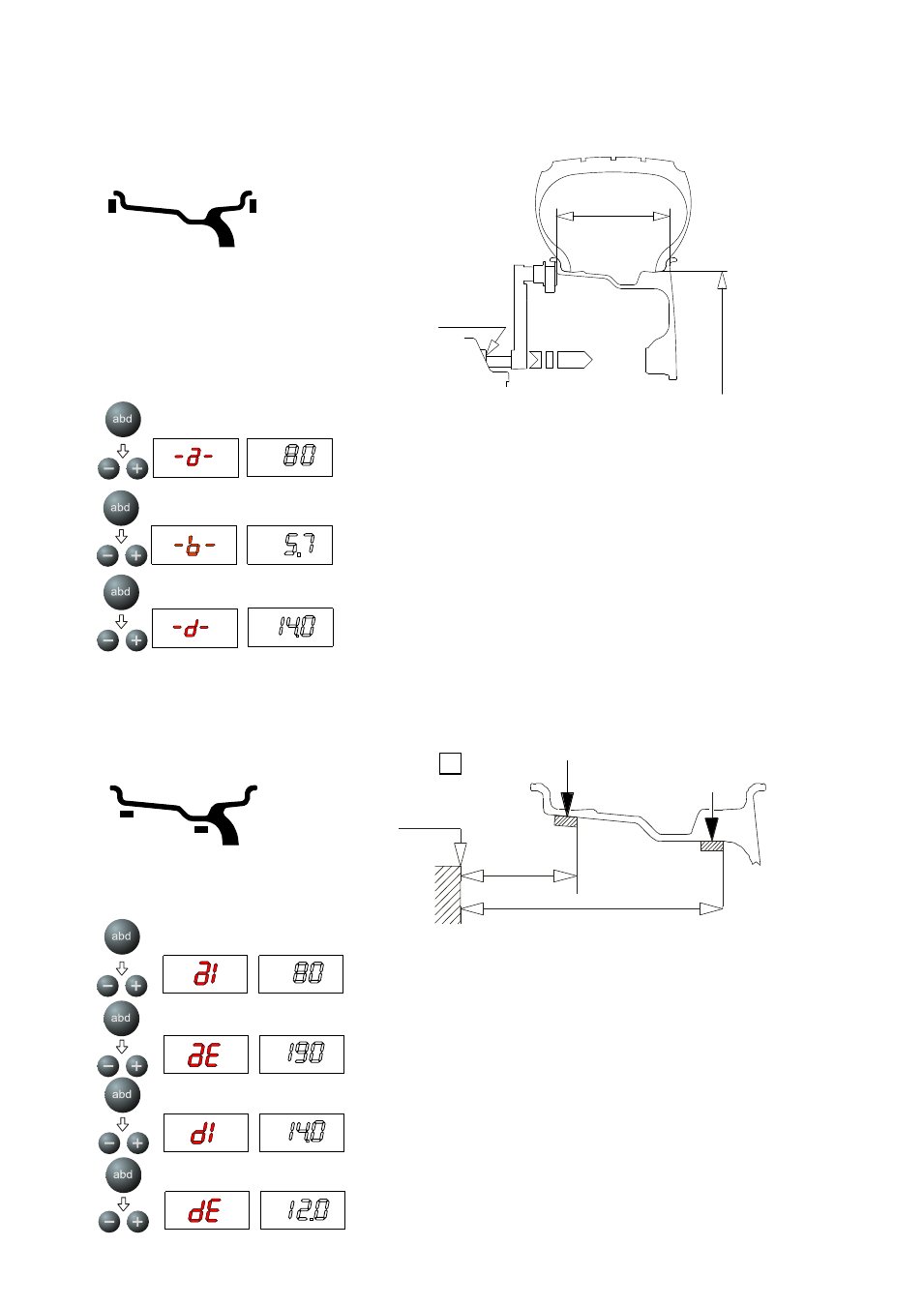

6.3 - Manual dimension presetting (Use only in particular cases or for test)
6.3.1 - Steel wheel rims (use for setting dimensions in AUTOCALIBRATION )
- Measuring:
- Setting:
- Set the distance “a ” between the inside of the wheel and the machine
- Set the nominal width, normally indicated on the rim, or measure the
width “b” using the caliper gauge supplied (see fig. 8e).
- Set the nominal diameter “d” indicated on the tyre.
N.B.: This setting is also valid for the correction modes
indicated at “ AUTOMATIC SETTING OF WHEEL DIMENSIONS ”.
6.3.2 - ALUS rims
- Measuring:
- Setting:
Note: not setting dE as it is automatic, dE = dI - 1”.
0 gauge
