Connect Load Cells to J-Box

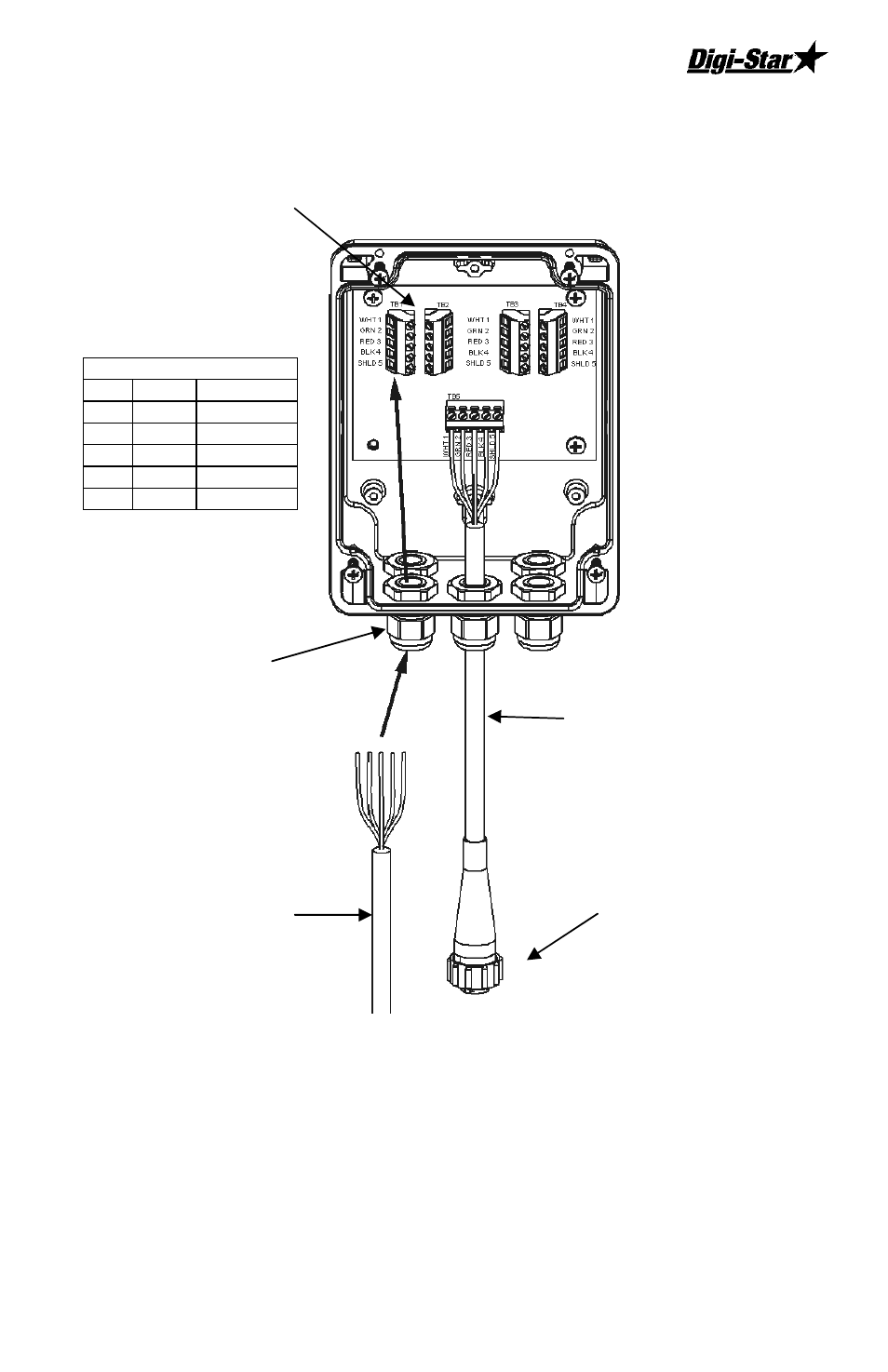

J-Box Connections
Connect load cell
wires to terminal
blocks. See Wire
Color Key
J-Box Illustrated for 4
Load Cell Installation
Tighten Nuts
Load Cell Cable
J-Box Cable
Connect to Indicator
bottom Panel.
Wire Color Key
Color Description
1 White Signal +
2 Green Signal -
3 Red Excitation +
4 Black Excitation -
5 Shield Shield
