TSM‐11 OWNERS MANUAL V1.4
Page 9 of 22

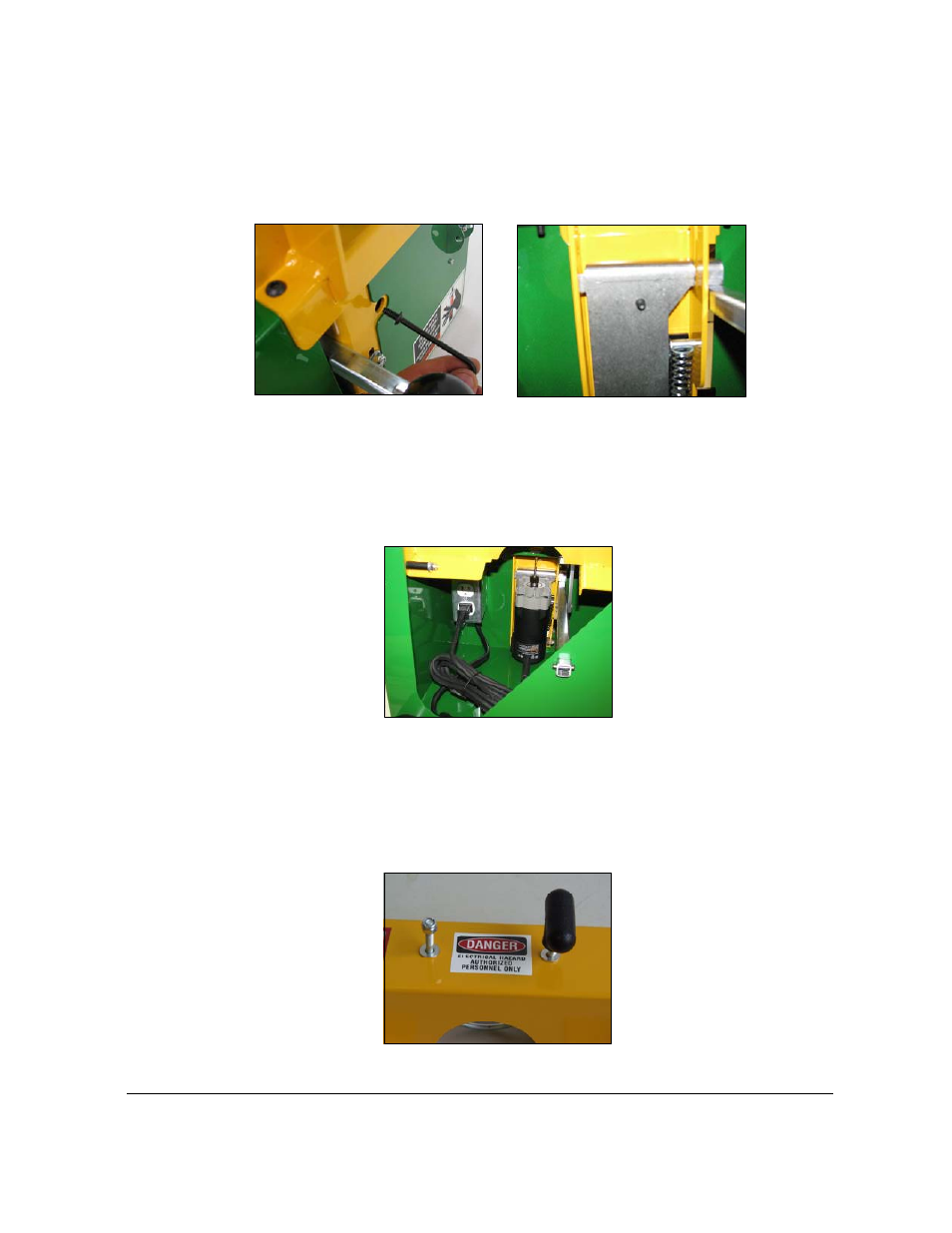

Fig 9
Fig 10
4.
Carefully insert the ¼” -20 x ½” button head screw into the hole at the top of the case
using the supplied 5/32” hex key. The threaded portion of the screw should be fully
inserted through the stainless steel motor carriage.
5.
While holding constant pressure on the screw head to prevent it from falling out, position
the router motor in the carriage as shown and tighten the screw. Plug the motor into the
lower outlet.
6.
Install the U-bolt in the Router Carriage as shown using (1) ¼” washers and (2) ¼”-20
nylon locknut (1) ¼ - 20 bar knob. Do not tighten at this time.
Fig 8
Fig 7
