CASTLE, INC
TSM‐11 OWNERS MANUAL V1.4
Page 10 of 22

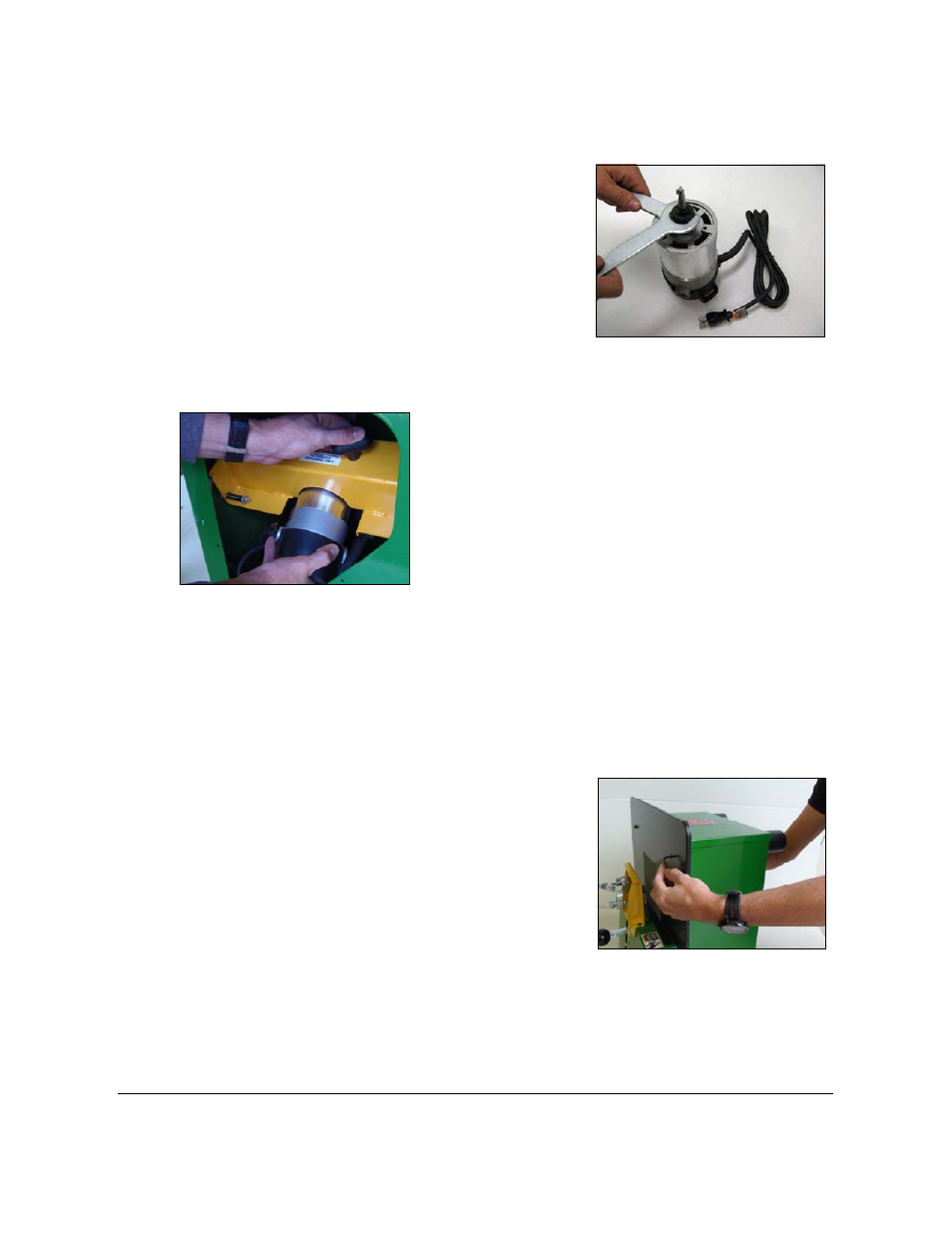

Fig 11
7.
Unpack the Porter Cable router motor, collet wrenches and 3/8 collet. DO NOT UNTIE
THE POWER CORD! Screw the 3/8” collet onto the motor and insert the Castle
Premium carbide router bit until it is fully seated.
Secure the router bit with the collet wrenches. Toggle
the motor switch to the “ON” position.
8.
Install the router in the yellow carriage,
carefully noting the orientation depicted in Fig
12. With the motor firmly engaged against
the carriage, tighten the locknuts with a 7/16”
wrench and the bar knob by hand. Alternate
back and forth to insure even thread
engagement. Plug the router into the
remaining outlet.
9.
Position the work top as shown, with the grey friction pad directly under the clamp-guard.
Using (4) ¼”-20 x 1” flathead machine screws, and (4) ¼”-20 nylon locknuts, fasten the
work top to the machine. Use the supplied 5/32” hex
key and your 7/16” wrench.
Fig 12
Fig 13
