4 Operating Instructions
1. Check to be sure the switch on top of the machine is in the OFF position and then plug
the TSM-11 into a 110 volt grounded power supply.
2. Place material to be pocketed on the work table under the clamp and squarely against
the rear face.
3. Push forward on clamp lever (red handle). Confirm that the clamp is secure by manually
pulling on the material. If material is loose, adjust the foot on the clamp as necessary to
assure the material is held securely.
Note:
No tools are necessary to adjust the clamp foot, simply hold the lower nut
between your fingers, and loosen the wing nut with your other hand.
4. To operate, move the power switch to the ON
position. Both motors should start. It may be
necessary to toggle the individual motor switches. If
not done at time of installation.

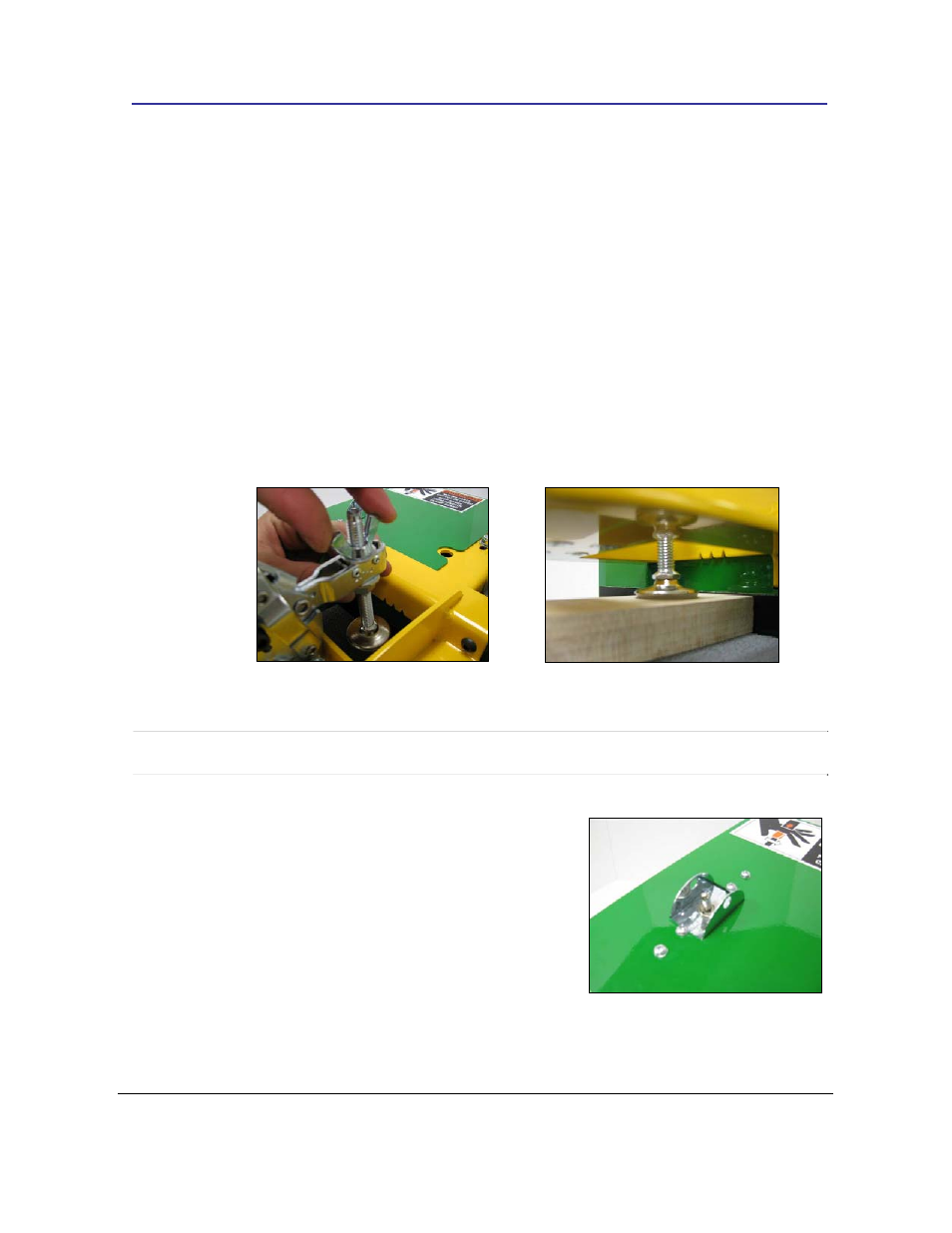

Fig 17
