CASTLE, INC TSM‐11 OWNERS MANUAL V1.4 Page 8 of 22

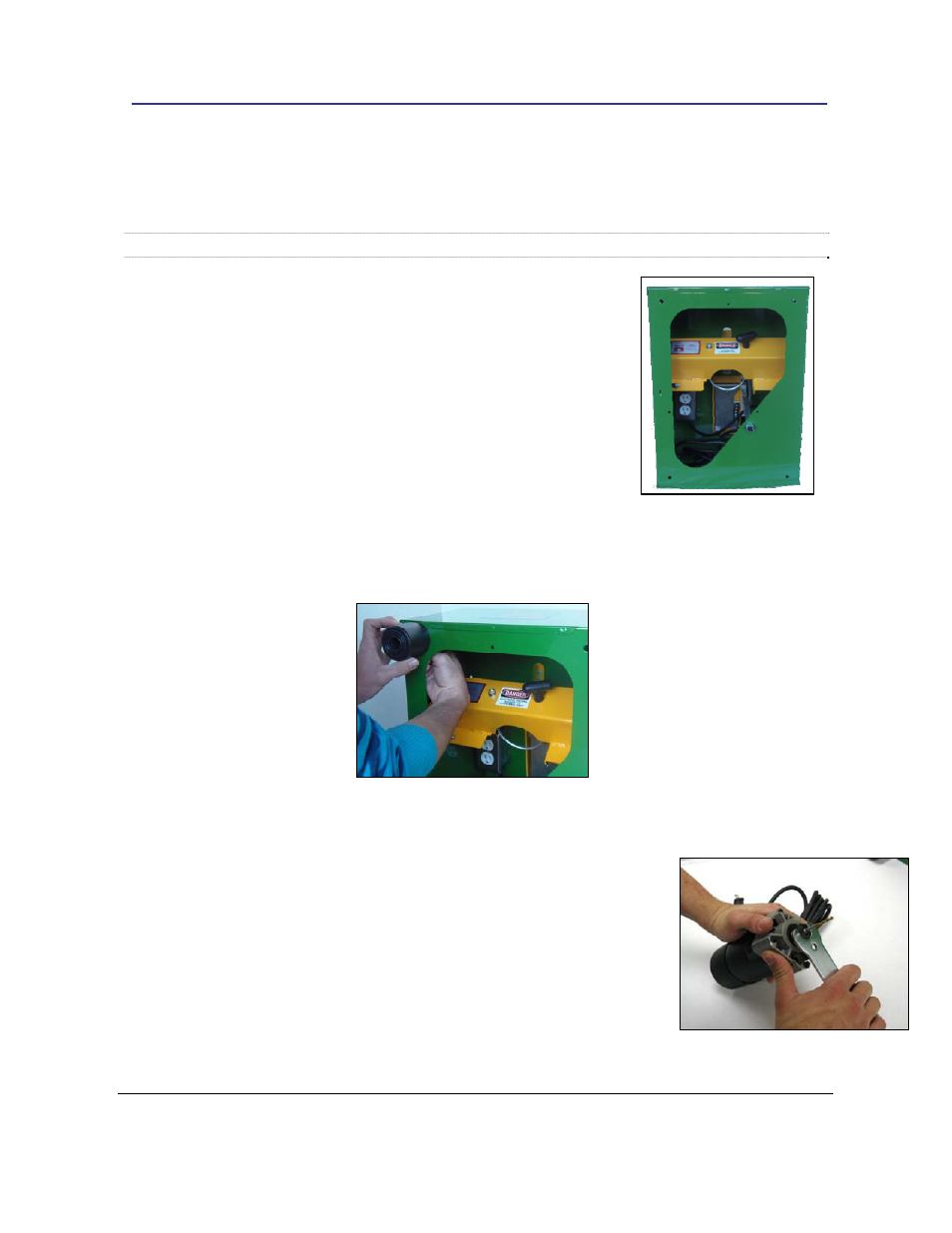

Fig 4
3 Setting Up Your TSM-11
Caution: Always use eye and hearing protection when operating power equipment.
1. Remove the machine from the carton and plastic over-wrap,
and place on its back as shown. Be careful to place it on a
clean surface free of debris to avoid damage to the powder
coated finish.
2. Secure the (4) non-slip machine feet to the machine using a ½” wrench and (4) 5/16”-18
nuts.
3. Unpack the Porter Cable trimmer motor and collet. DO NOT UNTIE THE POWER CORD!
Insert the Castle Premium drill bit until the tapered portion of the
shank is approximately flush with the collet opening. While holding the
spindle lock button, secure the drill bit with the collet wrench. Toggle
the motor switch to the “ON” position.
Fig 5
Fig 6
