Tuff Stuff RLP-200 Leg Press/Hack Squat - Manual (Page 7)

43
14
35
43
35
14
6
18
43
35
14
6
19
10
2
32
32 35
43
21
43
35
43
5
35
43
35 43
54
40
35
43
7
35
43
54
55
13
16
11
17

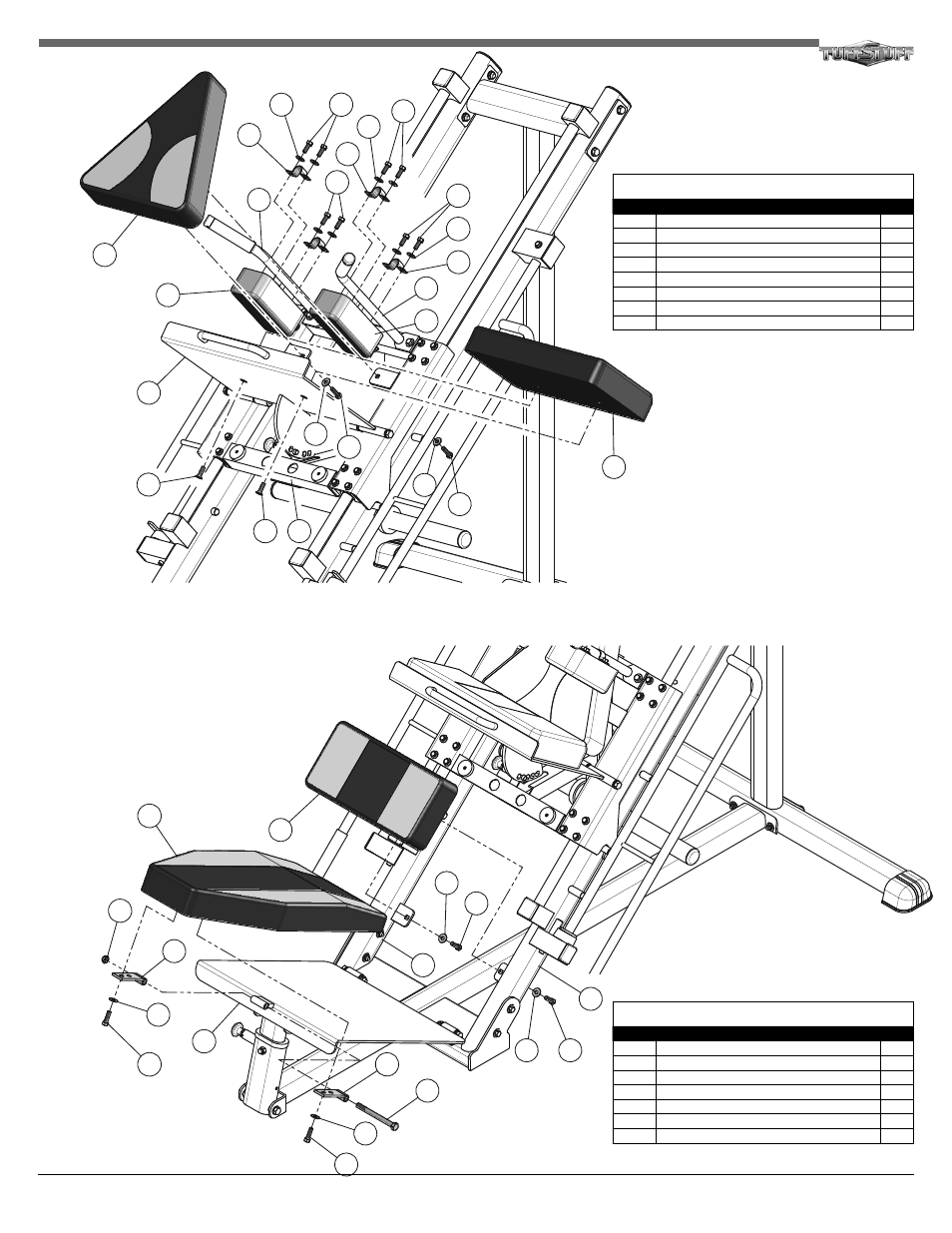

7 RLP-200 Leg Press / Hack Squat
Step 7 Assembly List
Item # Description Qty.
10 HEAD SUPPORT PAD 1
14 PAD BRACKET 4
18 SHOULDER PAD LT SIDE 1
19 SHOULDER PAD RT SIDE 1
21 UPPER BACK PAD 1
32 FLAT HEAD SCREW 3/8-16 X 1 1/4 2
35 FLAT WASHER SAE 3/8” 10
43 HEX HEAD CAP SCREW 3/8-16 X 1 1/4 10
Step 8 Assembly List
Item # Description Qty.
13 LOWER BACK PAD 1
17 SEAT PAD 1
35 FLAT WASHER SAE 3/8” 4
40 HEX HEAD CAP SCREW 1/2-13 X 5 1/2 1
43 HEX HEAD CAP SCREW 3/8-16 X 1 1/4 4
54 METAL HINGE 2
55 NYLON INSERT JAM LOCK NUT 1/2-13 1
