Tuff Stuff RLP-200 Leg Press/Hack Squat - Manual (Page 4)

34
34
41
55
55
55
39
4 41
34
34
55
7
39
3
1
57
15
35 47
35
57
35
56
35
56
4

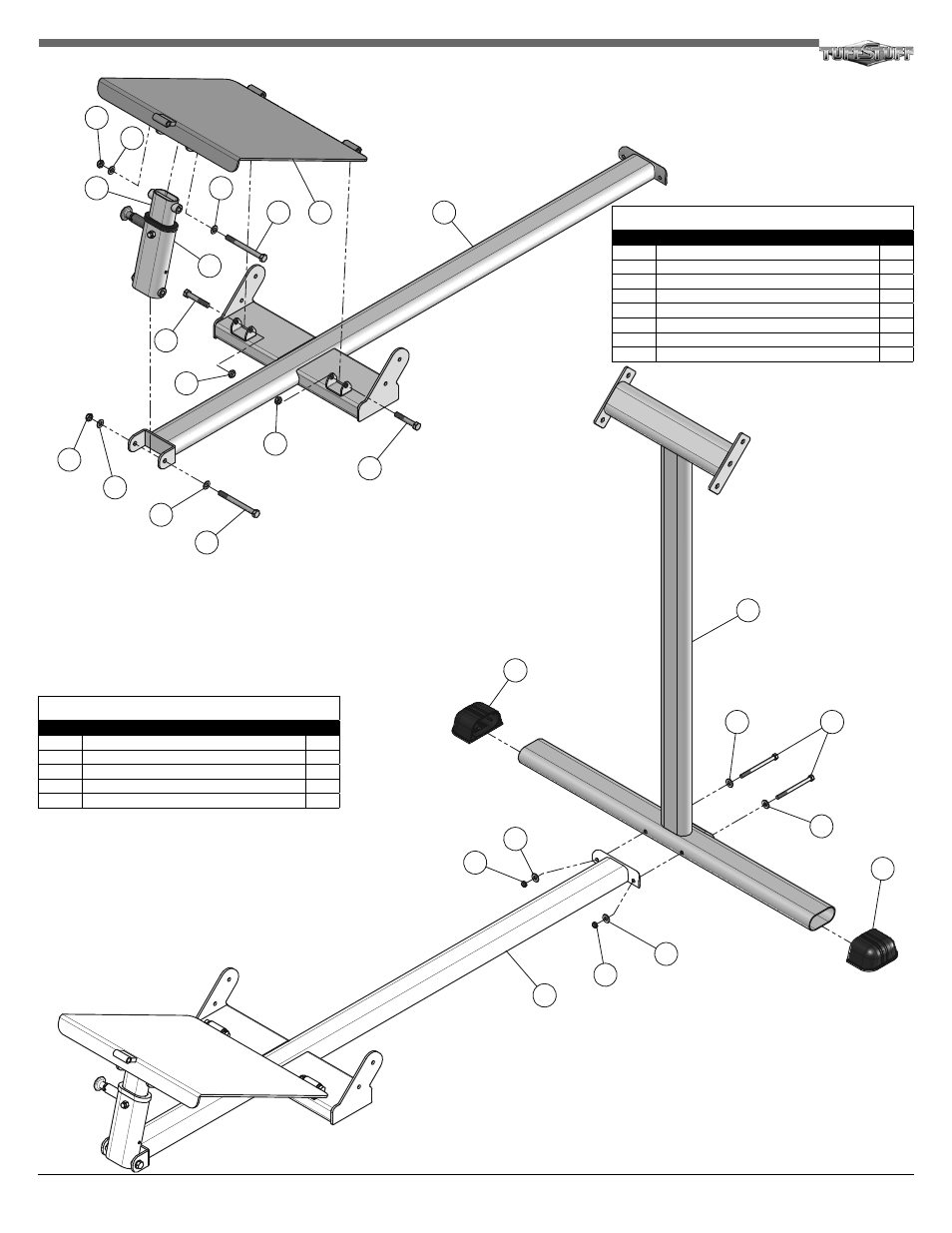

Step 1 Assembly List
Item # Description Qty.
1 ADJUSTABLE CHROME TUBE 1
4 BASE FRAME 1
3 ADJUSTMENT TUBE HOUSING 1
7 HACK SQUAT FOOT PLATE 1
34 FLAT WASHER SAE 1/2” 4
39 HEX HEAD CAP SCREW 1/2-13 X 3 2
41 HEX HEAD CAP SCREW 1/2-13 X 5 5/16 2
55 NYLON INSERT JAM LOCK NUT 1/2-13 4
Step 2 Assembly List
Item # Description Qty.
15 REAR FRAME 1
35 FLAT WASHER SAE 3/8” 4
47 HEX HEAD CAP SCREW 3/8-16 X 5 2
56 NYLON INSERT JAM LOCK NUT 3/8-16 2
57 PLASTIC ELLIPTICAL SHOE 2
4 RLP-200 Leg Press / Hack Squat
